Remove a Processor Module or Processor Filler Module

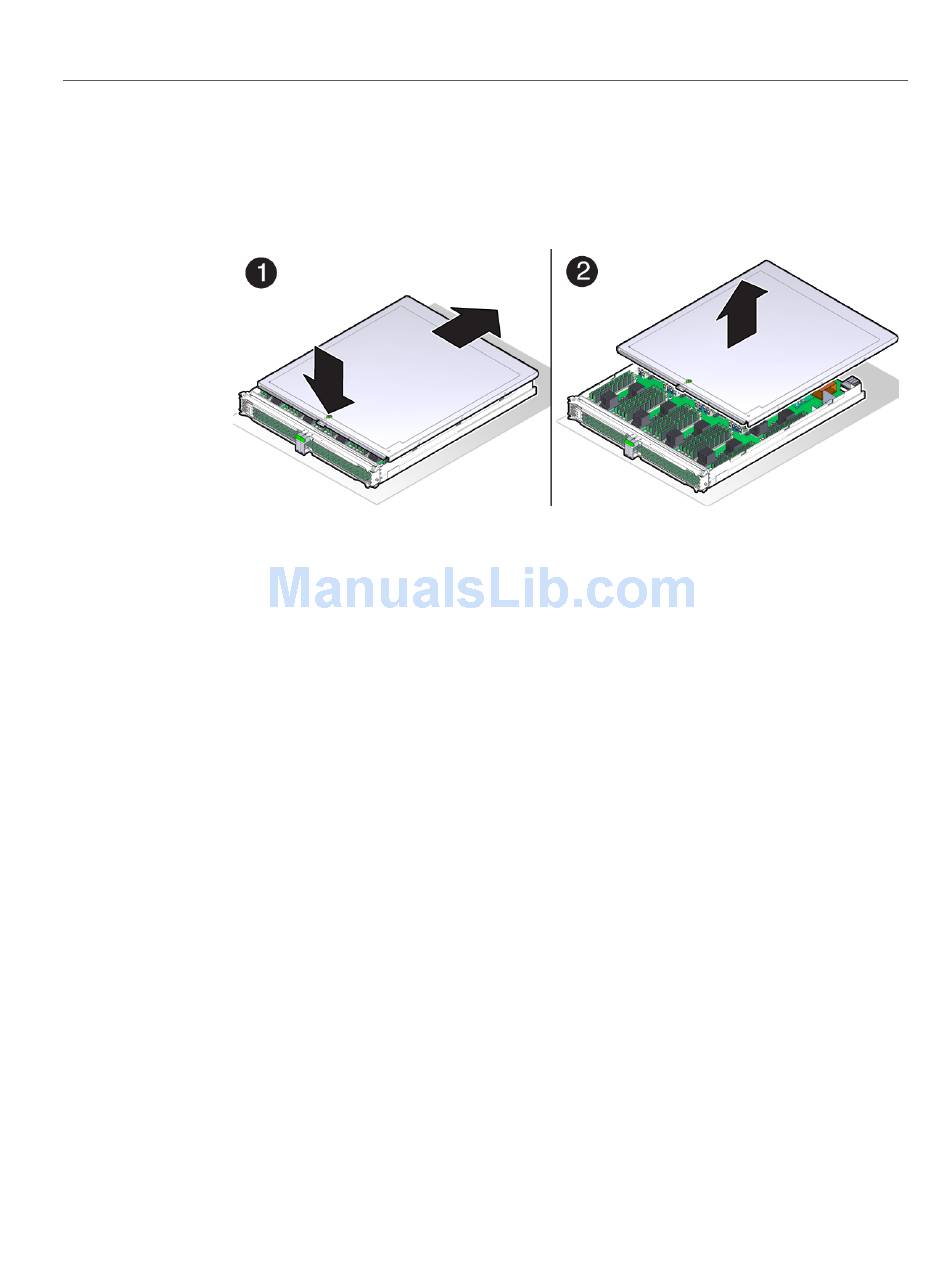

a. Press down on the green button at the top of the cover to disengage the
cover from the processor module or modules.
b. Keeping the button pressed down, push the cover toward the rear of the
processor module, and lift the cover up and away from the processor
module.
9. Determine your next step:
■ If you are replacing DIMMs, see
If you are installing new processor modules to upgrade the server, return to
■
"Server Upgrade Process" on page
If you are replacing a faulty processor module, follow these steps:
■
a.
b.
c.
66 SPARC T5-8 Server Service Manual • November 2015
Remove all of the DIMMs from the faulty processor module, and set
them in a safe place.
See "Remove a DIMM or DIMM Filler Panel" on page
Install the DIMMs into the new processor module.
See "Install a DIMM" on page
Install the processor module.
See "Install a Processor Module or Processor Filler Module" on page
"Servicing DIMMs".
59.
78.
76.
67.
