Gap Sensing

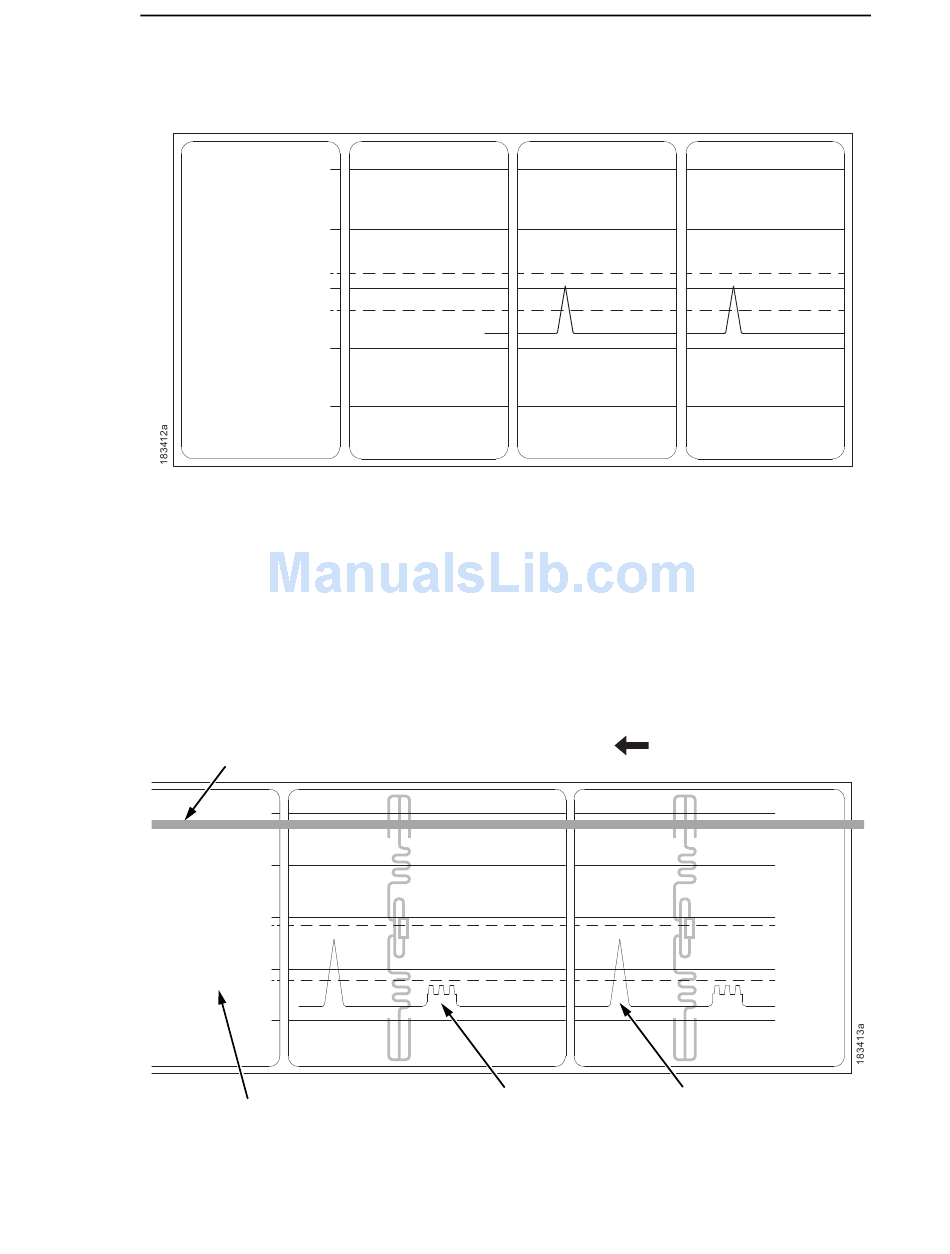

This figure shows a Media Profile printout of a smart label where Gap/Mark
Sensor is set to Gap in the CALIBRATE CTRL menu.
In this example, the gap threshold value the printer selected (represented by
the Gap/Mark dotted line) is too close to the amplitude of the antenna pulse.
This may cause the printer to falsely use the antenna as the gap (top-of-form).
Media Sensor
Position
1023
0767
0511
Paper Out(441)
0255
Gap(209)
0000
Indicates Type of Gap/Mark
Sensing Selected
Figure 1. Media Profile Printout
Detected Amplitude
of the Antenna
Running Media Profile
FEED
Detected Amplitude
of the Gap
