Appendix D

Installing the Cutter

Installing the Cutter
RJ-11 Receptacle
RJ-11 Connector
Screw (2)
Metal Tab (2)
Magnetic Catch (2)
1. Plug the RJ-11 connector into the RJ-11 receptacle.
2. Pull the metal tabs from the magnetic catches and swing open the cutter
assembly mounting bracket from the cutter assembly.
WARNING
The cutter blades are sharp. Keep your fingers away from the cutter
blades.
3. Place the cutter assembly in position.
4. Install the two screws using the appropriate metric hex key.
5. Place the cutter assembly into the up (closed) position.
NOTE: The printer cannot detect the presence of the cutter unless the cutter
352
Cutter Assembly
Mounting Bracket
Cutter Assembly

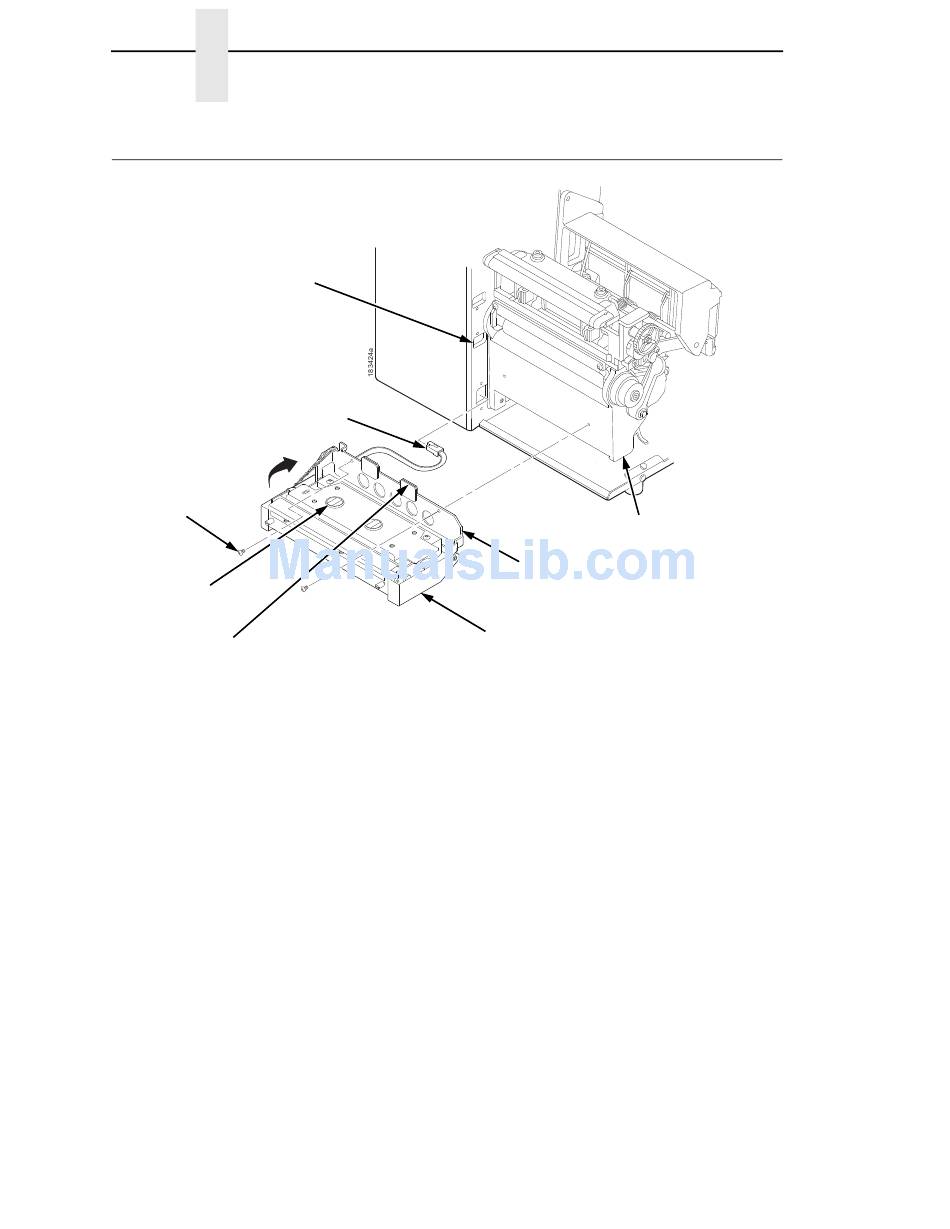

Figure 2. Cutter Assembly
is in the up (closed) position and the cutter top cover is installed when
the printer is powered on.
Lower Support Assembly
183424 REV A
