Printronix T5204R Administrator's Manual page 20

Chapter 1
Setting Up the Printer
5. Attach Interface:
a. Parallel Interface
b. Serial Interface
NOTE: The printer supports simultaneous connection of the parallel, serial,
Ethernet Port
Parallel Interface
Debug Interface
Serial Interface
USB Connection
20
Attach a suitable parallel printer cable from the computer to the
Centronics/IEEE 1284 interface connector at the back of the printer.
Snap the bail locks to the Centronics connector to secure the
interface cable to the printer.
Attach a suitable serial printer cable from the computer to the DB-9
RS-232 serial interface connector at the back of the printer. For
additional information on serial cable wiring, refer to "Diagnostics and
Troubleshooting" on page 291.
ethernet, and USB interfaces using the Auto Switching feature. Auto
Switching is described on page 281.

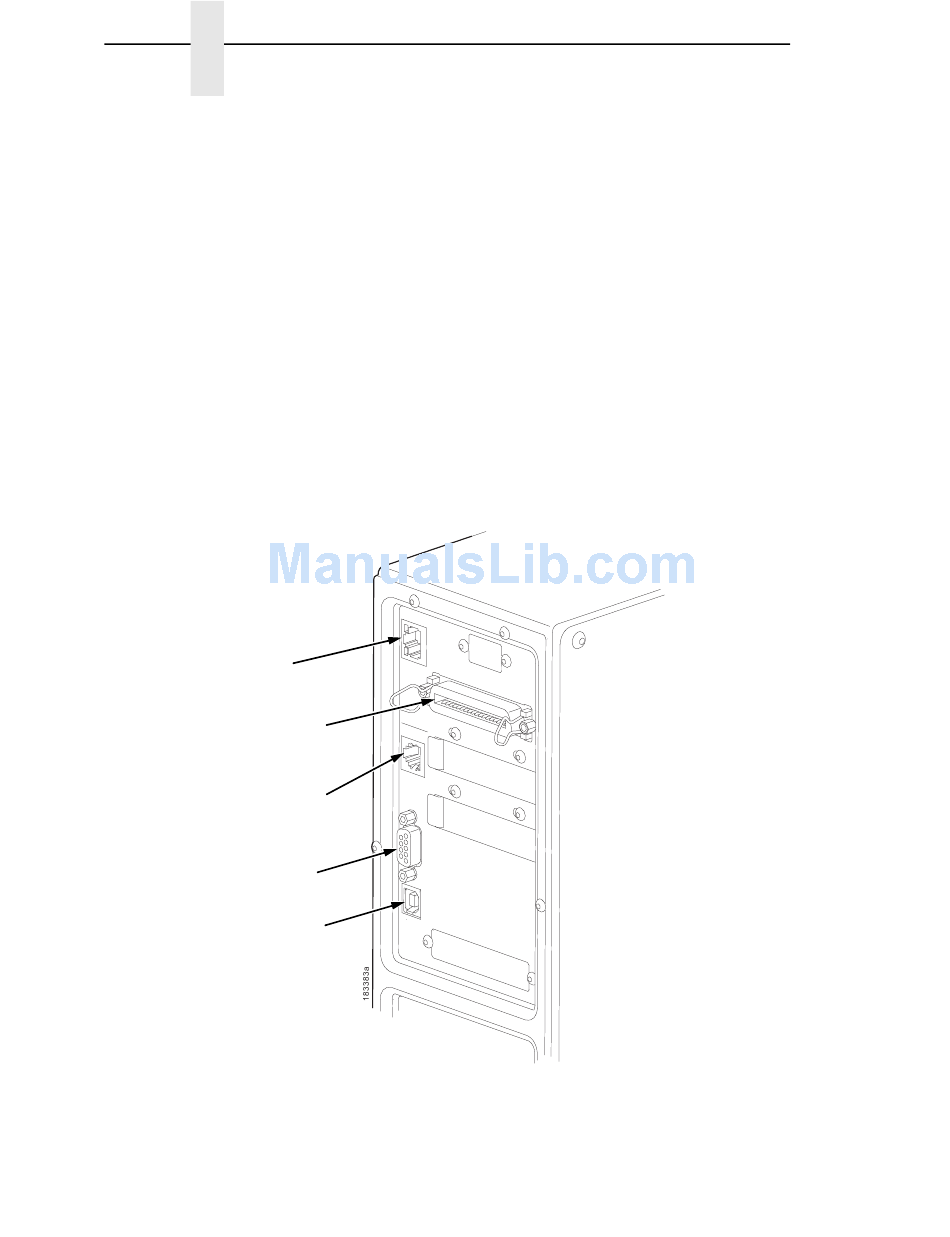

Standard Interface Panel
E T H E
R N E
T
P A R A
L L E L
S T A T
U S
D E B U
G
R S 2 3
2
U S B
G P I 0
