4

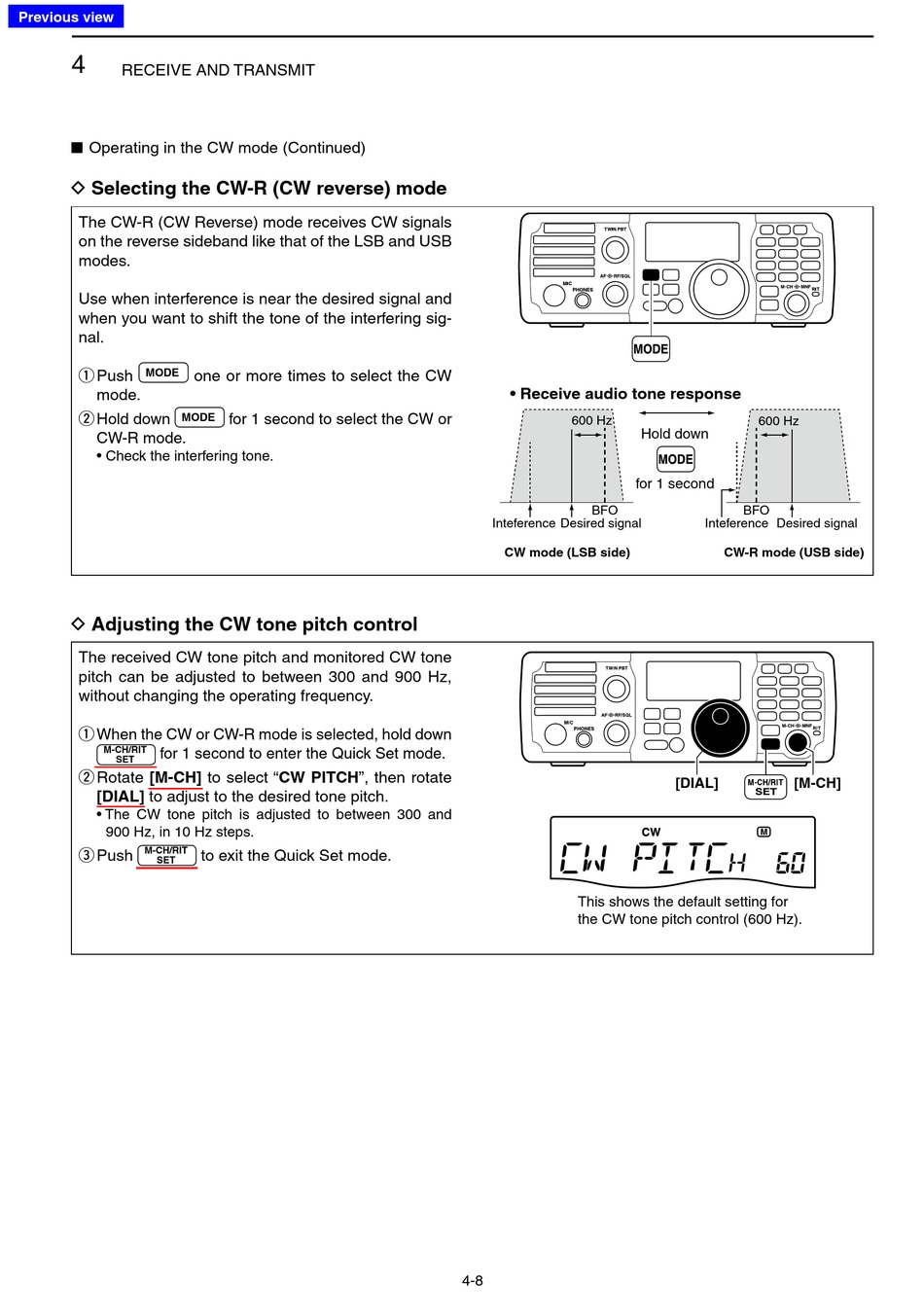

RECEIVE AND TRANSMIT
Operating in the CW mode (Continued)
■

D Selecting the CW-R (CW reverse) mode

The CW-R (CW Reverse) mode receives CW signals
on the reverse sideband like that of the LSB and USB
modes.
Use when interference is near the desired signal and
when you want to shift the tone of the interfering sig-
nal.
MODE
Push one or more times to select the CW
q
mode.
w Hold down
MODE
CW-R mode.
• Check the interfering tone.

D Adjusting the CW tone pitch control

The received CW tone pitch and monitored CW tone
pitch can be adjusted to between 300 and 900 Hz,
without changing the operating frequency.
q When the CW or CW-R mode is selected, hold down
M-CH/RIT for 1 second to enter the Quick Set mode.
SET
[M-CH] to select "CW PITCH", then rotate
Rotate
w
[DIAL] to adjust to the desired tone pitch.
• The CW tone pitch is adjusted to between 300 and
900 Hz, in 10 Hz steps.
M-CH/RIT
Push
e
SET
for 1 second to select the CW or
to exit the Quick Set mode.
• Receive audio tone response
600 Hz
for 1 second
BFO
Inteference Desired signal
CW mode (LSB side)
This shows the default setting for
the CW tone pitch control (600 Hz).
4-8
600 Hz
Hold down
BFO
Inteference Desired signal
CW-R mode (USB side)
[DIAL] [M-CH]
