2

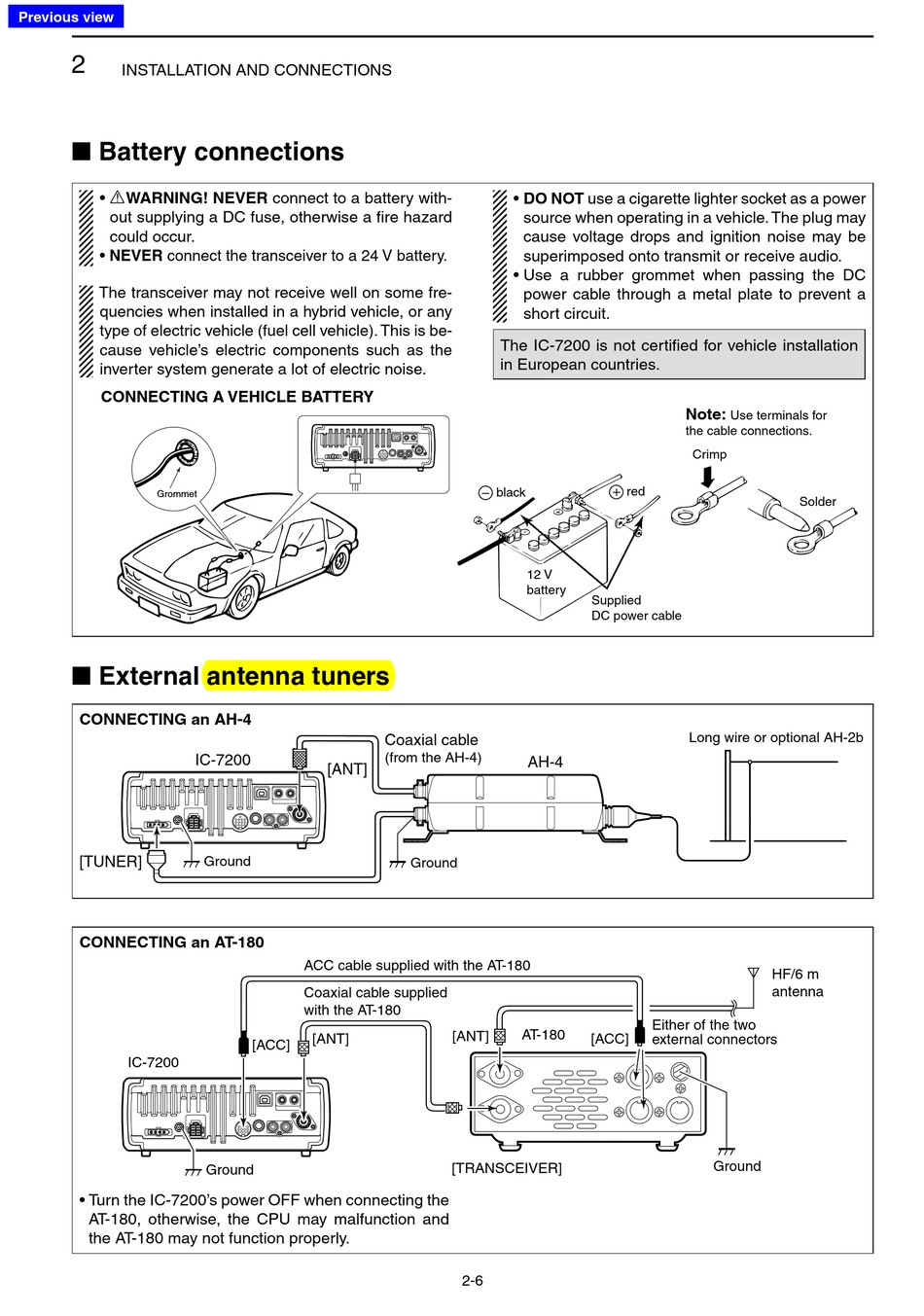

INSTALLATION AND CONNECTIONS

■ Battery connections

• RWARNING! NEVER connect to a battery with-
out supplying a DC fuse, otherwise a fire hazard
could occur.
• NEVER connect the transceiver to a 24 V battery.
The transceiver may not receive well on some fre-
quencies when installed in a hybrid vehicle, or any
type of electric vehicle (fuel cell vehicle). This is be-
cause vehicle's electric components such as the
inverter system generate a lot of electric noise.
CONNECTING A VEHICLE BATTERY
Grommet

■ External antenna tuners

CONNECTING an AH-4
[TUNER]
CONNECTING an AT-180
IC-7200
• Turn the IC-7200's power OFF when connecting the
AT-180, otherwise, the CPU may malfunction and
the AT-180 may not function properly.
IC-7200
[ANT]
Ground
ACC cable supplied with the AT-180
Coaxial cable supplied
with the AT-180
[ANT]
[ACC]
Ground
• DO NOT use a cigarette lighter socket as a power
source when operating in a vehicle. The plug may
cause voltage drops and ignition noise may be
superimposed onto transmit or receive audio.
• Use a rubber grommet when passing the DC
power cable through a metal plate to prevent a
short circuit.
The IC-7200 is not certified for vehicle installation
in European countries.
black
12 V
battery
Coaxial cable
(from the AH-4)
AH-4
Ground
AT-180
[ANT]
[TRANSCEIVER]
2-6
Note:
Use terminals for
the cable connections.
Crimp
red
Supplied
DC power cable
Long wire or optional AH-2b
Either of the two
[ACC]
external connectors
Ground
Solder
HF/6 m
antenna
