PANEL DESCRIPTION

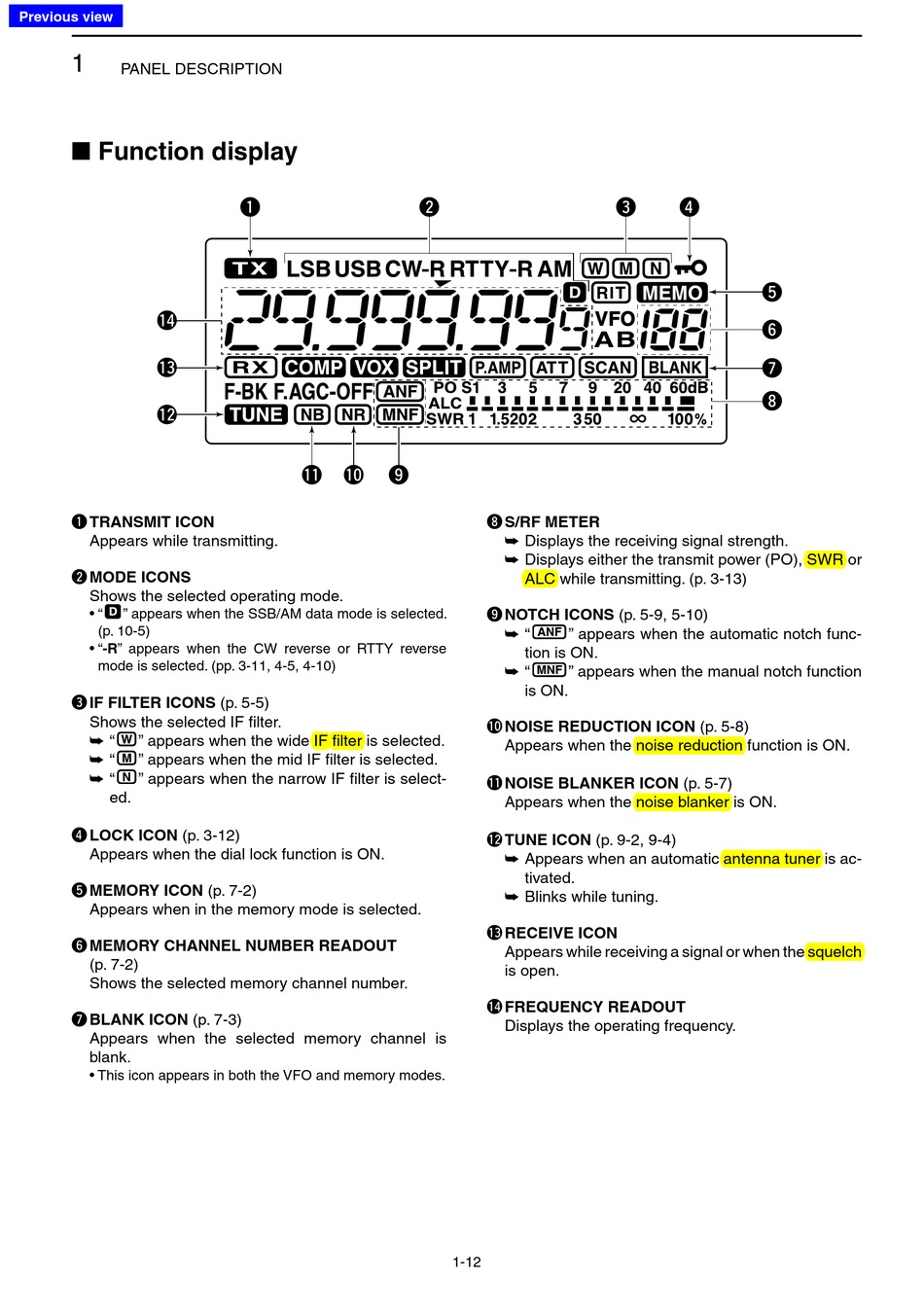

■ Function display

!4
!3
!2
q TRANSMIT ICON
Appears while transmitting.
w MODE ICONS
Shows the selected operating mode.
• " " appears when the SSB/AM data mode is selected.
(p. 10-5)
• "-R" appears when the CW reverse or RTTY reverse
mode is selected. (pp. 3-11, 4-5, 4-10)
e IF FILTER ICONS (p. 5-5)
Shows the selected IF filter.
" " appears when the wide IF filter is selected.
➥
➥ "   " appears when the mid IF filter is selected.
➥ " " appears when the narrow IF filter is select-

ed.
r LOCK ICON (p. 3-12)
Appears when the dial lock function is ON.
t MEMORY ICON (p. 7-2)
Appears when in the memory mode is selected.
y MEMORY CHANNEL NUMBER READOUT
(p. 7-2)
Shows the selected memory channel number.
u BLANK ICON (p. 7-3)
Appears when the selected memory channel is
blank.
• This icon appears in both the VFO and memory modes.
q
!1 !0 o
w
i S/RF METER
Displays the receiving signal strength.
➥
Displays either the transmit power (PO), SWR or
➥
ALC while transmitting. (p. 3-13)
o NOTCH ICONS (p. 5-9, 5-10)
" " appears when the automatic notch func-
➥
tion is ON.
" " appears when the manual notch function
➥
is ON.
!0 NOISE REDUCTION ICON (p. 5-8)
Appears when the noise reduction function is ON.
!1 NOISE BLANKER ICON (p. 5-7)
Appears when the noise blanker is ON.
!2 TUNE ICON (p. 9-2, 9-4)
Appears when an automatic antenna tuner is ac-
➥
tivated.
Blinks while tuning.
➥
!3 RECEIVE ICON
Appears while receiving a signal or when the squelch
is open.
!4 FREQUENCY READOUT
Displays the operating frequency.
1-12
