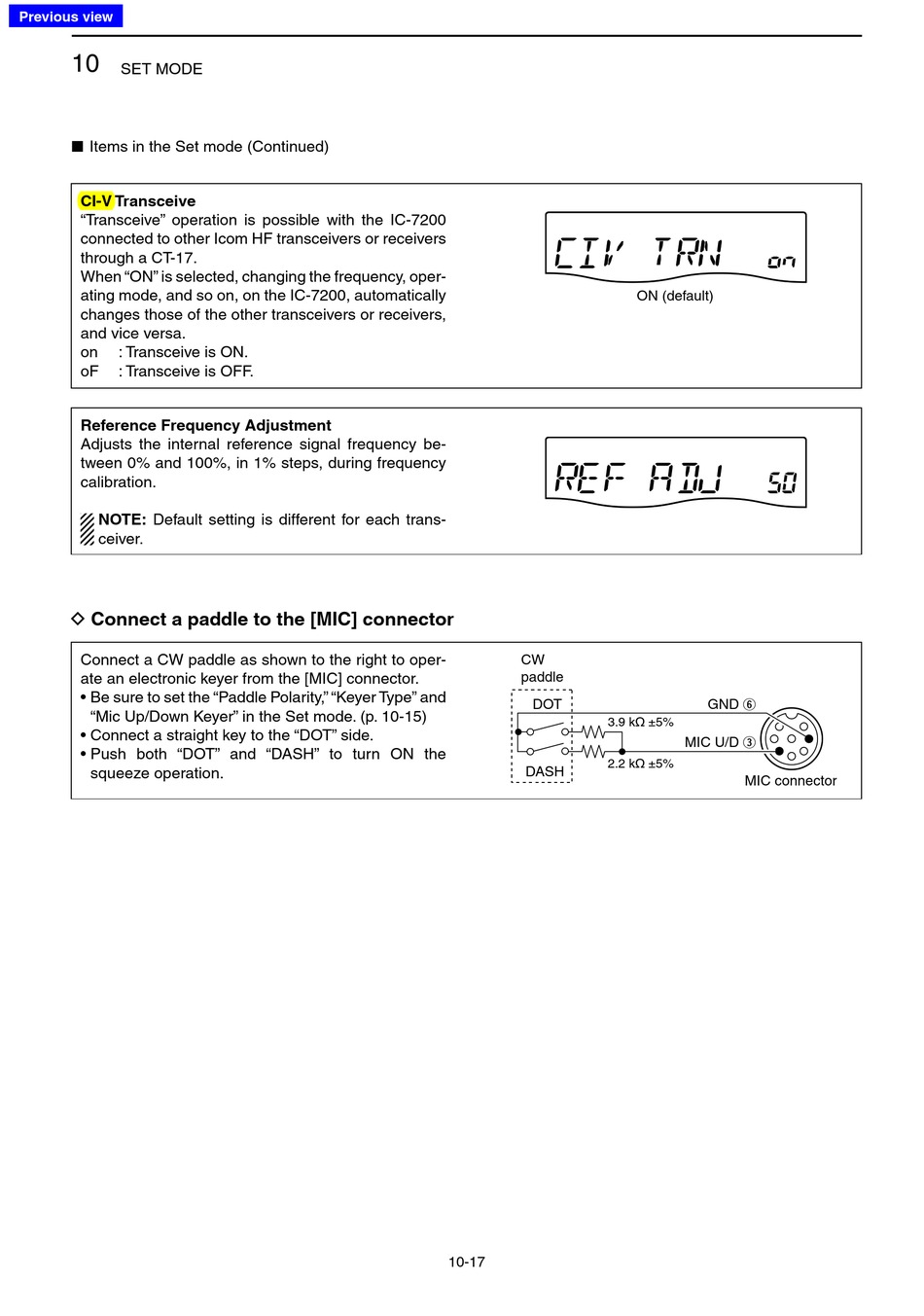

10
SET MODE
Items in the Set mode (Continued)
■
CI-V Transceive
"Transceive" operation is possible with the IC-7200
connected to other Icom HF transceivers or receivers
through a CT-17.
When "ON" is selected, changing the frequency, oper-
ating mode, and so on, on the IC-7200, automatically
changes those of the other transceivers or receivers,
and vice versa.
on : Transceive is ON.
oF : Transceive is OFF.
Reference Frequency Adjustment
Adjusts the internal reference signal frequency be-
tween 0% and 100%, in 1% steps, during frequency
calibration.
NOTE: Default setting is different for each trans-
ceiver.

D Connect a paddle to the [MIC] connector

Connect a CW paddle as shown to the right to oper-
ate an electronic keyer from the [MIC] connector.
• Be sure to set the "Paddle Polarity," "Keyer Type" and
"Mic Up/Down Keyer" in the Set mode. (p. 10-15)
• Connect a straight key to the "DOT" side.
• Push both "DOT" and "DASH" to turn ON the
squeeze operation.
CW
paddle
DOT
3.9 kø ±5%
2.2 kø ±5%
DASH
10-17
ON (default)
GND
y
MIC U/D
e
MIC connector
