FUNCTIONS FOR TRANSMIT

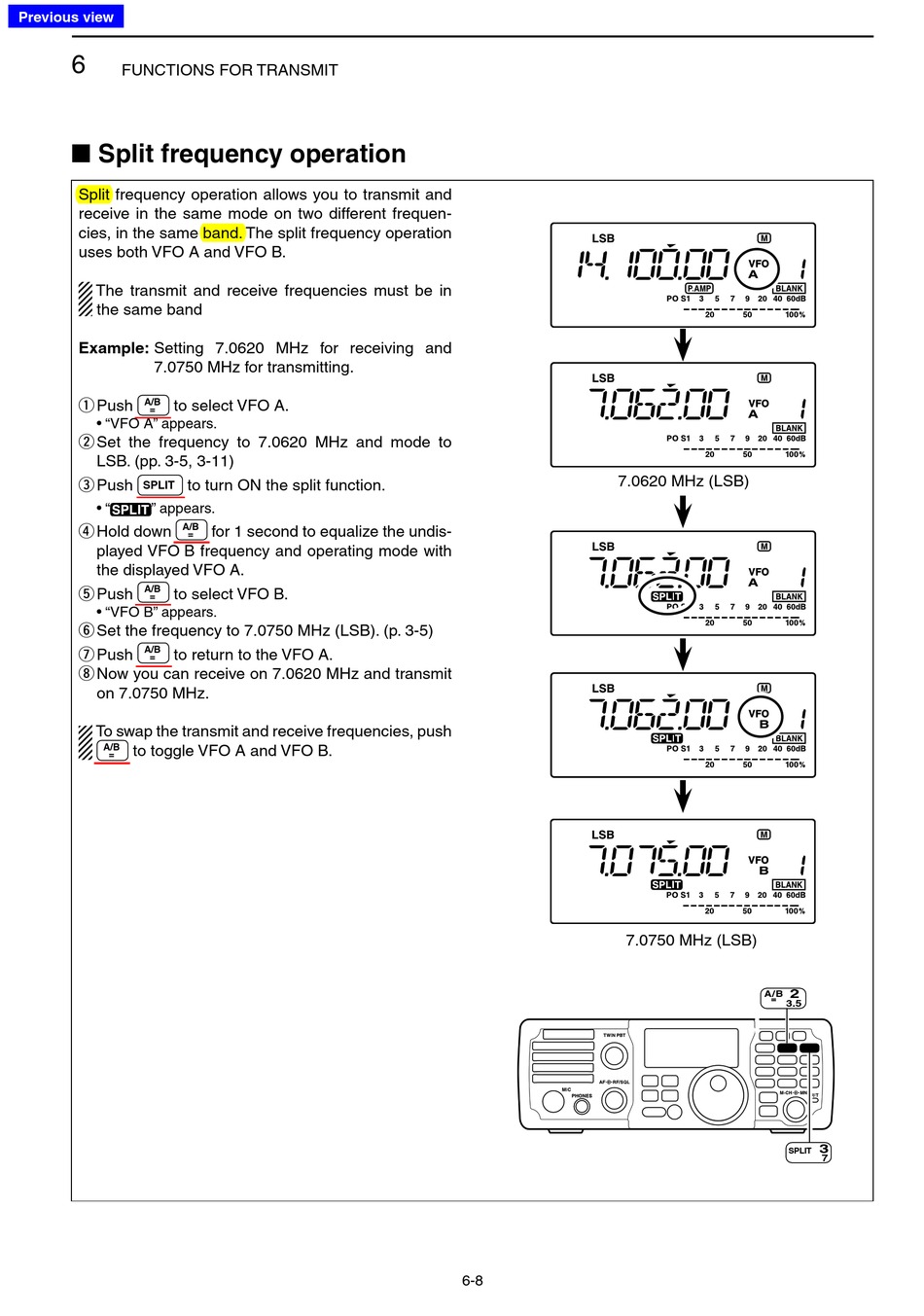

■ Split frequency operation

Split frequency operation allows you to transmit and
receive in the same mode on two different frequen-
cies, in the same band. The split frequency operation
uses both VFO A and VFO B.
The transmit and receive frequencies must be in
the same band
Example: Setting 7.0620 MHz for receiving and
7.0750 MHz for transmitting.
Push A/B to select VFO A.
q
• "VFO A" appears.
Set the frequency to 7.0620 MHz and mode to
w
LSB. (pp. 3-5, 3-11)
Push to turn ON the split function.
e
SPLIT
• " " appears.
A/B
Hold down
r
played VFO B frequency and operating mode with
the displayed VFO A.
A/B
Push to select VFO B.
t
• "VFO B" appears.
Set the frequency to 7.0750 MHz (LSB). (p. 3-5)
y
A/B
Push to return to the VFO A.
u
Now you can receive on 7.0620 MHz and transmit
i
on 7.0750 MHz.
To swap the transmit and receive frequencies, push
A/B to toggle VFO A and VFO B.
for 1 second to equalize the undis-
7.0620 MHz (LSB)
7.0750 MHz (LSB)
6-8
2
A/B
=
3.5
3
SPLIT
7
