INSTALLATION AND CONNECTIONS

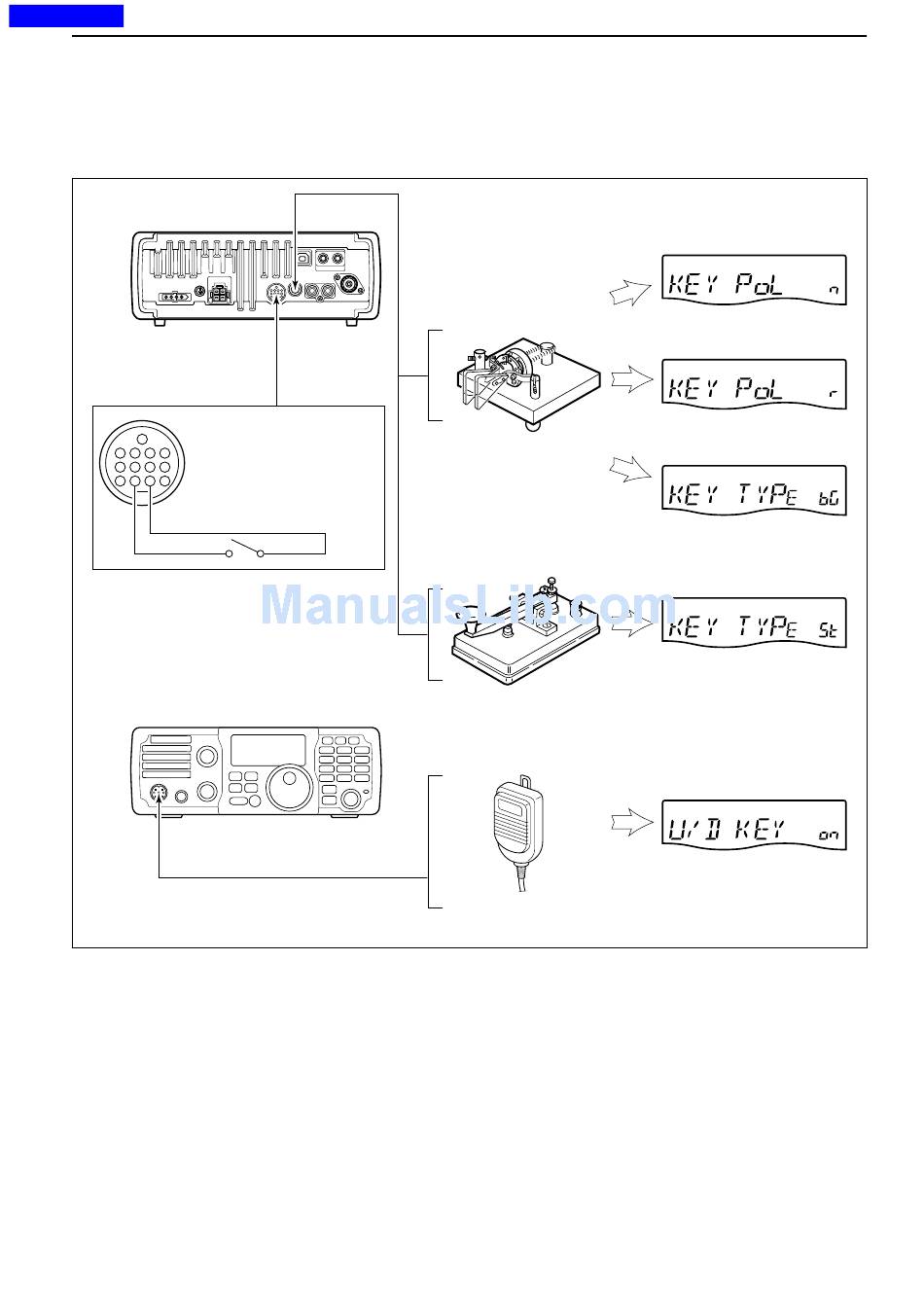

■ Connecting a CW keyer

13
9 10 11 12
5 6 7 8
1 2 3 4
MIC
See page 10-17 for connection
details: Connect a paddle to the
[MIC] connector.
Rear panel KEY
ACC
For no break-in operation:
Connect an external switch
such as a foot switch; or use
the RTTY SEND terminal for
all bands. (p. 2-9)
Paddle
Straight key
* When connecting an external electronic keyer,
set the keyer type to 'St' (straight-key).
Microphone (HM-36)
2-8
Set mode settings (p. 10-15)
N o rm al
Paddle polarity: Normal
R evers e
Paddle polarity: Reverse
B u g
Keyer type: Bug-key
Keyer type: Straight-key
Mic Up/Down keyer: ON
