BASIC OPERATION

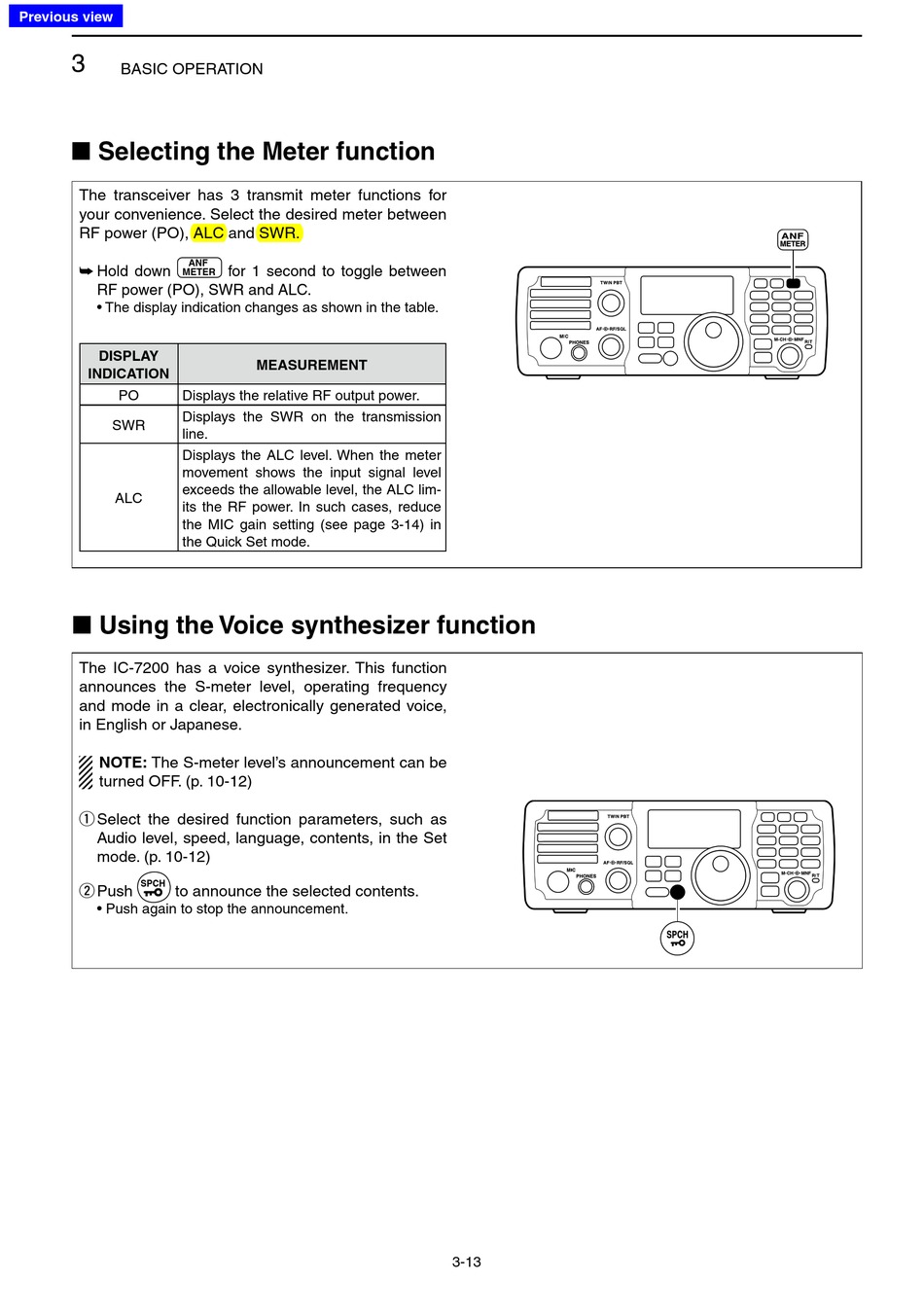

■ Selecting the Meter function

The transceiver has 3 transmit meter functions for
your convenience. Select the desired meter between
RF power (PO), ALC and SWR.
ANF
➥ Hold down
METER
RF power (PO), SWR and ALC.
• The display indication changes as shown in the table.
DISPLAY
INDICATION
PO Displays the relative RF output power.
Displays the SWR on the transmission
SWR
line.
Displays the ALC level. When the meter
movement shows the input signal level
exceeds the allowable level, the ALC lim-
ALC
its the RF power. In such cases, reduce
the MIC gain setting (see page 3-14) in
the Quick Set mode.

■ Using the Voice synthesizer function

The IC-7200 has a voice synthesizer. This function
announces the S-meter level, operating frequency
and mode in a clear, electronically generated voice,
in English or Japanese.
NOTE: The S-meter level's announcement can be
turned OFF. (p. 10-12)
Select the desired function parameters, such as
q
Audio level, speed, language, contents, in the Set
mode. (p. 10-12)
SPCH
Push to announce the selected contents.
w
• Push again to stop the announcement.
for 1 second to toggle between
MEASUREMENT
3-13
