PANEL DESCRIPTION
Rear panel (Continued)
■

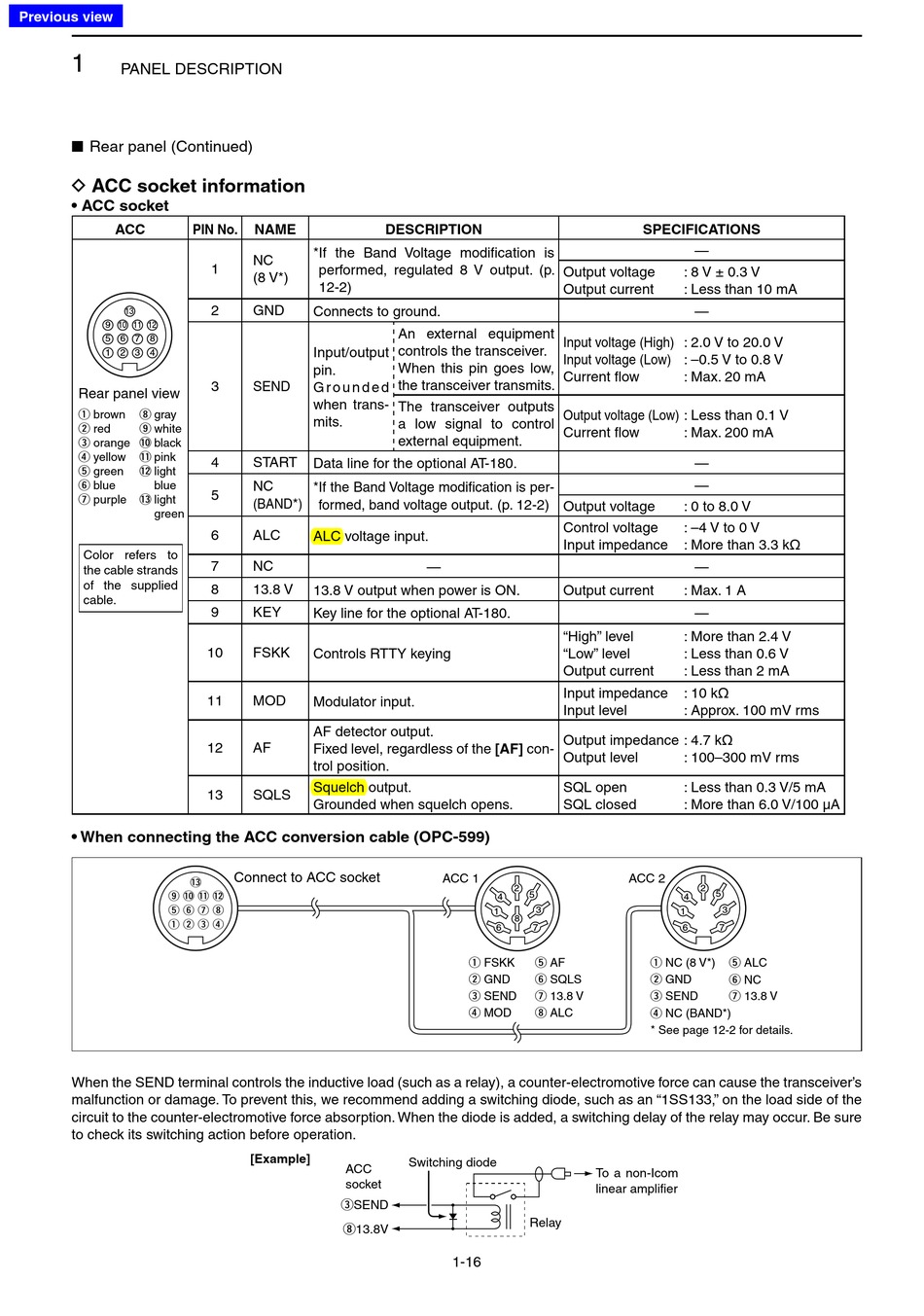

D ACC socket information
• ACC socket
ACC
13
9 10 11 12
5 6 7 8
1 2 3 4
Rear panel view
q brown gray
i
w red white
o
e orange !0 black
r yellow pink
!1
t green light
!2
y blue blue
u purple light
!3
green
Color refers to
the cable strands
of the supplied
cable.
• When connecting the ACC conversion cable (OPC-599)
!3
o !0 !1 !2
t y u i
q w e r
When the SEND terminal controls the inductive load (such as a relay), a counter-electromotive force can cause the transceiver's
malfunction or damage. To prevent this, we recommend adding a switching diode, such as an "1SS133," on the load side of the
circuit to the counter-electromotive force absorption. When the diode is added, a switching delay of the relay may occur. Be sure
to check its switching action before operation.
PIN No. NAME
* If the Band Voltage modification is
NC
1
performed, regulated 8 V output. (p.
(8 V*)
12-2)
2 GND
Connects to ground.
Input/output
pin.
3 SEND
G r o u n d e d
when trans-
mits.
4 START
Data line for the optional AT-180.
NC
* If the Band Voltage modification is per-
5
(BAND*)
formed, band voltage output. (p. 12-2)
6 ALC
ALC voltage input.
7 NC
8 13.8 V
13.8 V output when power is ON.
9 KEY
Key line for the optional AT-180.
10 FSKK
Controls RTTY keying
11 MOD
Modulator input.
AF detector output.
12 AF
Fixed level, regardless of the [AF] con-
trol position.
Squelch output.
13 SQLS
Grounded when squelch opens.
Connect to ACC socket
[Example]
ACC
socket
eSEND
i13.8V
DESCRIPTION
An external equipment
controls the transceiver.
When this pin goes low,
the transceiver transmits.
The transceiver outputs
a low signal to control
external equipment.
—
ACC 1
2
5
4
3
1
8
6 7
q FSKK t AF
w GND y SQLS
e SEND u 13.8 V
r MOD i ALC
Switching diode
Relay
1-16
SPECIFICATIONS
—
Output voltage : 8 V ± 0.3 V
Output current : Less than 10 mA
—
Input voltage (High) : 2.0 V to 20.0 V
Input voltage (Low) : –0.5 V to 0.8 V
Current flow : Max. 20 mA
Output voltage (Low) : Less than 0.1 V
Current flow : Max. 200 mA
—
—
Output voltage : 0 to 8.0 V
Control voltage : –4 V to 0 V
Input impedance : More than 3.3 k˘
—
Output current : Max. 1 A
—
"High" level : More than 2.4 V
"Low" level : Less than 0.6 V
Output current : Less than 2 mA
Input impedance : 10 k˘
Input level : Approx. 100 mV rms
Output impedance : 4.7 k˘
Output level : 100–300 mV rms
SQL open : Less than 0.3 V/5 mA
SQL closed : More than 6.0 V/100 µA
ACC 2
2
5
4
3
1
6 7
q NC (8 V*) t ALC
w GND
y NC
e SEND u 13.8 V
r NC (BAND*)
* See page 12-2 for details.
To a non-Icom
linear amplifier
