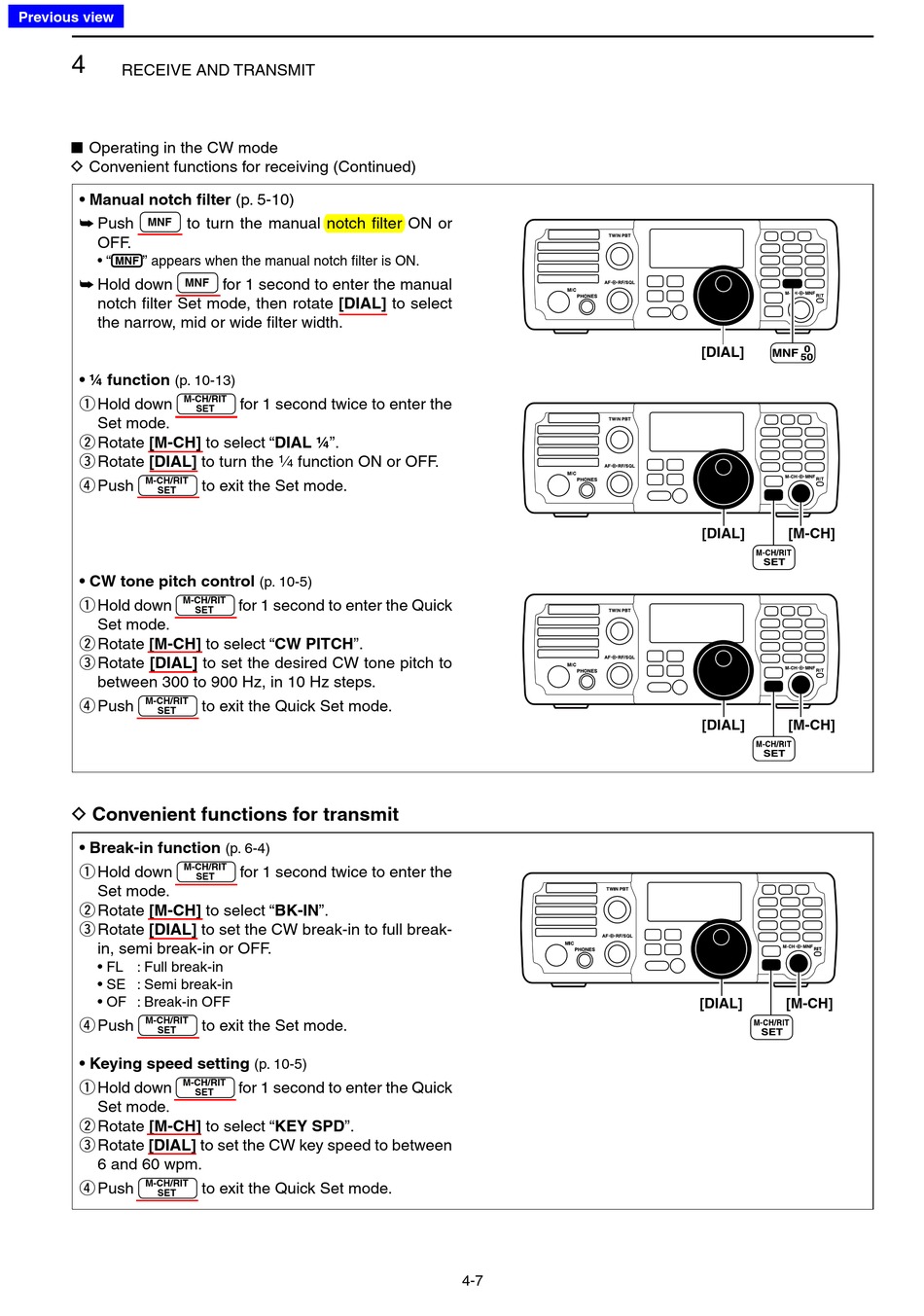

RECEIVE AND TRANSMIT
Operating in the CW mode
■
D
Convenient functions for receiving (Continued)
• Manual notch filter (p. 5-10)
Push to turn the manual notch filter ON or
➥ MNF
OFF.
• " " appears when the manual notch filter is ON.
Hold down
➥ MNF
notch filter Set mode, then rotate [DIAL] to select
the narrow, mid or wide filter width.
• ¼ function
(p. 10-13)
M-CH/RIT
Hold down
q
Set mode.
[M-CH] to select "DIAL ¼".
Rotate
w
Rotate [DIAL] to turn the
e
M-CH/RIT
Push
r
SET
• CW tone pitch control
M-CH/RIT
Hold down
q
Set mode.
[M-CH] to select "CW PITCH".
Rotate
w
[DIAL] to set the desired CW tone pitch to
Rotate
e
between 300 to 900 Hz, in 10 Hz steps.
M-CH/RIT
Push
r
SET

D Convenient functions for transmit

• Break-in function
M-CH/RIT
Hold down
q
Set mode.
[M-CH] to select "BK-IN".
Rotate
w
Rotate [DIAL] to set the CW break-in to full break-
e
in, semi break-in or OFF.
• FL : Full break-in
• SE : Semi break-in
• OF : Break-in OFF
M-CH/RIT
Push
r
SET
• Keying speed setting
M-CH/RIT
Hold down
q
Set mode.
Rotate [M-CH] to select "KEY SPD".
w
Rotate [DIAL] to set the CW key speed to between
e
6 and 60 wpm.
M-CH/RIT
Push
r
SET
for 1 second to enter the manual
for 1 second twice to enter the
SET
⁄ function ON or OFF.
1
4
to exit the Set mode.
(p. 10-5)
for 1 second to enter the Quick
SET
to exit the Quick Set mode.
(p. 6-4)
for 1 second twice to enter the
SET
to exit the Set mode.
(p. 10-5)
for 1 second to enter the Quick
SET
to exit the Quick Set mode.
4-7
[DIAL]
[DIAL] [M-CH]
[DIAL] [M-CH]
[DIAL] [M-CH]
