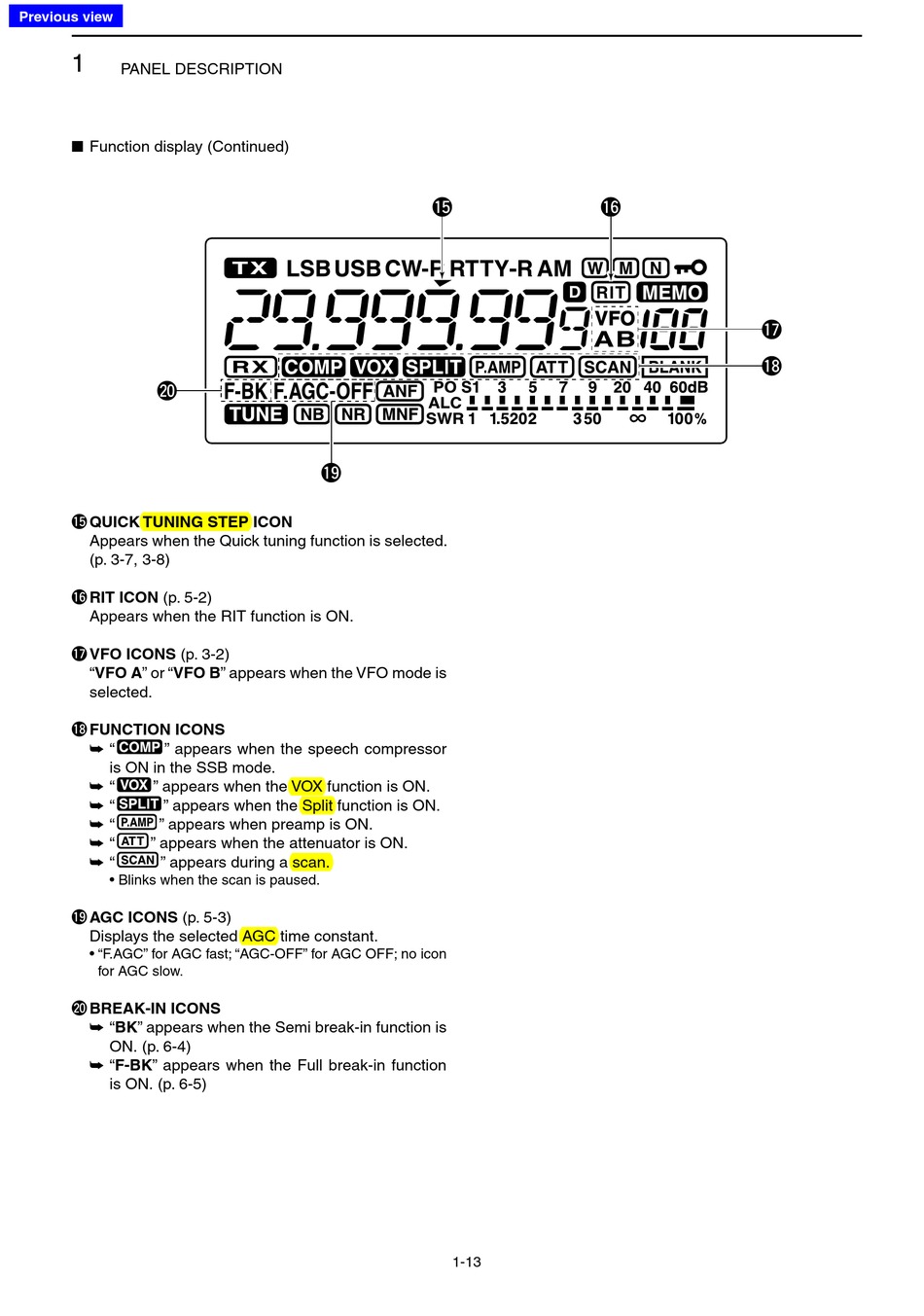

PANEL DESCRIPTION
Function display (Continued)
■
@0
!5 QUICK TUNING STEP ICON
Appears when the Quick tuning function is selected.
(p. 3-7, 3-8)
!6 RIT ICON (p. 5-2)
Appears when the RIT function is ON.
!7 VFO ICONS (p. 3-2)
"VFO A" or "VFO B" appears when the VFO mode is
selected.
!8 FUNCTION ICONS
" " appears when the speech compressor
➥
is ON in the SSB mode.
" " appears when the VOX function is ON.
➥
" " appears when the Split function is ON.
➥
" " appears when preamp is ON.
➥
" " appears when the attenuator is ON.
➥
" " appears during a scan.
➥
• Blinks when the scan is paused.
!9 AGC ICONS (p. 5-3)
Displays the selected AGC time constant.
• "F.AGC" for AGC fast; "AGC-OFF" for AGC OFF; no icon
for AGC slow.
@0 BREAK-IN ICONS
➥ BK" appears when the Semi break-in function is "
ON. (p. 6-4)
➥ F-BK" appears when the Full break-in function
"
is ON. (p. 6-5)
!5
!9
1-13
