6
FUNCTIONS FOR TRANSMIT

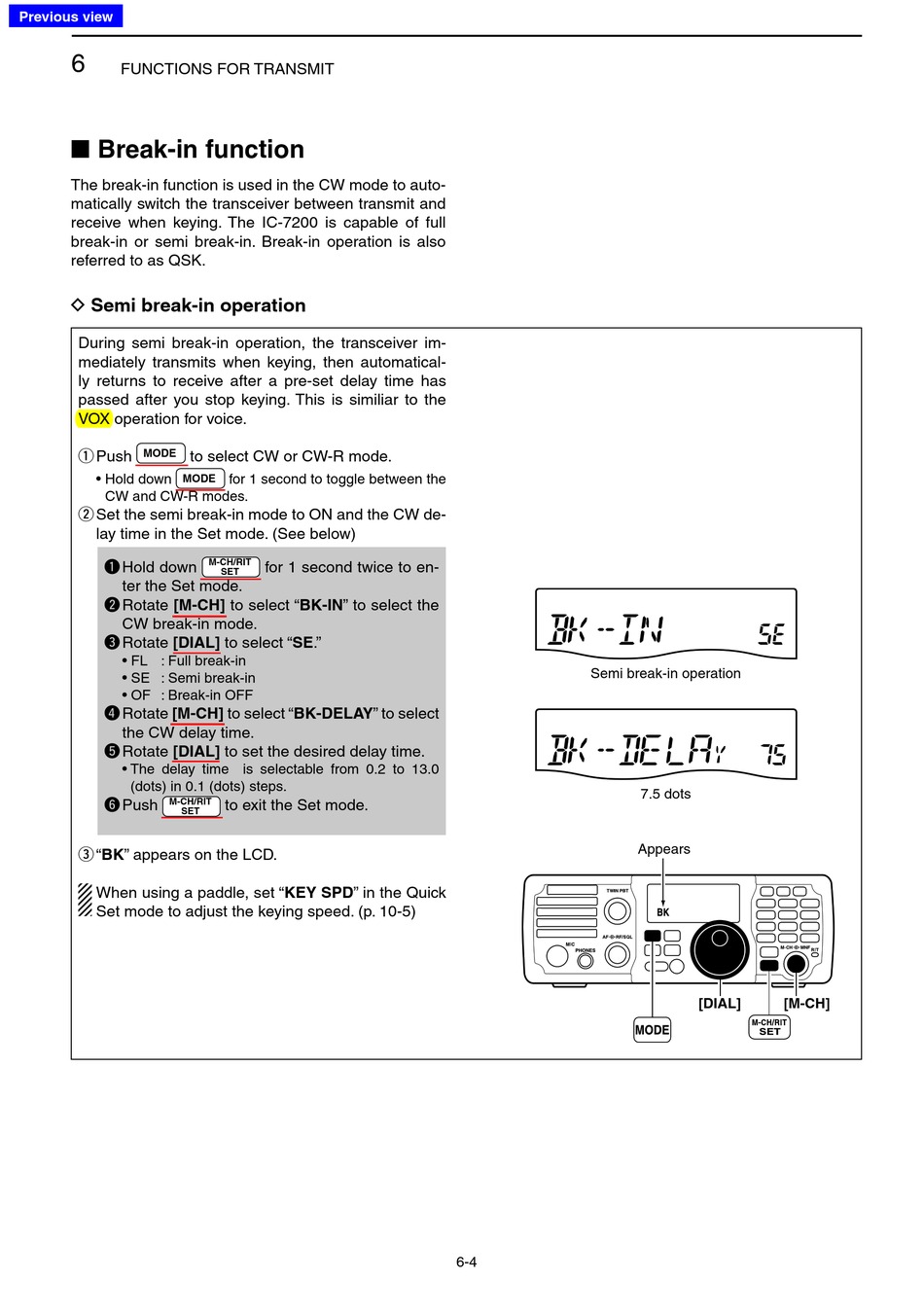

■ Break-in function

The break-in function is used in the CW mode to auto-
matically switch the transceiver between transmit and
receive when keying. The IC-7200 is capable of full
break-in or semi break-in. Break-in operation is also
referred to as QSK.

D Semi break-in operation

During semi break-in operation, the transceiver im-
mediately transmits when keying, then automatical-
ly returns to receive after a pre-set delay time has
passed after you stop keying. This is similiar to the
VOX operation for voice.
MODE
Push to select CW or CW-R mode.
q
• Hold down
MODE
CW and CW-R modes.
Set the semi break-in mode to ON and the CW de-
w
lay time in the Set mode. (See below)
q Hold down
ter the Set mode.
w Rotate [M-CH] to select "BK-IN" to select the
CW break-in mode.
e Rotate [DIAL] to select "SE."
• FL : Full break-in
• SE : Semi break-in
• OF : Break-in OFF
r Rotate [M-CH] to select "BK-DELAY" to select
the CW delay time.
t Rotate [DIAL] to set the desired delay time.
• The delay time is selectable from 0.2 to 13.0
(dots) in 0.1 (dots) steps.
y Push
M-CH/RIT
SET
e BK" appears on the LCD. "
When using a paddle, set "KEY SPD" in the Quick
Set mode to adjust the keying speed. (p. 10-5)
for 1 second to toggle between the
M-CH/RIT
for 1 second twice to en-
SET
to exit the Set mode.
Semi break-in operation
6-4
7.5 dots
Appears
[DIAL] [M-CH]
