5
FUNCTIONS FOR RECEIVE
Notch function (Continued)
■

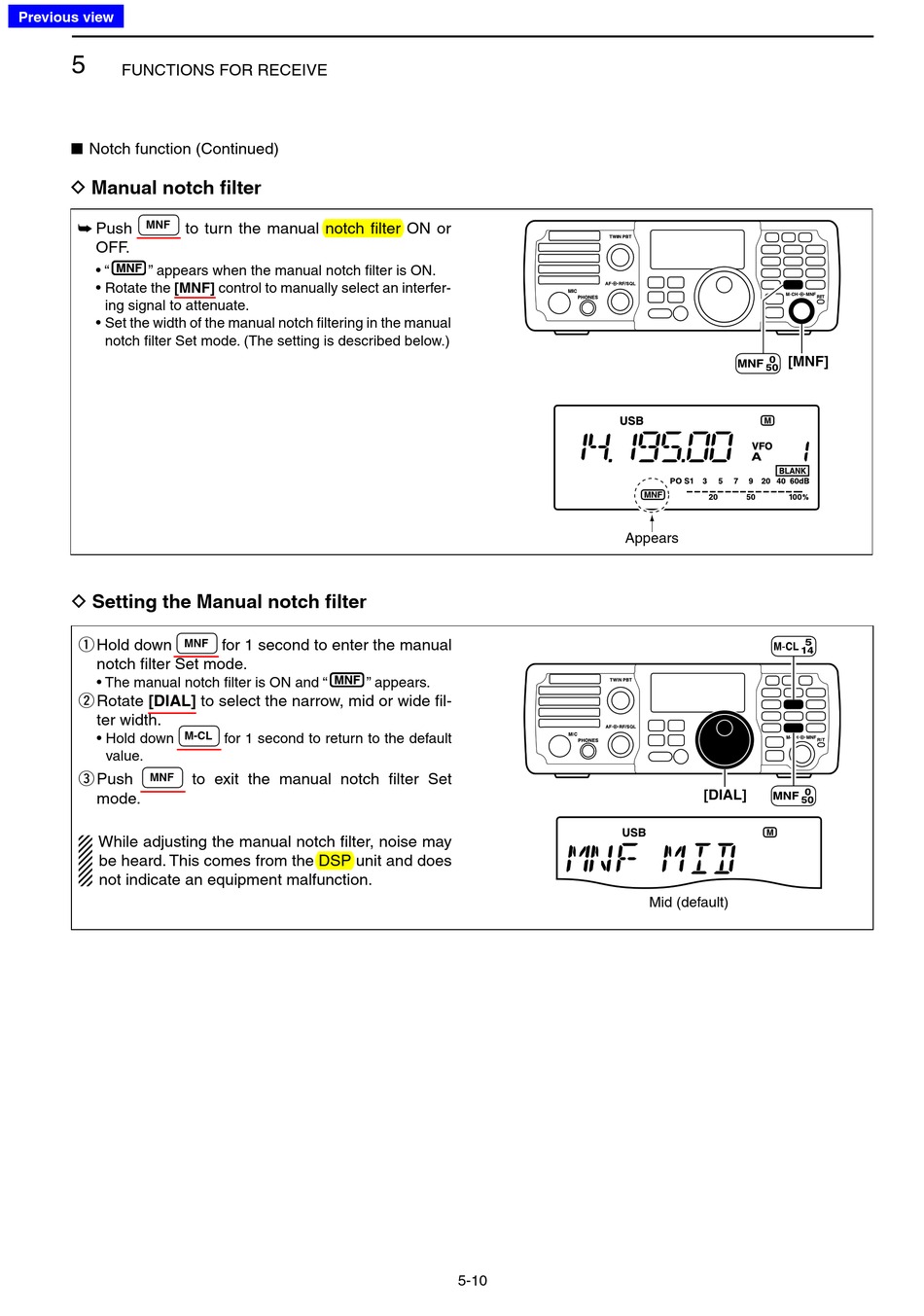

D Manual notch filter

MNF
Push to turn the manual notch filter ON or
➥
OFF.
• " " appears when the manual notch filter is ON.
• Rotate the [MNF] control to manually select an interfer-
ing signal to attenuate.
• Set the width of the manual notch filtering in the manual
notch filter Set mode. (The setting is described below.)

D Setting the Manual notch filter

Hold down
MNF
q
notch filter Set mode.
• The manual notch filter is ON and "
Rotate [DIAL] to select the narrow, mid or wide fil-
w
ter width.
• Hold down M-CL
value.
Push to exit the manual notch filter Set
e MNF
mode.
While adjusting the manual notch filter, noise may
be heard. This comes from the DSP unit and does
not indicate an equipment malfunction.
for 1 second to enter the manual
" appears.
for 1 second to return to the default
Appears
5-10
[MNF]
[DIAL]
Mid (default)
