4
RECEIVE AND TRANSMIT

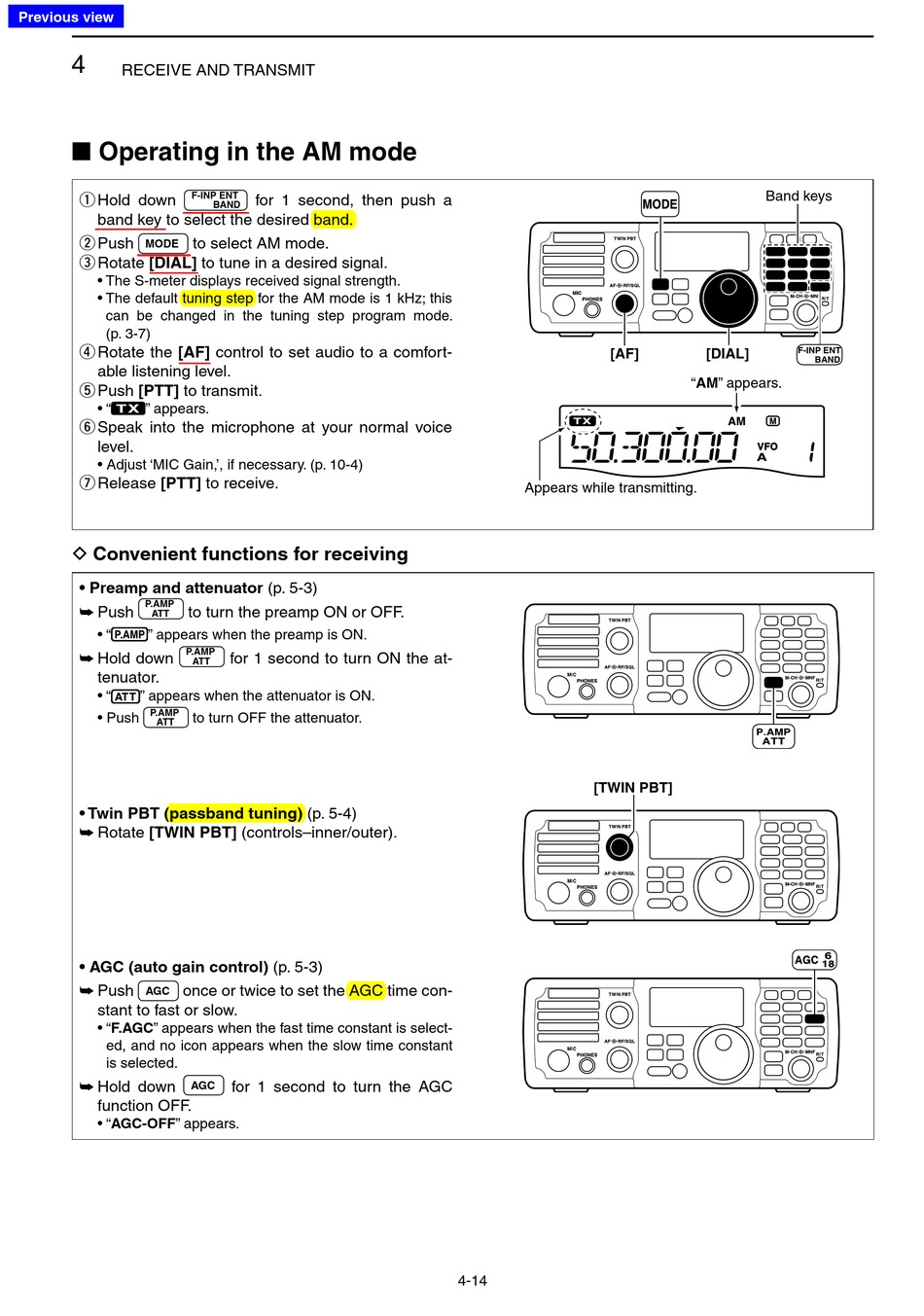

■ Operating in the AM mode

F-INP ENT
Hold down
q
band key to select the desired band.
Push to select AM mode.
w
MODE
[DIAL] to tune in a desired signal.
Rotate
e
• The S-meter displays received signal strength.
• The default tuning step for the AM mode is 1 kHz; this
can be changed in the tuning step program mode.
(p. 3-7)
[AF] control to set audio to a comfort-
Rotate the
r
able listening level.
[PTT] to transmit.
Push
t
• " " appears.
Speak into the microphone at your normal voice
y
level.
• Adjust 'MIC Gain,', if necessary. (p. 10-4)
Release [PTT] to receive.
u

D Convenient functions for receiving

• Preamp and attenuator (p. 5-3)
P.AMP
Push to turn the preamp ON or OFF.
➥
ATT
• " " appears when the preamp is ON.
P.AMP
Hold down
➥
ATT
tenuator.
• " " appears when the attenuator is ON.
P.AMP
• Push to turn OFF the attenuator.
ATT
• Twin PBT (passband tuning) (p. 5-4)
Rotate [TWIN PBT] (controls–inner/outer).
➥
• AGC (auto gain control) (p. 5-3)
Push once or twice to set the AGC time con-
➥
AGC
stant to fast or slow.
• "F.AGC" appears when the fast time constant is select-
ed, and no icon appears when the slow time constant
is selected.
Hold down
➥ AGC
function OFF.
• "AGC-OFF" appears.
for 1 second, then push a
BAND
for 1 second to turn ON the at-
for 1 second to turn the AGC
[AF]
Appears while transmitting.
[TWIN PBT]
4-14
Band keys
[DIAL]
F-INP ENT
BAND
"AM" appears.
