10
SET MODE

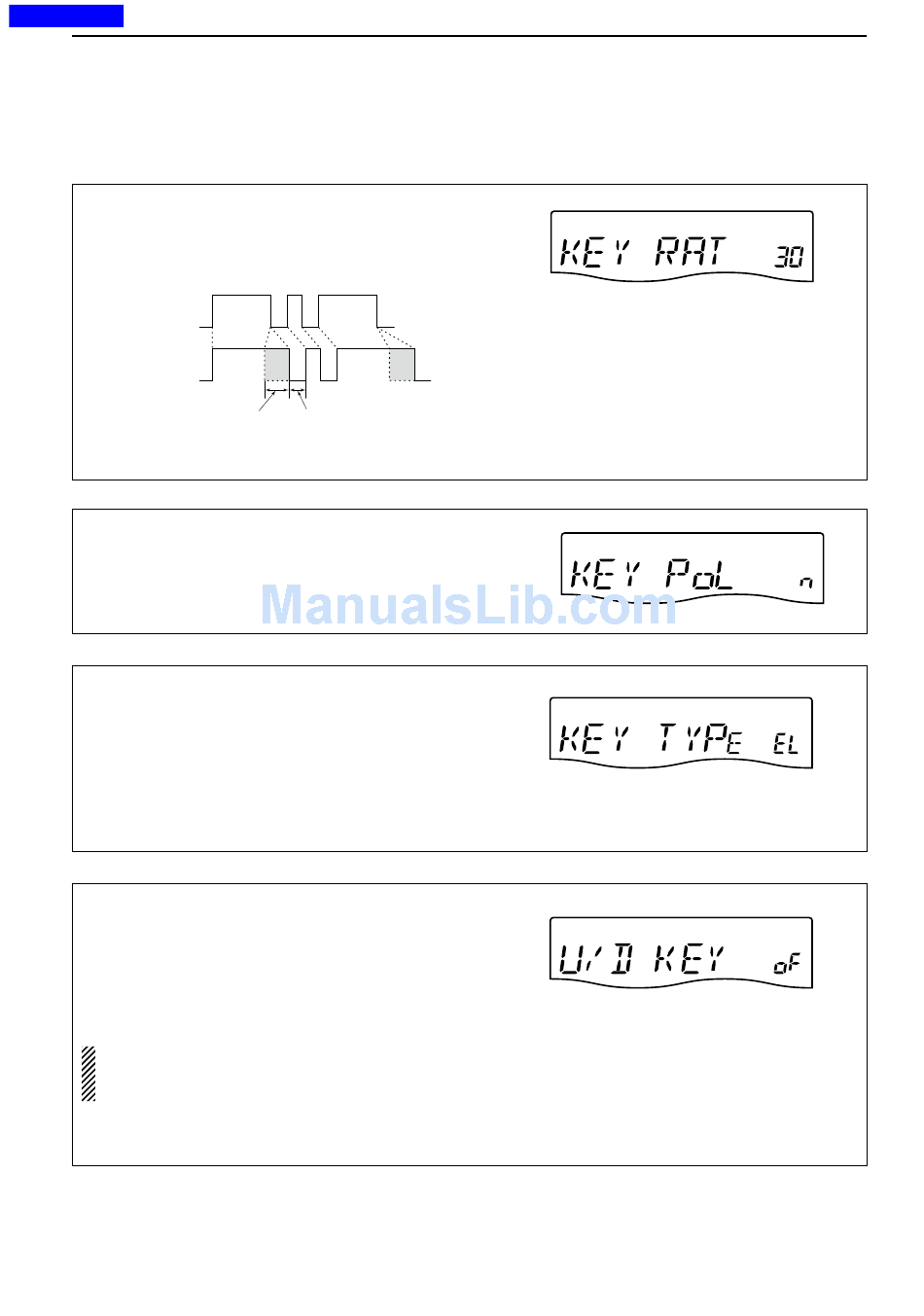

Items in the Set mode (Continued)
■
Dot/Dash Ratio
Sets the internal electronic keyer dot/dash ratio be-
tween 1:1:2.8 and 1:1:4.5, in 0.1 unit steps.
Keying weight example: Morse code "K"
Weight setting:
1:1:3 (default)
Weight setting:
Adjusted
Adjustable range
*SPACE and DOT length can be adjusted only
with the "Key speed" in the Quick Set mode.
Paddle Polarity
Sets the paddle polarity.
n : Normal polarity
r : Reverse polarity
Keyer Type
Selects the keyer type for the [KEY] connector on the
rear panel.
EL : The internal electronic keyer is selected.
bG : The internal electronic keyer is set for a BUG
key.
St : The internal electronic keyer is turned OFF,
and a straight key or external electronic keyer
can be used.
Mic Up/Down Keyer
Sets the microphone [UP]/[DN] switches to be used
as a paddle.
on : [UP]/[DN] switches can be used as a paddle
for CW mode operation.
oF : [UP]/[DN] switches cannot be used as a pad-
dle for CW mode operation.
NOTE: When "ON" is selected, the frequency and
memory channel cannot be changed using the
[UP]/[DN] switches.
See page 2-3 for the CW paddle connection to the
MIC connector.
DOT (Fixed*)
DASH DASH
SPACE (Fixed*)
ELEC-KEY (default)
10-15
1:1:3.0 (default)
Normal (default)
OFF (default)
