INSTALLATION AND CONNECTIONS

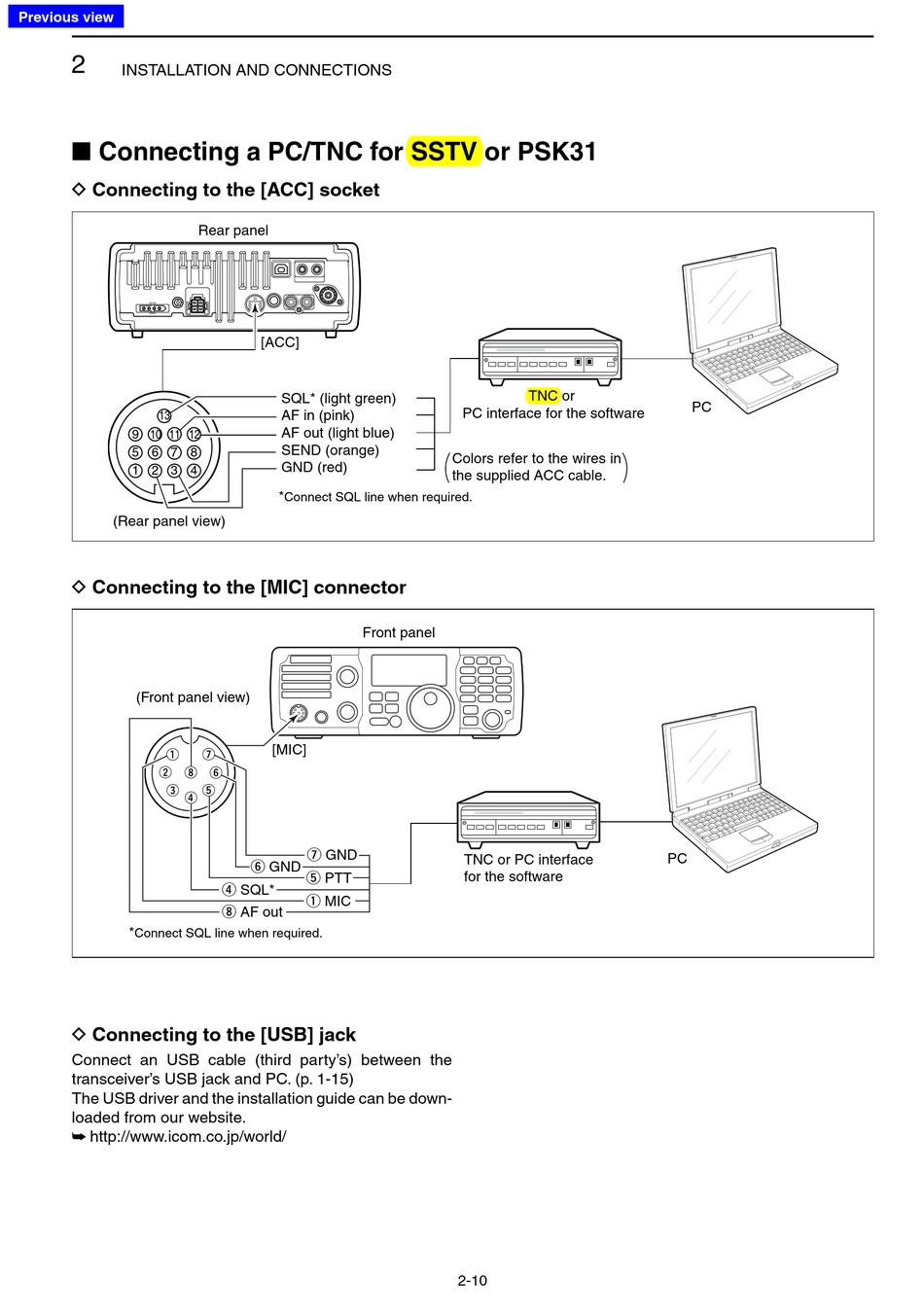

■ Connecting a PC/TNC for SSTV or PSK31

D Connecting to the [ACC] socket

13
9 10 11 12
5 6 7 8
1 2 3 4
(Rear panel view)

D Connecting to the [MIC] connector

(Front panel view)
*
Connect SQL line when required.

D Connecting to the [USB] jack

Connect an USB cable (third party's) between the
transceiver's USB jack and PC. (p. 1-15)
The USB driver and the installation guide can be down-
loaded from our website.
http://www.icom.co.jp/world/
➥
Rear panel
[ACC]
SQL* (light green)
AF in (pink)
AF out (light blue)
SEND (orange)
GND (red)
*
Connect SQL line when required.
Front panel
[MIC]
u GND
y GND
t PTT
r SQL*
q MIC
i AF out
TNC or
PC interface for the software
Colors refer to the wires in
the supplied ACC cable.
TNC or PC interface
for the software
2-10
PC
PC
