Minolta CF2002 Service Manual page 85

Pulley E
Pulley E
Pulley D
19. Remove the Cable Holding Jigs from the front and rear pulleys.
20. Mount the Scanner Assy and Flat Cable.
21. Reinstall the optical cover.
22. Reinstall the Original Glass.
23. Reinstall all covers which have been removed.
24. Reinstall the Control Panel.
25. Adjust the position of the Scanner and 2nd/3rd Mirrors Carriage.
D-44

NOTE
• Whenever the Scanner Drive Cables have been removed, be sure to carry out the "FD-
Mag" adjustment procedure.
D-68

Rear

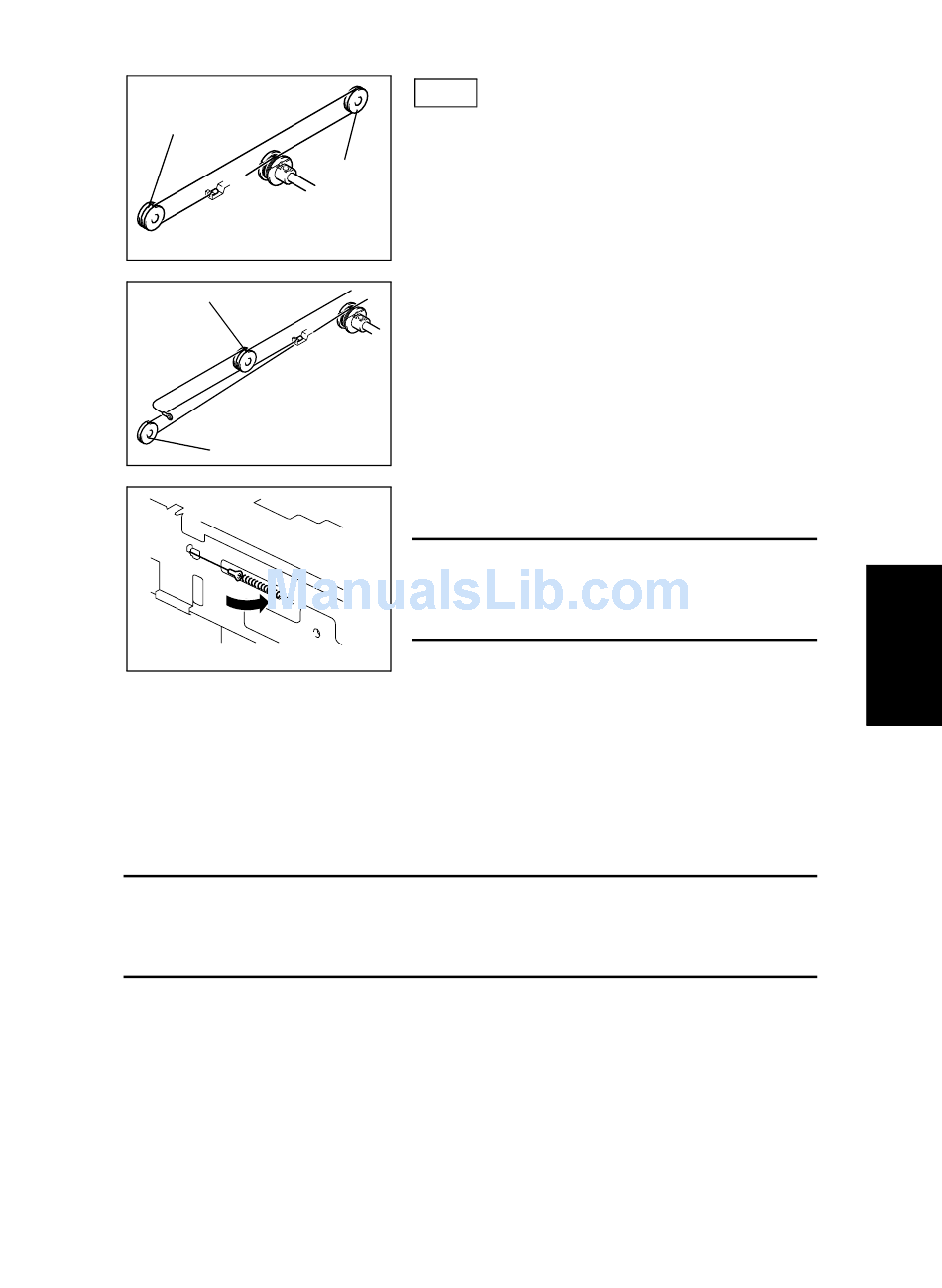

16. Wind the bead end of the cable around pulley F
and pulley E, then hook the bead onto the Adjust-
Pulley F
able Anchor.
4002D010AA
17. Wind the hook end of the cable around pulley D
and pulley E.
4002D011AA
18. Fit the hook end of the cable to the spring and
then hook the spring to the catch in the frame.
NOTE
• Select the appropriate catch in the frame (from
among three) so that the spring measures 64.2
mm ± 1 mm.
4002D120AB
D-27
