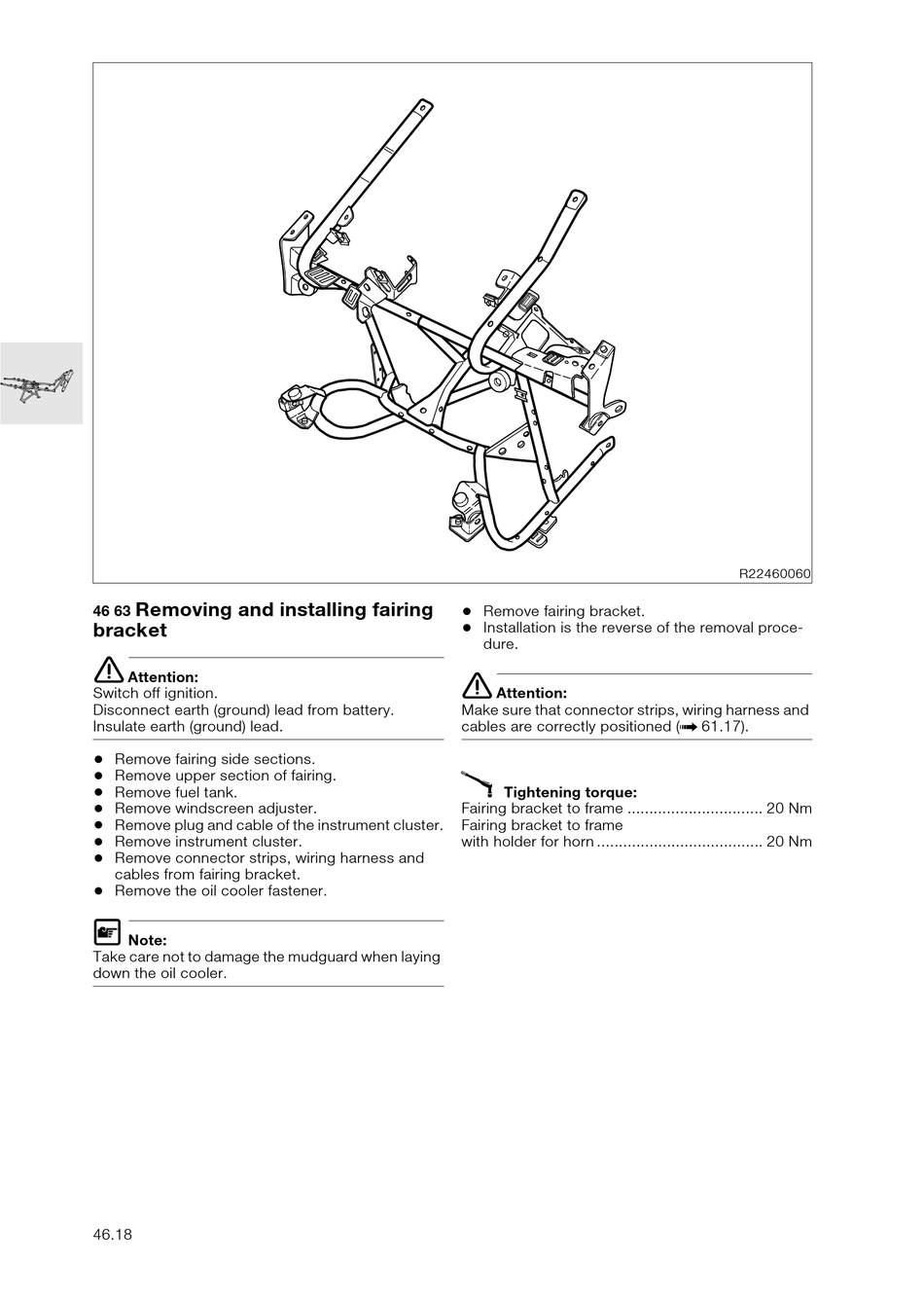

Removing and installing fairing
46 63
bracket
e
Attention:
Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove fairing side sections.
•
Remove upper section of fairing.
•
Remove fuel tank.
•
Remove windscreen adjuster.
•
Remove plug and cable of the instrument cluster.
•
Remove instrument cluster.
•
Remove connector strips, wiring harness and
cables from fairing bracket.
•
Remove the oil cooler fastener.
L
Note:
Take care not to damage the mudguard when laying
down the oil cooler.
46.18
•
Remove fairing bracket.
•
Installation is the reverse of the removal proce-
dure.
e
Attention:
Make sure that connector strips, wiring harness and
cables are correctly positioned (
X
Tightening torque:
Fairing bracket to frame ............................... 20 Nm
Fairing bracket to frame
with holder for horn ...................................... 20 Nm
R22460060
61.17).
a
