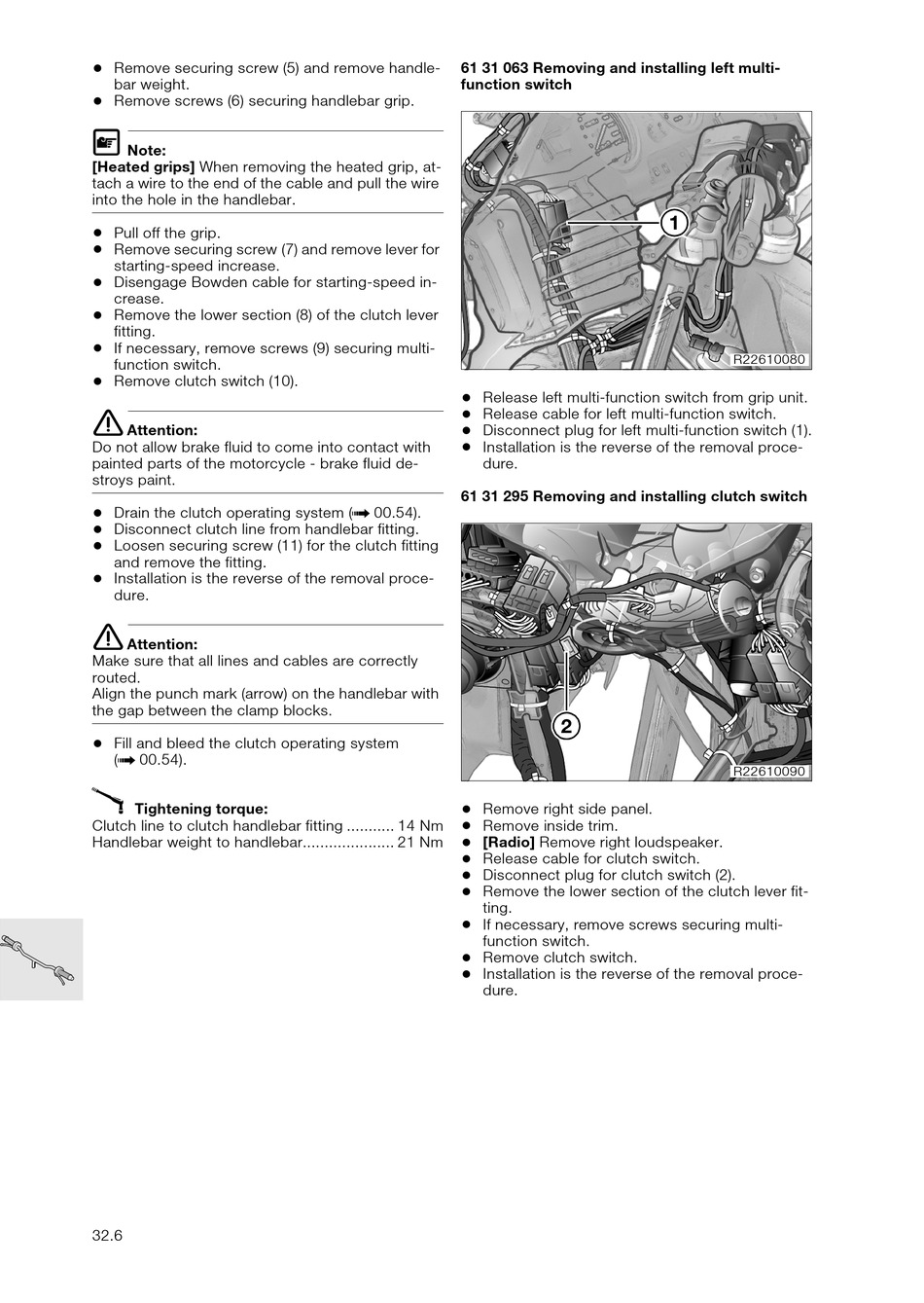

BMW R 1150 RT Repair Manual page 228

•
Remove securing screw (5) and remove handle-
bar weight.
•
Remove screws (6) securing handlebar grip.
L
Note:
[Heated grips] When removing the heated grip, at-
tach a wire to the end of the cable and pull the wire
into the hole in the handlebar.
•
Pull off the grip.
•
Remove securing screw (7) and remove lever for
starting-speed increase.
•
Disengage Bowden cable for starting-speed in-
crease.
•
Remove the lower section (8) of the clutch lever
fitting.
•
If necessary, remove screws (9) securing multi-
function switch.
•
Remove clutch switch (10).
e
Attention:
Do not allow brake fluid to come into contact with
painted parts of the motorcycle - brake fluid de-
stroys paint.
•
Drain the clutch operating system (
•
Disconnect clutch line from handlebar fitting.
•
Loosen securing screw (11) for the clutch fitting
and remove the fitting.
•
Installation is the reverse of the removal proce-
dure.
e
Attention:
Make sure that all lines and cables are correctly
routed.
Align the punch mark (arrow) on the handlebar with
the gap between the clamp blocks.
•
Fill and bleed the clutch operating system
( 00.54).
a
X
Tightening torque:
Clutch line to clutch handlebar fitting ........... 14 Nm
Handlebar weight to handlebar..................... 21 Nm
32.6
61 31 063 Removing and installing left multi-
function switch
•
Release left multi-function switch from grip unit.
•
Release cable for left multi-function switch.
•
Disconnect plug for left multi-function switch (1).
•
Installation is the reverse of the removal proce-
dure.
61 31 295 Removing and installing clutch switch
00.54).
a
•
Remove right side panel.
•
Remove inside trim.
•
[Radio] Remove right loudspeaker.
•
Release cable for clutch switch.
•
Disconnect plug for clutch switch (2).
•
Remove the lower section of the clutch lever fit-
ting.
•
If necessary, remove screws securing multi-
function switch.
•
Remove clutch switch.
•
Installation is the reverse of the removal proce-
dure.
