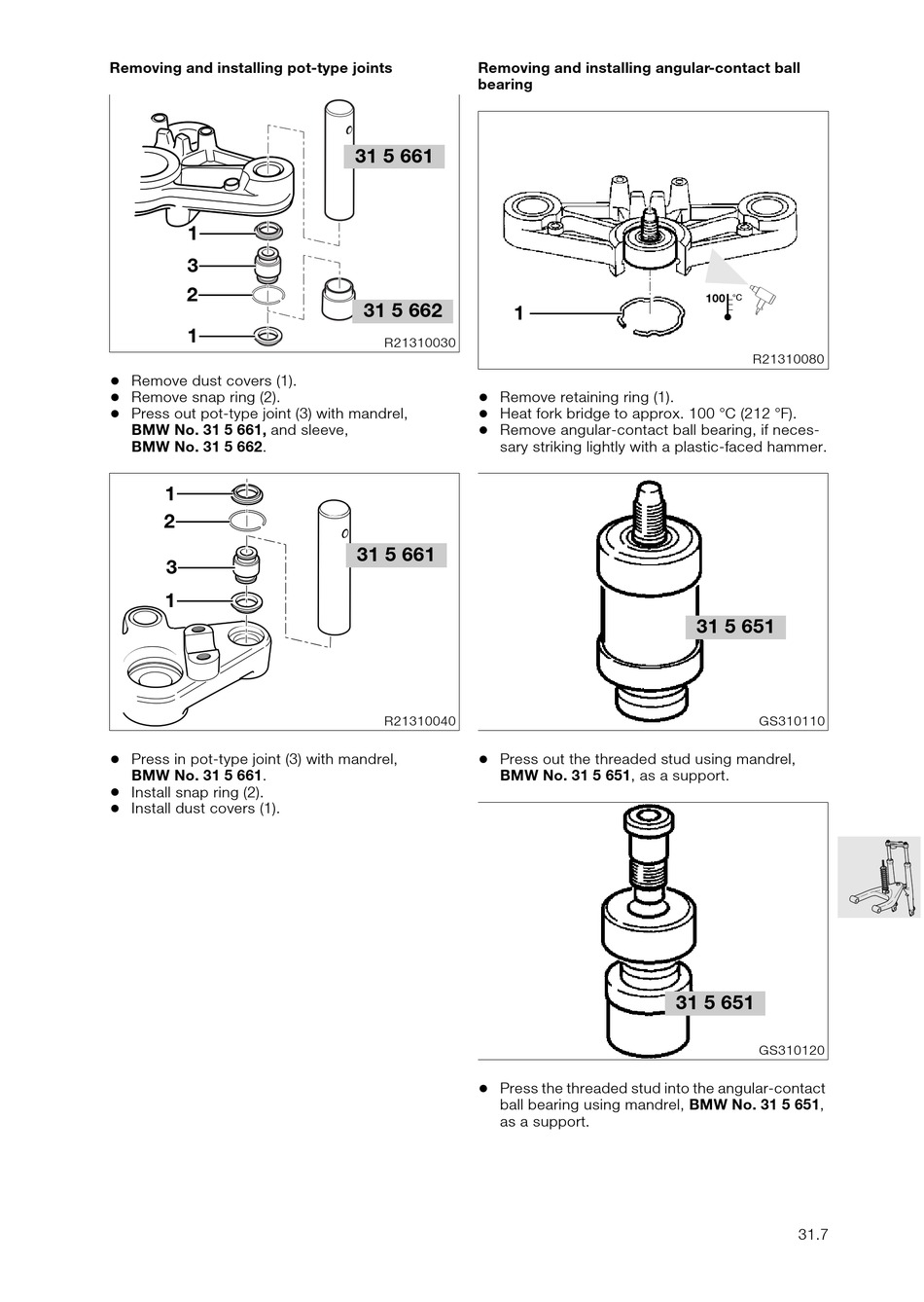

Removing and installing pot-type joints

1
3
2
1
•
Remove dust covers (1).
•
Remove snap ring (2).
•
Press out pot-type joint (3) with mandrel,
BMW No. 31 5 661, and sleeve,
BMW No. 31 5 662.
1
2
3
1
•
Press in pot-type joint (3) with mandrel,
BMW No. 31 5 661.
•
Install snap ring (2).
•
Install dust covers (1).
Removing and installing angular-contact ball
bearing
31 5 661
31 5 662
1
R21310030
•
Remove retaining ring (1).
•
Heat fork bridge to approx. 100 °C (212 °F).
•
Remove angular-contact ball bearing, if neces-
sary striking lightly with a plastic-faced hammer.
31 5 661
R21310040
•
Press out the threaded stud using mandrel,
BMW No. 31 5 651, as a support.
•
Press the threaded stud into the angular-contact
ball bearing using mandrel, BMW No. 31 5 651,
as a support.
h
100
R21310080
31 5 651
GS310110
31 5 651
GS310120
