Installing Alternator Mount Cover; Installing Magnetic Gate/Belt Pulley - BMW R 1150 RT Repair Manual

u
Installing alternator mount
11 11 045
cover
•
Place assembly sleeve, BMW No. 11 5 680, on
crankshaft.
•
Clean and degrease sealing face (arrow) and ap-
ply 3-Bond 1209.
•
Install alternator mount cover.
X
Tightening torque:
M 8 screw .................................................... 20 Nm
M 6 screw ..................................................... 9 Nm
Installing magnetic gate/belt pul-
12 11
ley
•
Install Hall-effect trigger plate (1).
•
Install locking device, BMW No. 11 5 640, to
lock clutch housing.
•
Secure rotor (2) of Hall-effect gate to the poly-V
belt pulley (3) with, for example, Loctite instant
adhesive.
e
Attention:
Seat retainer (4) for Hall-effect gate rotor in groove
in crankshaft (5).
•
Install the poly-V belt pulley.
X
Tightening torque:
Pulley screw ................................................. 50 Nm
5

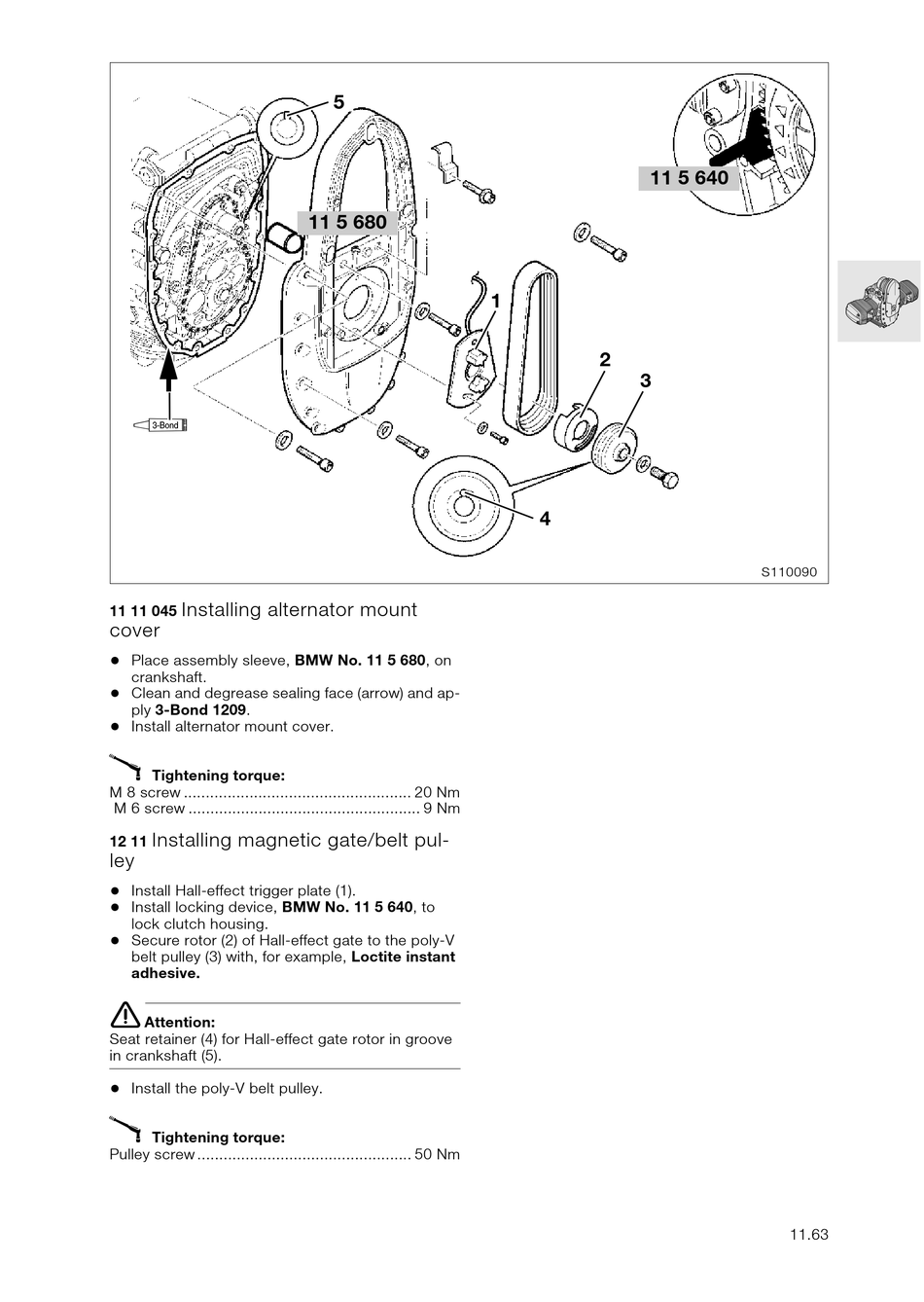

11 5 680
