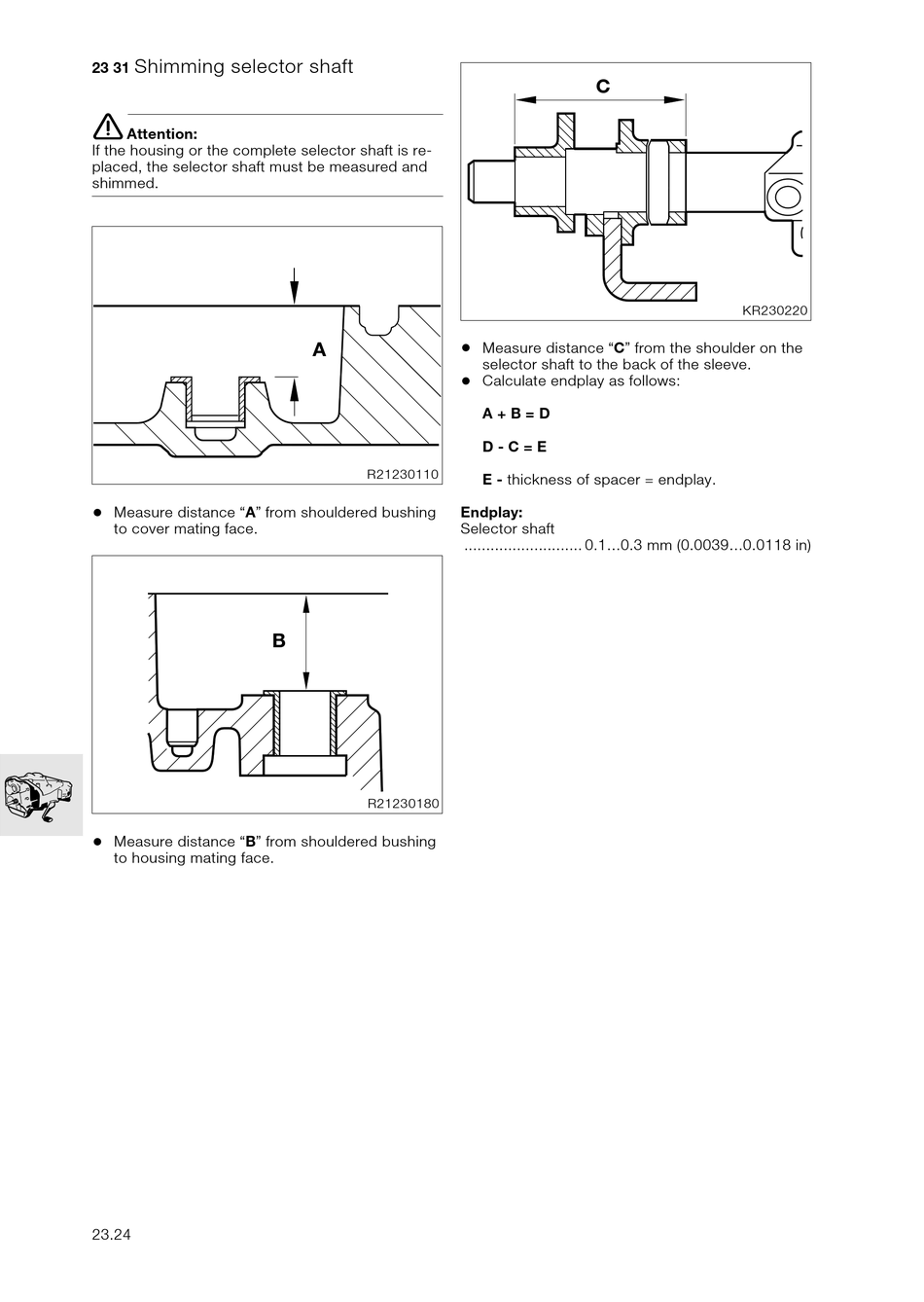

Shimming selector shaft

23 31
e
Attention:
If the housing or the complete selector shaft is re-
placed, the selector shaft must be measured and
shimmed.
•
Measure distance "A" from shouldered bushing
to cover mating face.
•
Measure distance "B" from shouldered bushing
to housing mating face.
23.24
A
R21230110
B
R21230180
C
•
Measure distance "C" from the shoulder on the
selector shaft to the back of the sleeve.
•
Calculate endplay as follows:
A + B = D
D - C = E
E - thickness of spacer = endplay.
Endplay:
Selector shaft
........................... 0.1...0.3 mm (0.0039...0.0118 in)
