Tensioning poly-V belt

00 12 610

(Inspection II)

Retension new poly-V belt once after
10,000 km (6,000 miles)
e
Attention:
Work on the poly-V belt only when the engine is
cold.
•
Remove left side fairing panel.
•
Remove front intake pipe.
•
Disengage fairing bracket from end cover on left.
•
Remove front cover (1).

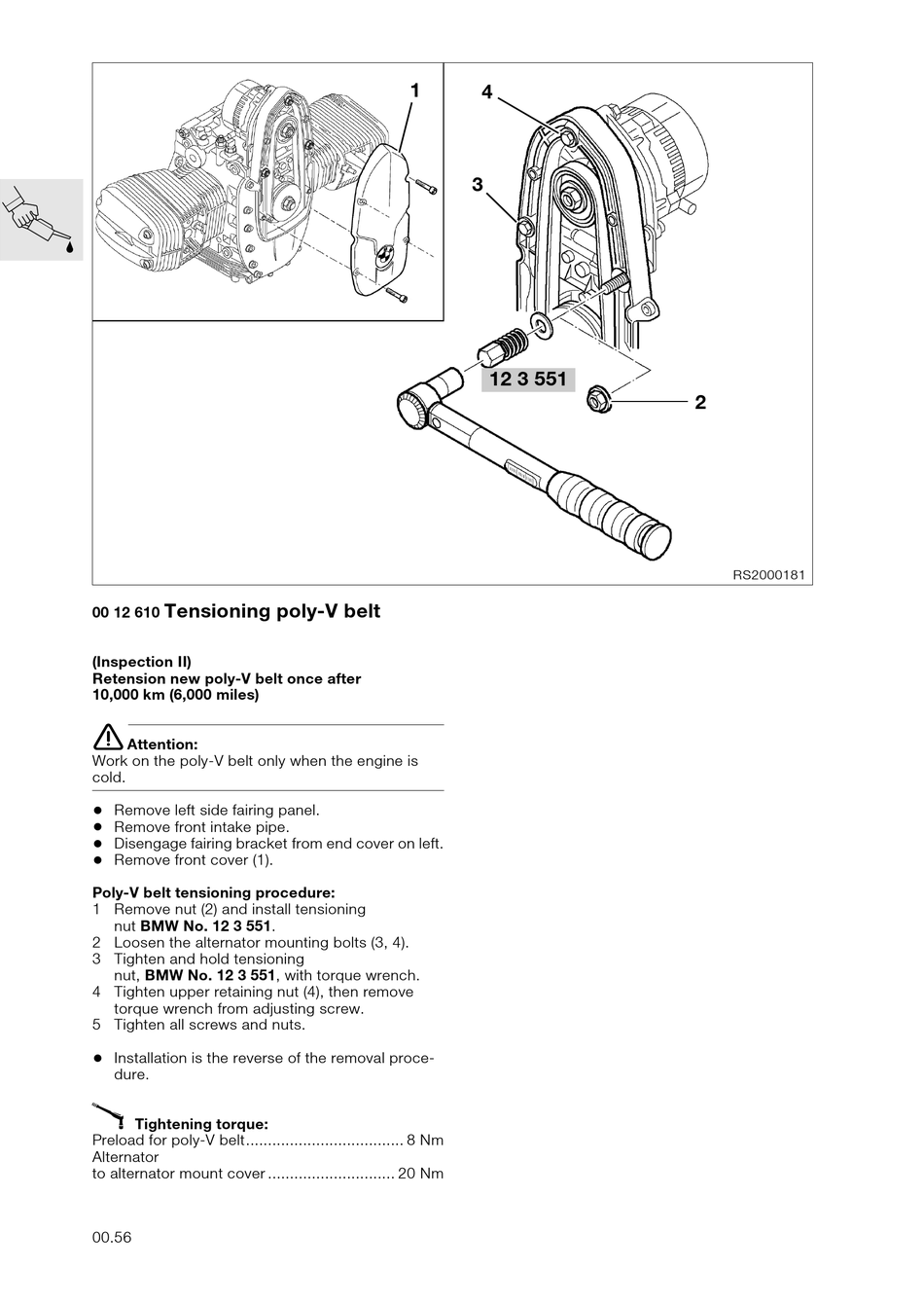

Poly-V belt tensioning procedure:
1 Remove nut (2) and install tensioning
nut BMW No. 12 3 551.
2 Loosen the alternator mounting bolts (3, 4).
3 Tighten and hold tensioning
nut, BMW No. 12 3 551, with torque wrench.
4 Tighten upper retaining nut (4), then remove
torque wrench from adjusting screw.
5 Tighten all screws and nuts.
•
Installation is the reverse of the removal proce-
dure.
X
Tightening torque:
Preload for poly-V belt.................................... 8 Nm
Alternator
to alternator mount cover ............................. 20 Nm
00.56
1
4
3
12 3 551
2
