Installing auxiliary frame (raising frame unit clear
of engine)
•
Remove rear wheel.
•
Remove hydraulic spring-strut adjuster.
•
Support the rear swinging arm.
•
Heat bottom fastener of spring strut to
max. 120 °C (248 °F) and remove.
•
Remove rear spring strut.
•
Install the rear wheel.
•
Remove the upper securing screw and the bot-
tom bolt of the engine/frame connecting strut (1).
e
Attention:
Use adhesive tape to mask the fuel tank anchorage
and protect it against scratches.
•

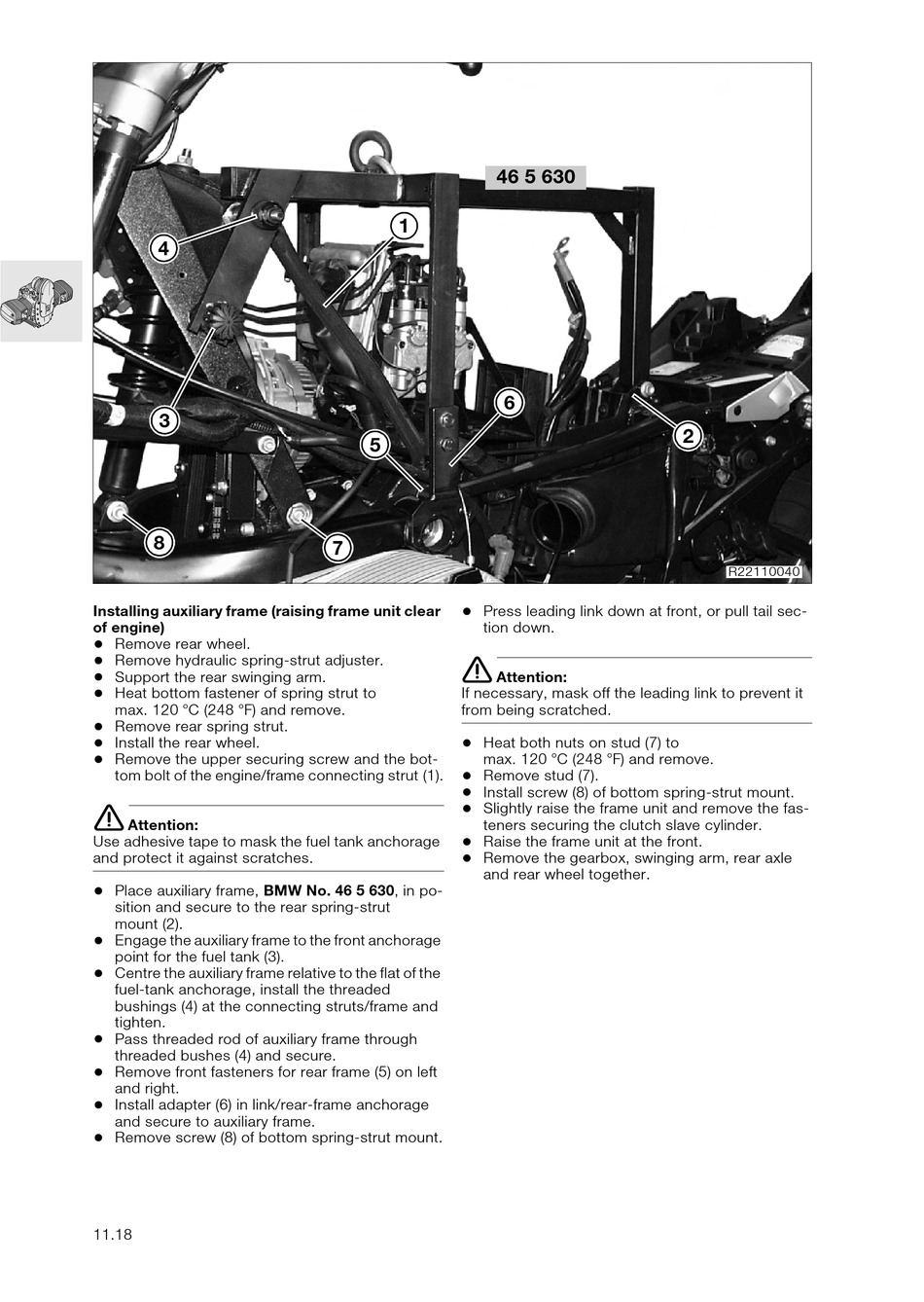

Place auxiliary frame, BMW No. 46 5 630, in po-
sition and secure to the rear spring-strut
mount (2).
•
Engage the auxiliary frame to the front anchorage
point for the fuel tank (3).
•
Centre the auxiliary frame relative to the flat of the
fuel-tank anchorage, install the threaded
bushings (4) at the connecting struts/frame and
tighten.
•
Pass threaded rod of auxiliary frame through
threaded bushes (4) and secure.
•
Remove front fasteners for rear frame (5) on left
and right.
•
Install adapter (6) in link/rear-frame anchorage
and secure to auxiliary frame.
•
Remove screw (8) of bottom spring-strut mount.
11.18
46 5 630
1
6
5
7
•
Press leading link down at front, or pull tail sec-
tion down.
e
Attention:
If necessary, mask off the leading link to prevent it
from being scratched.
•
Heat both nuts on stud (7) to
max. 120 °C (248 °F) and remove.
•
Remove stud (7).
•
Install screw (8) of bottom spring-strut mount.
•
Slightly raise the frame unit and remove the fas-
teners securing the clutch slave cylinder.
•
Raise the frame unit at the front.
•
Remove the gearbox, swinging arm, rear axle
and rear wheel together.
