Removing and installing upper
46 63
section of fairing
e
Attention:
Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove the seat.
•
Remove side mirrors.
•
Remove fairing side sections.
•
Remove windscreen.
•
Remove cover for windscreen adjuster.
•
Remove inner trim of fairing.
•
Remove left loudspeaker box.
•
Remove aerial.
•
Remove the sidelight from the headlight housing.
•
Feed left and right turn-indicator cables through
the fairing.
•

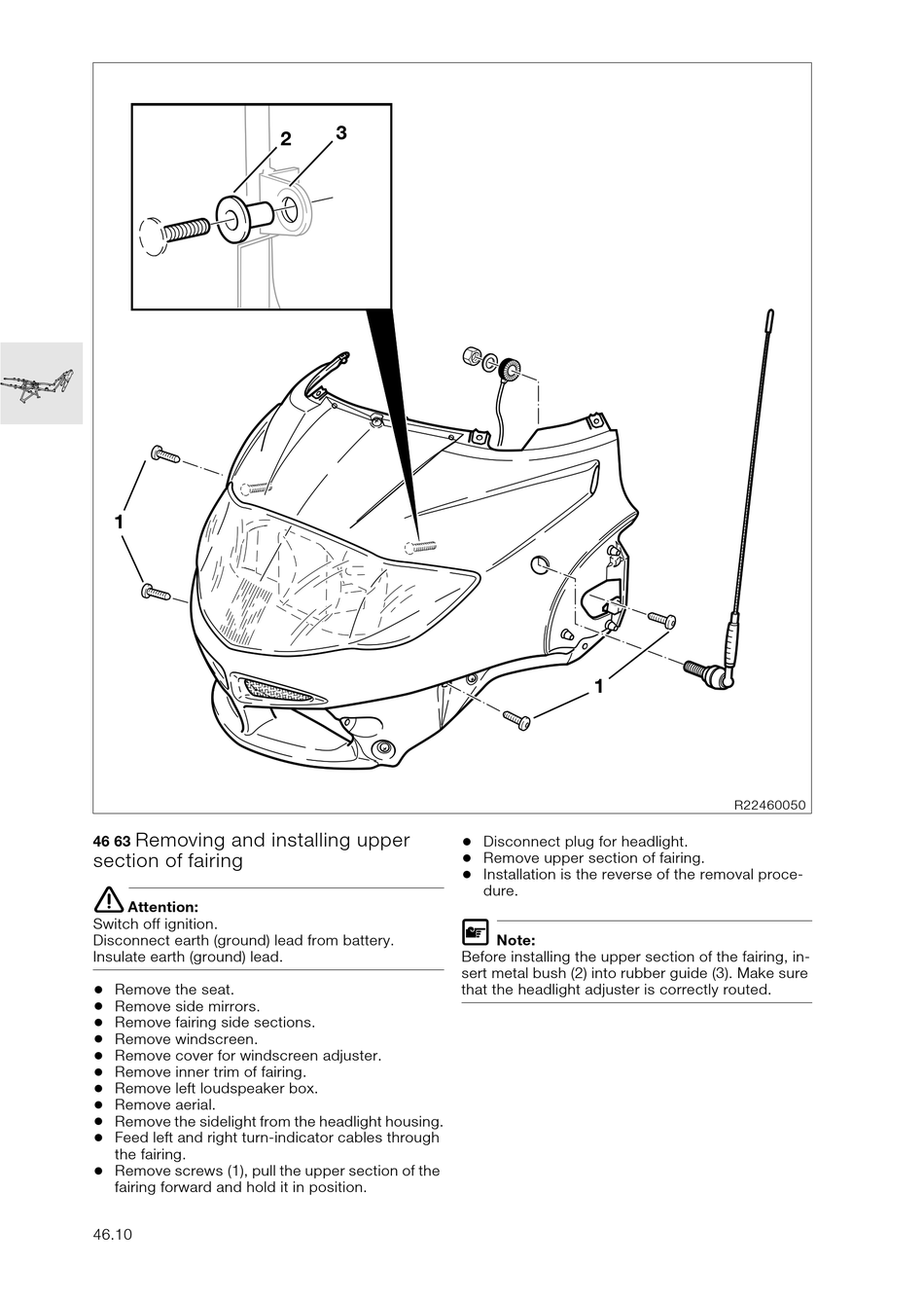

Remove screws (1), pull the upper section of the
fairing forward and hold it in position.
46.10
3
2
1
•
Disconnect plug for headlight.
•
Remove upper section of fairing.
•
Installation is the reverse of the removal proce-
dure.
L
Note:
Before installing the upper section of the fairing, in-
sert metal bush (2) into rubber guide (3). Make sure
that the headlight adjuster is correctly routed.
