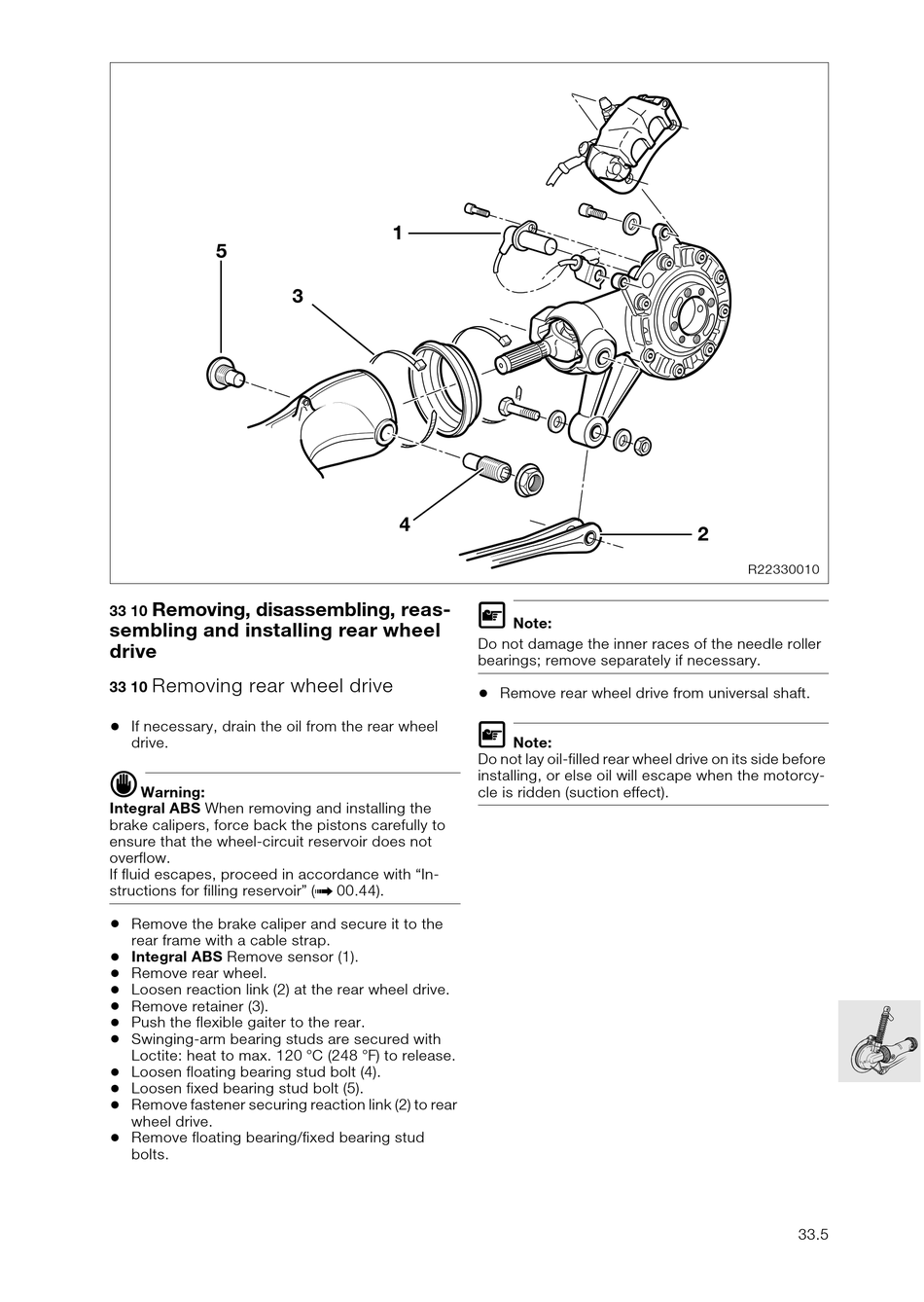

Removing, disassembling, reas-
33 10
sembling and installing rear wheel
drive

Removing rear wheel drive

33 10
•
If necessary, drain the oil from the rear wheel
drive.
d
Warning:
Integral ABS When removing and installing the
brake calipers, force back the pistons carefully to
ensure that the wheel-circuit reservoir does not
overflow.
If fluid escapes, proceed in accordance with "In-
structions for filling reservoir" (
•
Remove the brake caliper and secure it to the
rear frame with a cable strap.
•
Integral ABS Remove sensor (1).
•
Remove rear wheel.
•
Loosen reaction link (2) at the rear wheel drive.
•
Remove retainer (3).
•
Push the flexible gaiter to the rear.
•
Swinging-arm bearing studs are secured with
Loctite: heat to max. 120 °C (248 °F) to release.
•
Loosen floating bearing stud bolt (4).
•
Loosen fixed bearing stud bolt (5).
•
Remove fastener securing reaction link (2) to rear
wheel drive.
•
Remove floating bearing/fixed bearing stud
bolts.
1
3
4
00.44).
a
L
Note:
Do not damage the inner races of the needle roller
bearings; remove separately if necessary.
•
Remove rear wheel drive from universal shaft.
L
Note:
Do not lay oil-filled rear wheel drive on its side before
installing, or else oil will escape when the motorcy-
cle is ridden (suction effect).
2
R22330010
33.5
