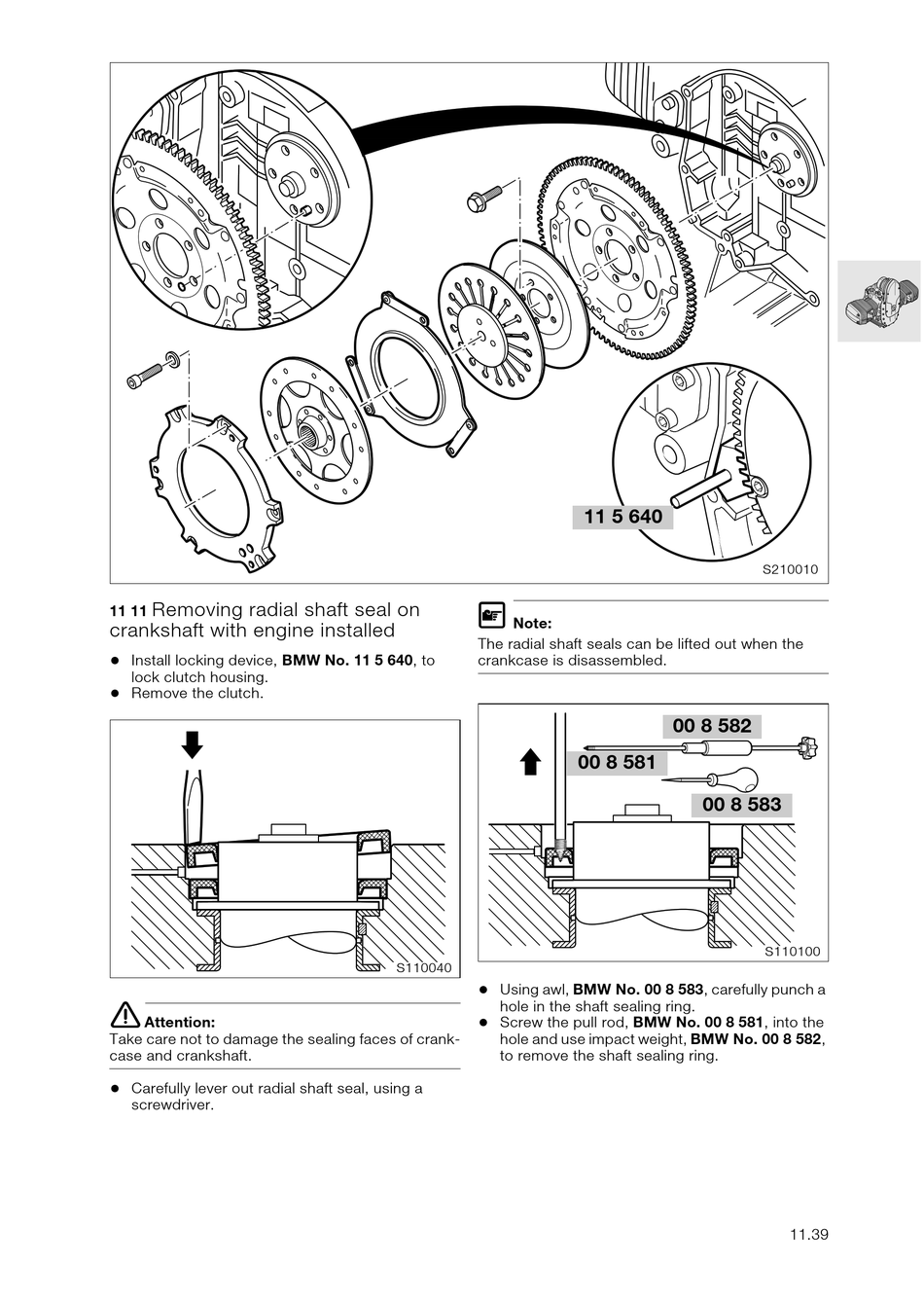

Removing radial shaft seal on
11 11
crankshaft with engine installed
•
Install locking device, BMW No. 11 5 640, to
lock clutch housing.
•
Remove the clutch.
e
Attention:
Take care not to damage the sealing faces of crank-
case and crankshaft.
•
Carefully lever out radial shaft seal, using a
screwdriver.
L
Note:
The radial shaft seals can be lifted out when the
crankcase is disassembled.
S110040
•
Using awl, BMW No. 00 8 583, carefully punch a
hole in the shaft sealing ring.
•
Screw the pull rod, BMW No. 00 8 581, into the
hole and use impact weight, BMW No. 00 8 582,
to remove the shaft sealing ring.
11 5 640
00 8 582
00 8 581
00 8 583
S210010
S110100
11.39
