2x
Removing and installing fairing
46 63

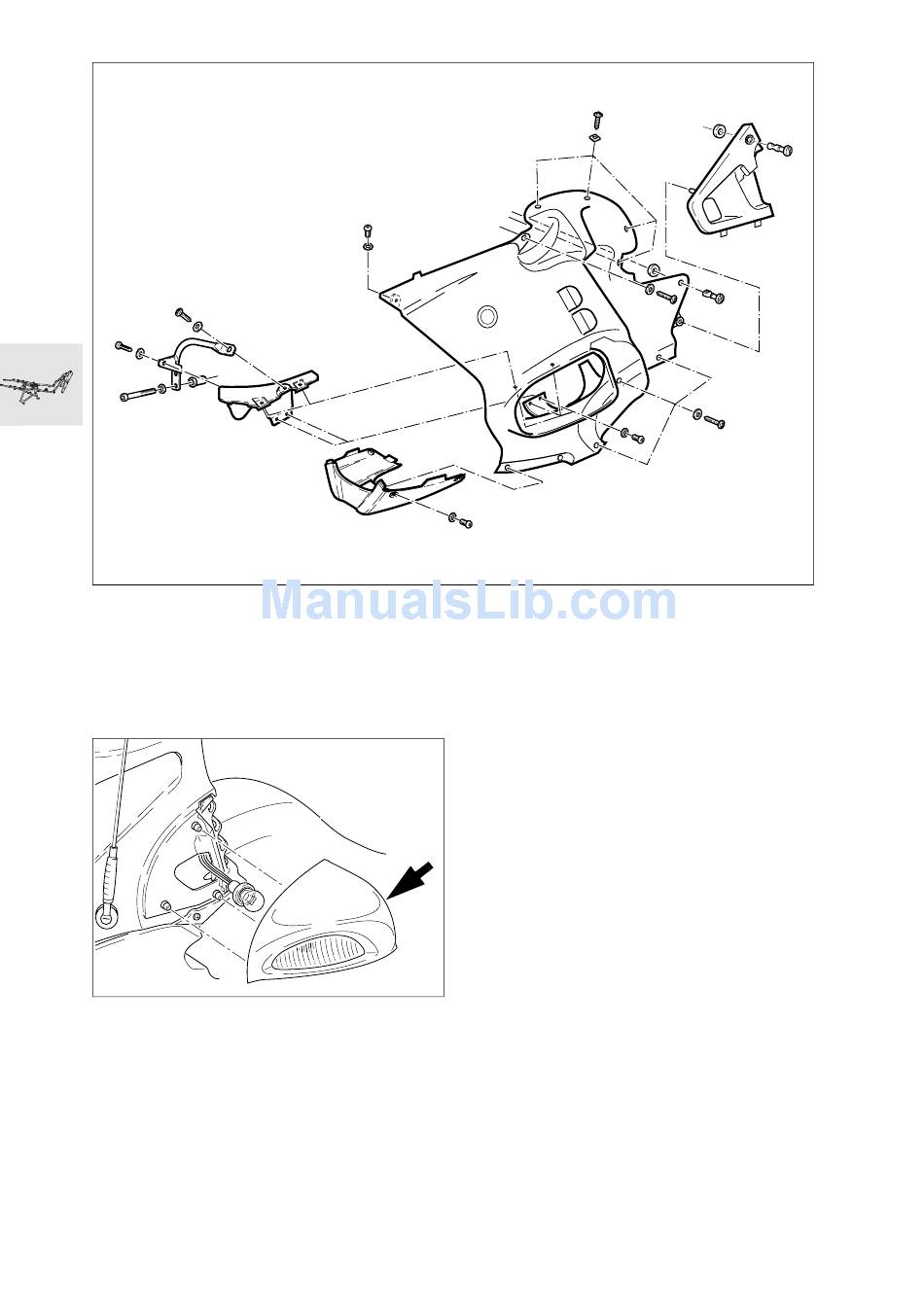

Removing and installing fairing
46 63
side section
•
Remove seat.
•
Remove small side fairing panels.
•
Hold side mirror with one hand. Release the mir-
ror by tapping lightly with the other hand on the
mirror casing in the direction of the mirror.
•
Remove engine spoiler.
•
Remove fairing side sections.
46.8
4x
•
Installation is the reverse of the removal proce-
dure.
•
Position the mirror at the 3 attachment points.
Tap the mirror housing gently to engage it, first at
the front and then at the rear.
RT460280
4x
4x
3x
R22460020
