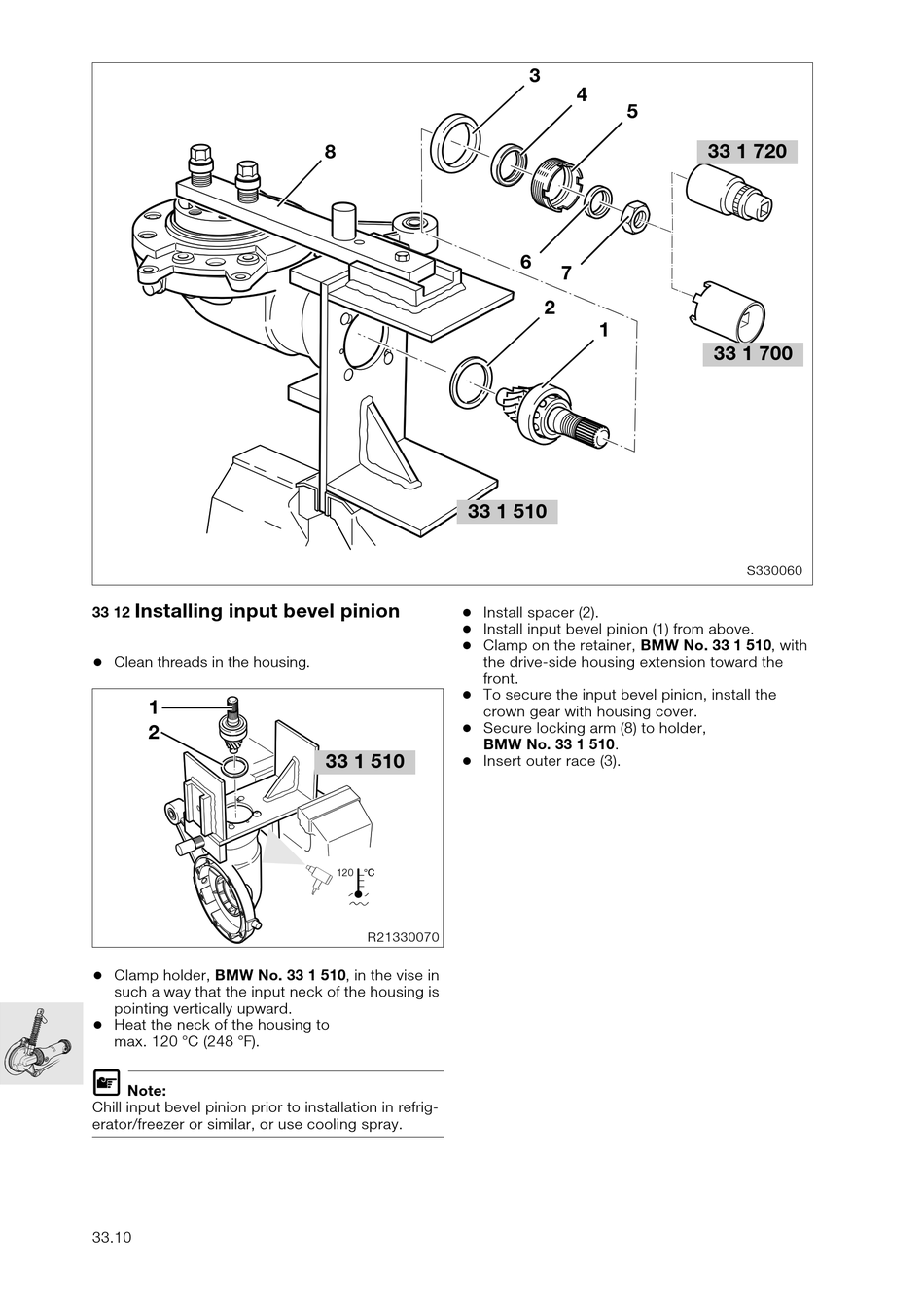

Installing input bevel pinion

33 12
•
Clean threads in the housing.
1
2
•
Clamp holder, BMW No. 33 1 510, in the vise in
such a way that the input neck of the housing is
pointing vertically upward.
•
Heat the neck of the housing to
max. 120 °C (248 °F).
L
Note:
Chill input bevel pinion prior to installation in refrig-
erator/freezer or similar, or use cooling spray.
33.10
8
33 1 510
•
Install spacer (2).
•
Install input bevel pinion (1) from above.
•
Clamp on the retainer, BMW No. 33 1 510, with
the drive-side housing extension toward the
front.
•
To secure the input bevel pinion, install the
crown gear with housing cover.
•
Secure locking arm (8) to holder,
BMW No. 33 1 510.
•
