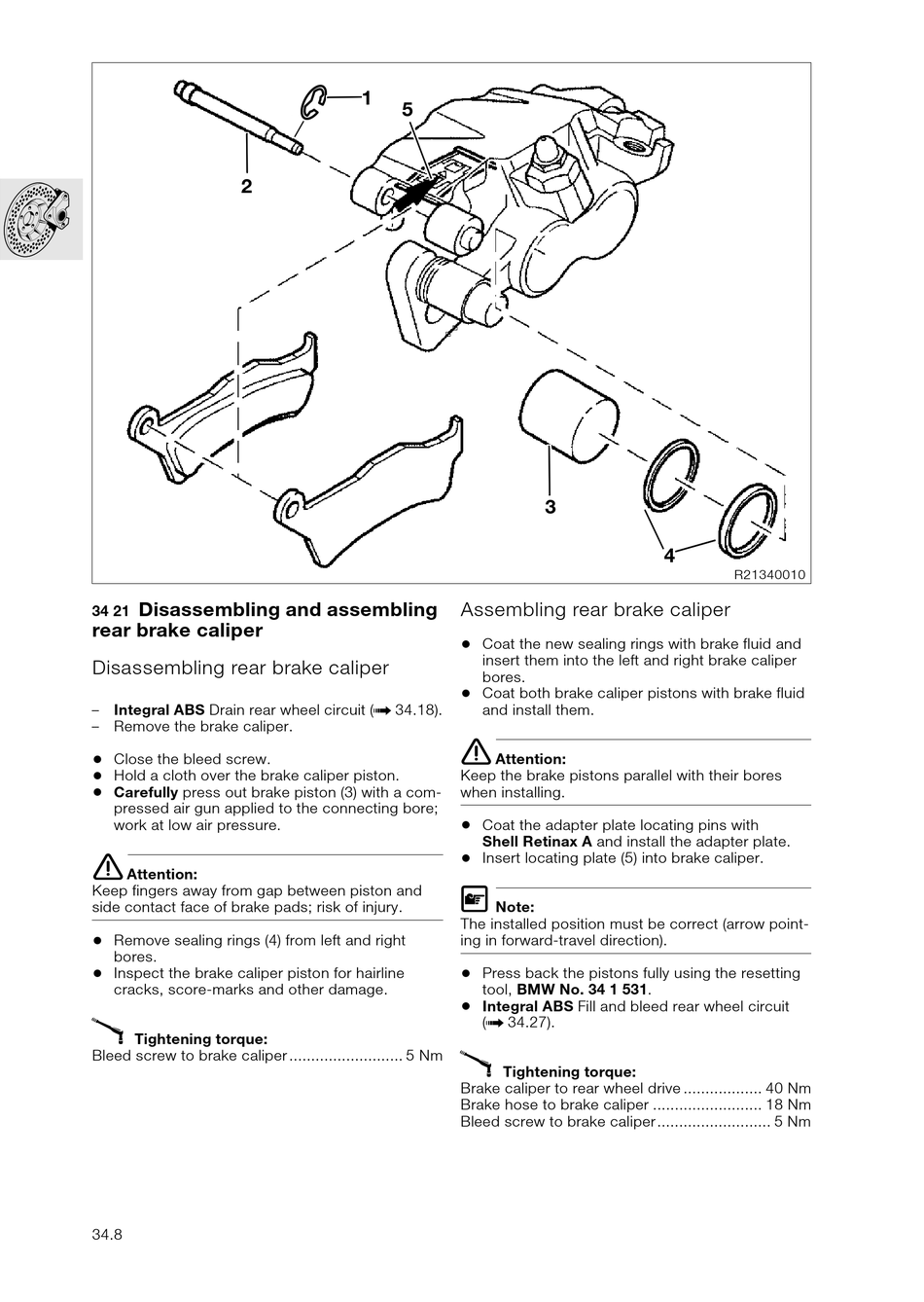

Disassembling and assembling
34 21
rear brake caliper
Disassembling rear brake caliper
– Integral ABS Drain rear wheel circuit (
– Remove the brake caliper.
•
Close the bleed screw.
•
Hold a cloth over the brake caliper piston.
•
Carefully press out brake piston (3) with a com-
pressed air gun applied to the connecting bore;
work at low air pressure.
e
Attention:
Keep fingers away from gap between piston and
side contact face of brake pads; risk of injury.
•
Remove sealing rings (4) from left and right
bores.
•
Inspect the brake caliper piston for hairline
cracks, score-marks and other damage.
X
Tightening torque:
Bleed screw to brake caliper .......................... 5 Nm
34.8
1
5
Assembling rear brake caliper
•
Coat the new sealing rings with brake fluid and
insert them into the left and right brake caliper
bores.
•
Coat both brake caliper pistons with brake fluid
34.18). and install them.
a
e
Attention:
Keep the brake pistons parallel with their bores
when installing.
•
Coat the adapter plate locating pins with
Shell Retinax A and install the adapter plate.
•
Insert locating plate (5) into brake caliper.
L
Note:
The installed position must be correct (arrow point-
ing in forward-travel direction).
•
Press back the pistons fully using the resetting
tool, BMW No. 34 1 531.
•
Integral ABS Fill and bleed rear wheel circuit
( 34.27).
a
X
Tightening torque:
Brake caliper to rear wheel drive .................. 40 Nm
Brake hose to brake caliper ......................... 18 Nm
Bleed screw to brake caliper .......................... 5 Nm
3
4
