Disassembling and assembling
23 12
input shaft

Disassembling input shaft

00 7 500
•

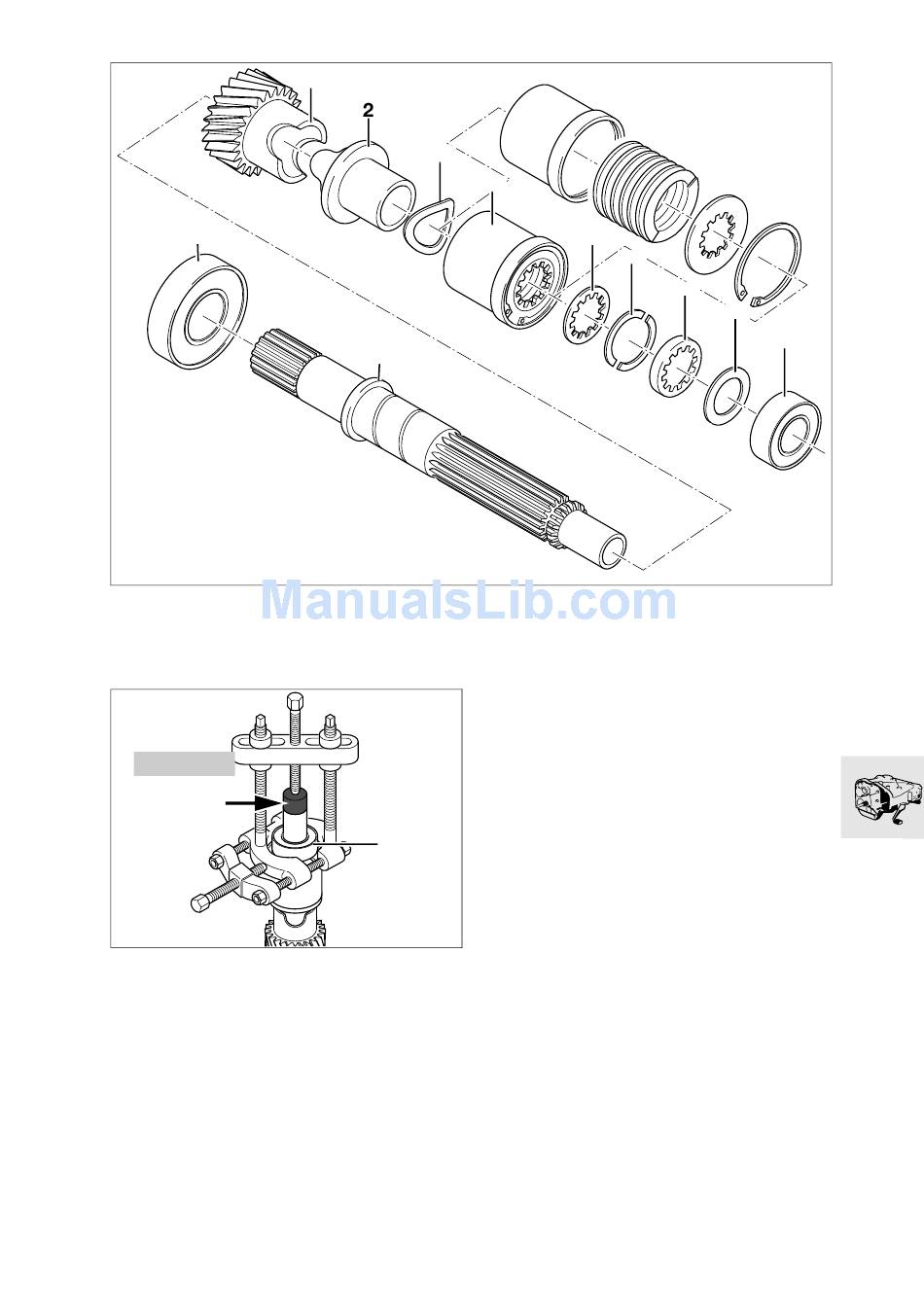

Clamp the input shaft into a vise with soft jaws.
•
Use universal puller, BMW No. 00 7 500, and
pressure head (arrow) to pull off grooved ball
bearing (9) with spacing washer (8).
•
Note the thickness of spacing washer (8).
•
Remove retaining ring (7).
•
Compress spring cluster (4) and remove
keepers (6).
•
Remove spacer (5), spring cluster (4), anti-rattle
disc (3), thrust block (2) and constant-speed
gear (1).
•
Clamp input shaft (10) other way round in vise.
1
3
10
9
KR230090
4
5
6
•
Use universal puller, BMW No. 00 7 500, and
pressure head (arrow) to pull off grooved ball
bearing (11).
7
8
9
R21230080
