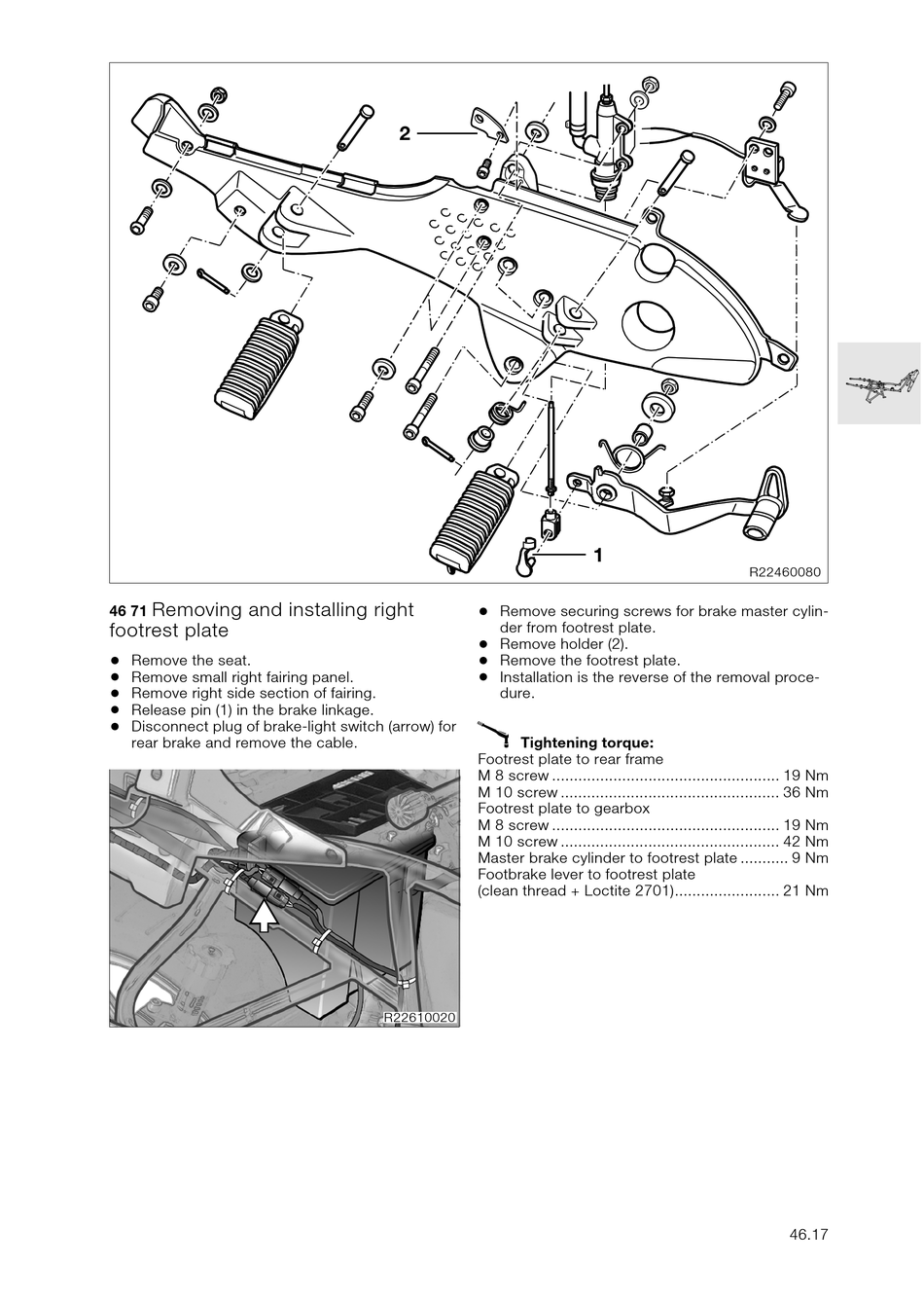

BMW R 1150 RT Repair Manual page 323

Removing and installing right
46 71
footrest plate
•
Remove the seat.
•
Remove small right fairing panel.
•
Remove right side section of fairing.
•
Release pin (1) in the brake linkage.
•
Disconnect plug of brake-light switch (arrow) for
rear brake and remove the cable.
2
•
Remove securing screws for brake master cylin-
der from footrest plate.
•
Remove holder (2).
•
Remove the footrest plate.
•
Installation is the reverse of the removal proce-
dure.
X
Tightening torque:
Footrest plate to rear frame
M 8 screw .................................................... 19 Nm
M 10 screw .................................................. 36 Nm
Footrest plate to gearbox
M 8 screw .................................................... 19 Nm
M 10 screw .................................................. 42 Nm
Master brake cylinder to footrest plate ........... 9 Nm
Footbrake lever to footrest plate
(clean thread + Loctite 2701)........................ 21 Nm
