X
Tightening torque:
Pivot mount to engine, right, M 12 screw
(clean thread + Loctite 2701)........................ 72 Nm
Pivot mount to engine, left
M 12 screw
(clean thread + Loctite 2701)........................ 72 Nm
M 8 screw
(clean thread + Loctite 2701)....................... 21 Nm
Pivot mount of main (centre) stand (stud bolt)
(clean thread + Loctite 243).......................... 21 Nm
Pivot mount of main stand,
(cheesehead screw) ..................................... 21 Nm
Side stand to pivot mount
(clean thread + Loctite 2701)........................ 58 Nm

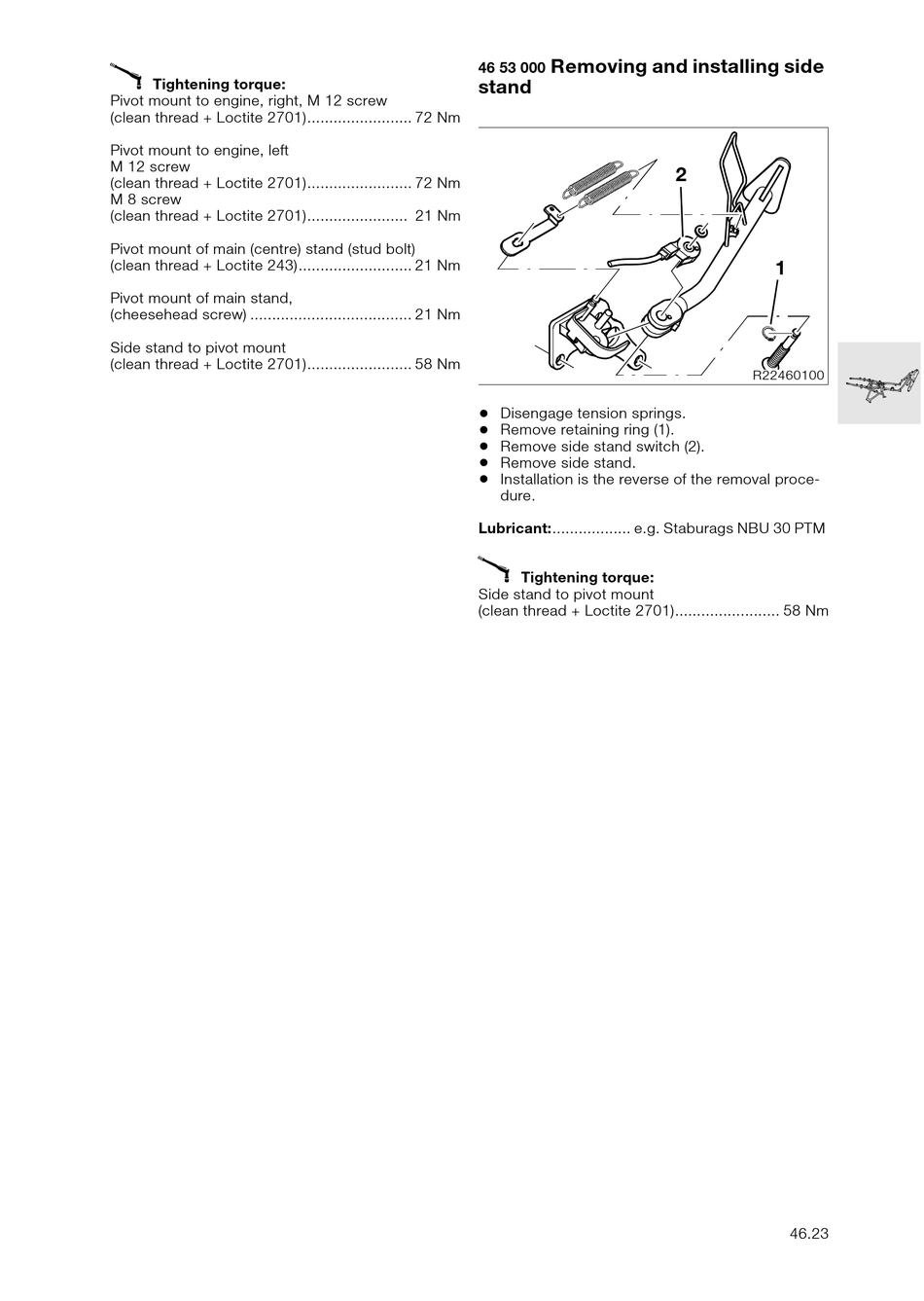

Removing and installing side
46 53 000
stand
•
Disengage tension springs.
•
Remove retaining ring (1).
•
Remove side stand switch (2).
•
Remove side stand.
•
Installation is the reverse of the removal proce-
dure.
Lubricant:.................. e.g. Staburags NBU 30 PTM
X
Tightening torque:
Side stand to pivot mount
(clean thread + Loctite 2701)........................ 58 Nm
2
1
R22460100
46.23
