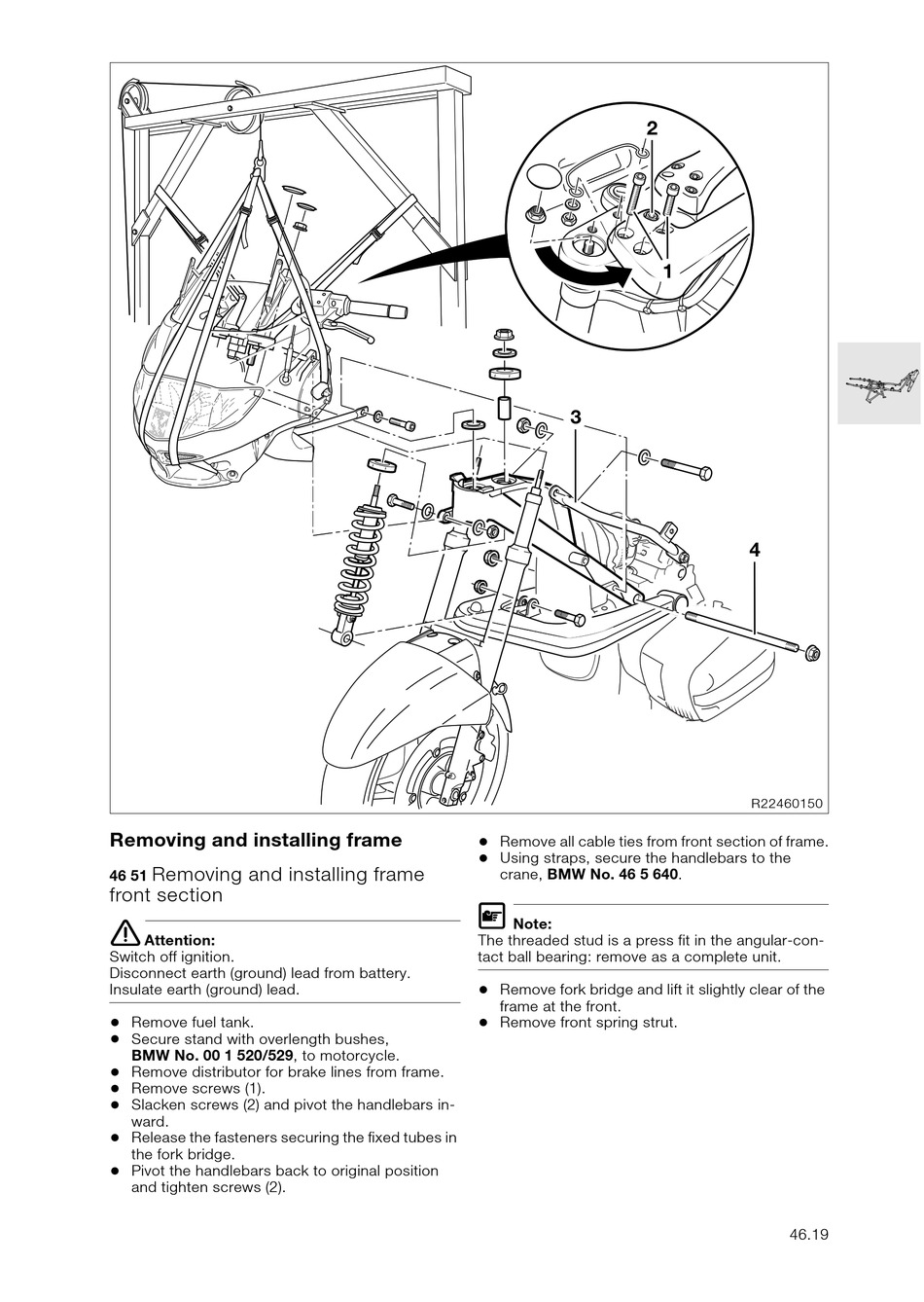

Removing and installing frame

Removing and installing frame
46 51
front section
e
Attention:
Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove fuel tank.
•
Secure stand with overlength bushes,
BMW No. 00 1 520/529, to motorcycle.
•
Remove distributor for brake lines from frame.
•
Remove screws (1).
•
Slacken screws (2) and pivot the handlebars in-
ward.
•
Release the fasteners securing the fixed tubes in
the fork bridge.
•
Pivot the handlebars back to original position
and tighten screws (2).
2
3
•
Remove all cable ties from front section of frame.
•
Using straps, secure the handlebars to the
crane, BMW No. 46 5 640.
L
Note:
The threaded stud is a press fit in the angular-con-
tact ball bearing: remove as a complete unit.
•
Remove fork bridge and lift it slightly clear of the
frame at the front.
•
Remove front spring strut.
1
4
R22460150
46.19
