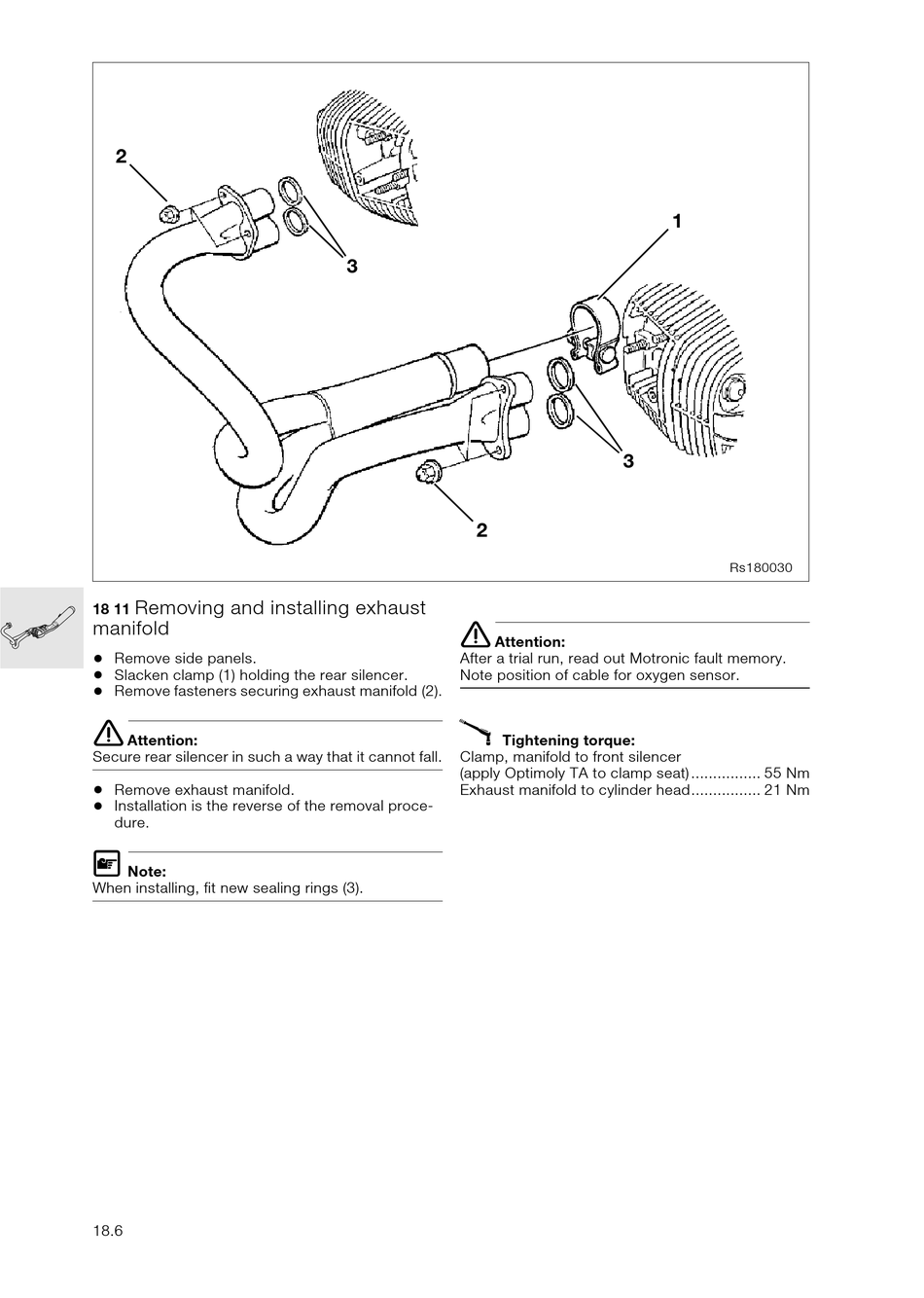

Removing and installing exhaust
18 11
manifold
•
Remove side panels.
•
Slacken clamp (1) holding the rear silencer.
•
Remove fasteners securing exhaust manifold (2).
e
Attention:
Secure rear silencer in such a way that it cannot fall.
•
Remove exhaust manifold.
•
Installation is the reverse of the removal proce-
dure.
L
Note:
When installing, fit new sealing rings (3).
18.6
3
2
e
Attention:
After a trial run, read out Motronic fault memory.
Note position of cable for oxygen sensor.
X
Tightening torque:
Clamp, manifold to front silencer
(apply Optimoly TA to clamp seat) ................ 55 Nm
Exhaust manifold to cylinder head................ 21 Nm
1
.
3
Rs180030
