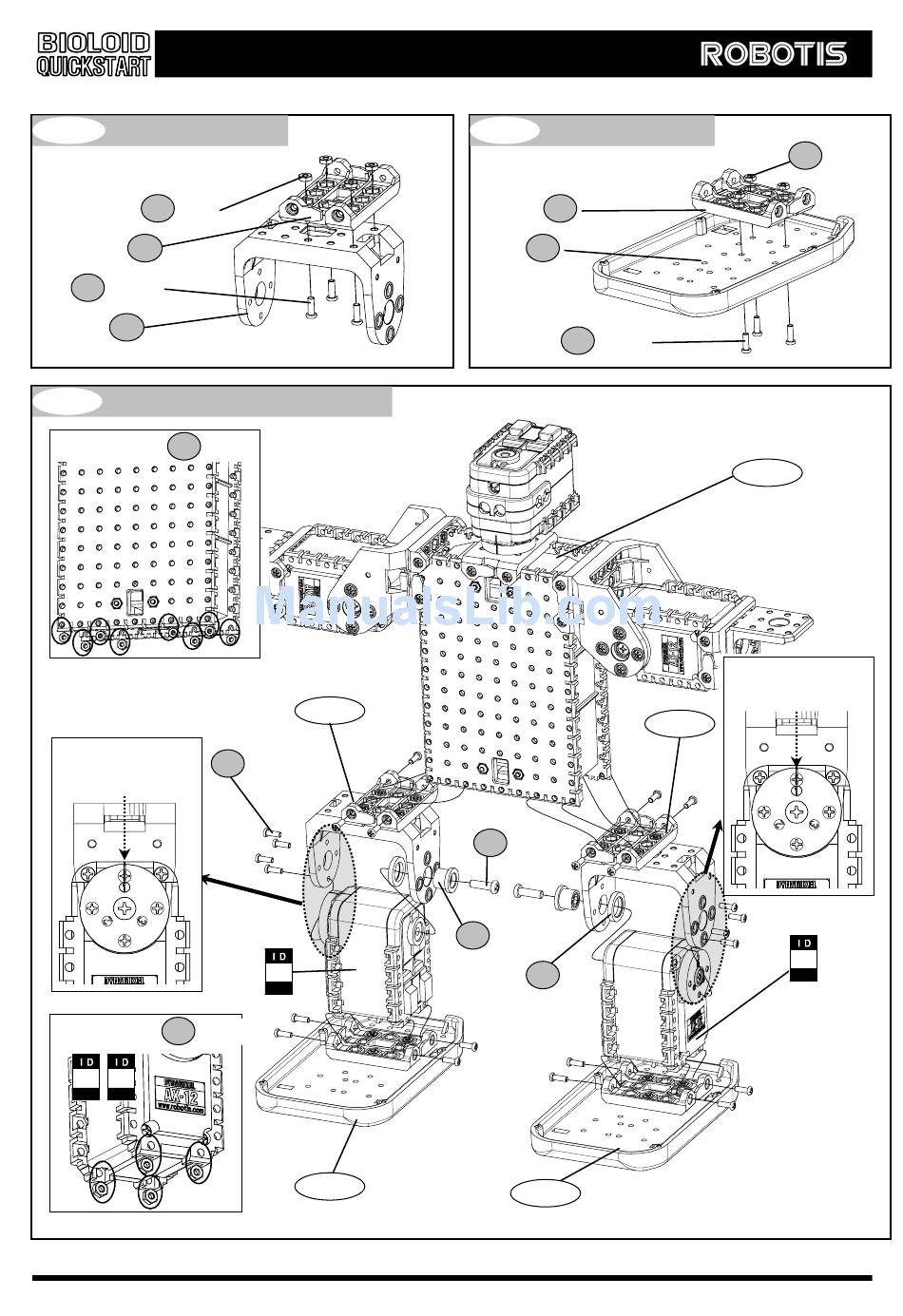

Comprehensive Kit Robot Series
Leg : 2 sets
Step 5
※Assemble 2 sets in a same
style.
: 4pcs
N1
F3
: 4pcs
S1
F2
Lower Part of Body Assembly
Step 7
※Insert nuts
N1 : 8pcs
※Check
assembly point
※Insert nuts
N1 : 8pcs
3 4
motor motor
Step 5
S1 : 24pcs
3
motor
Step 6
Foot : 2 sets
Step 6
※Assemble 2 sets in a same
style.
F3
F12
S1 : 3pcs
: 2pcs
S-B
BU : 2pcs
WA
: 2pcs
Step 6
65
N1 : 3pcs
Step 4
※Check
assembly point
Step 5
4
motor
