Comprehensive Kit Robot Series

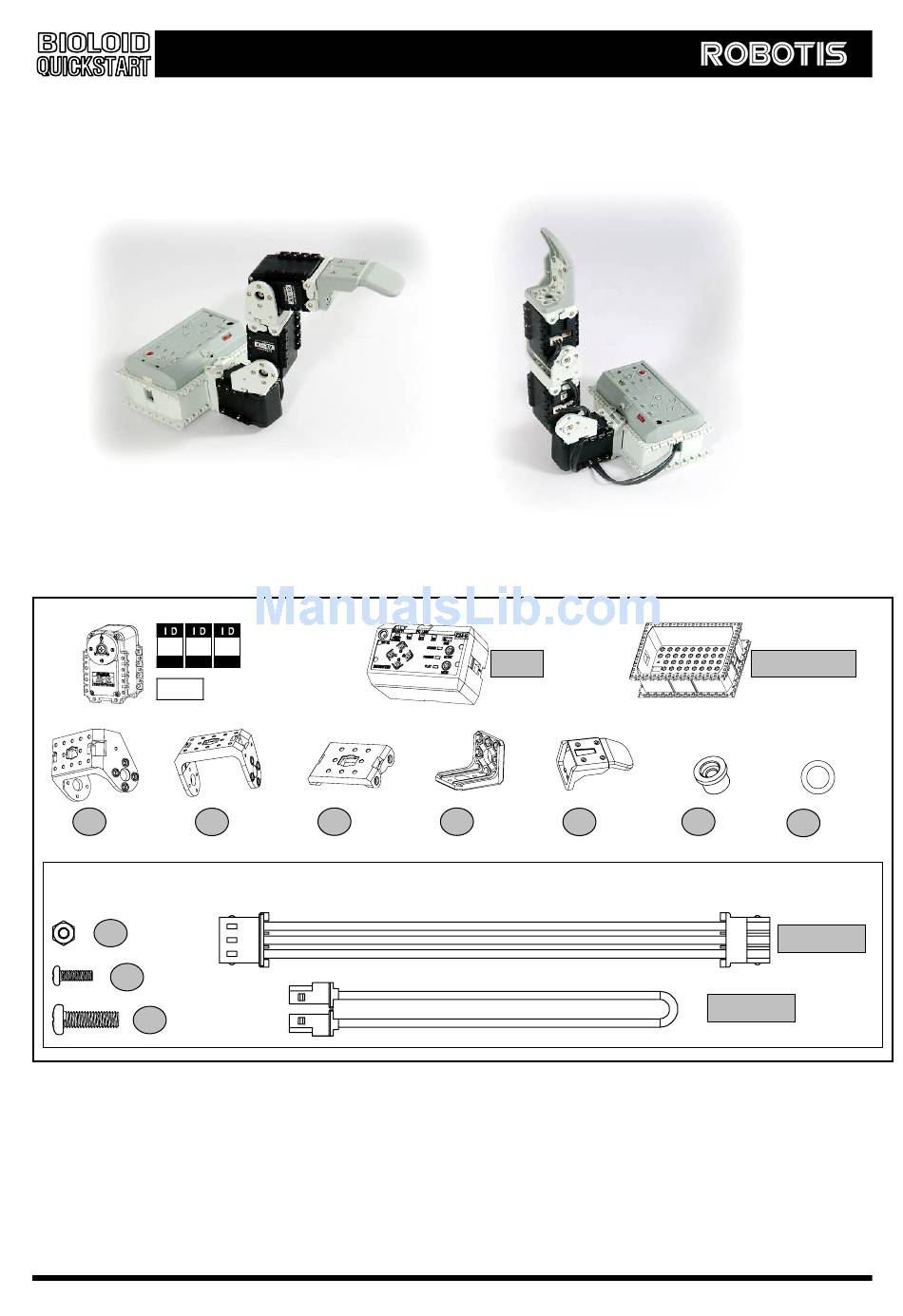

２-２-８. Robot Arm
Let's build a robot arm that can be controlled by a button.
(1) Necessary parts
1 2 3
CM-5 ADAPTOR-CM5
motor motor motor
AX-12 × 3
× 1 × 1
F1 × 1 × 1 F3 × 4 F9 × 1 F11 × 1 BU × 2
F2 WA × 2
※Nuts, screws, and cables shown below are the same as the actual size. Place and measure the parts
against the below illustration to choose the correct assembly part.
N1 × 36
CABLE-10
× 1
S1 × 48
CABLE-14 × 2
S-B × 2
53
