Notifier NBG-12LO Quick Start Manual

Dual Action NBG-12LOB
NBG-12LO/-12LOB Manual Pull Station
(Listed for Outdoor Applications)
Document 51303 Revision A1 ECN: 01-293 10/15/01
Door ‘keys’ into
backplate at this point
Post
www.PDF-Zoo.com
UL
Product ID
Label
Hole
Post
Hole
Post
Door mated to Backplate
at this stage.
firealarmresources.com
Description

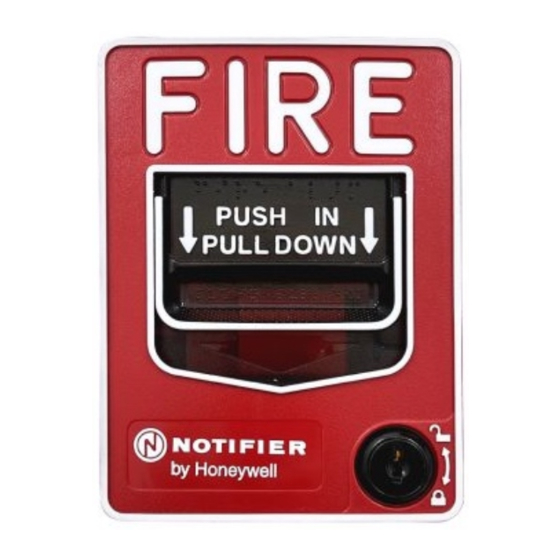

The NBG-12LOB Pull Station is a non-coded manual pull station
which provides a Fire Alarm Control Panel (FACP) with a single
alarm initiating input signal. The pull station is a dual action
model equipped with a key lock reset, an approved outdoor
gasket, and an accompanying outdoor backbox. It is UL listed
and meets the ADA requirement of a 5-lb. maximum pull down
force to activate. Operating instructions are molded into the
handle. Molded terminal numbers can also be found adjacent
to the wiring terminals.
NBG-12LOB
The features of the pull station include Dual-Action operation,
Key-Lock Reset function, Screw Terminal Wire connections,
outdoor-use gasket, an outdoor approved 4-inch backbox, and a
sealed switch with gold-plated contacts.
Note: The NBG-12LOB is applicable with the WP-10 backbox
in retrofit applications. To meet UL requirements for outdoor
use, the NBG-12LO Pull Station must be mounted to the WBB
or WP-10 Backbox to create the NBG-12LOB model.
Switch Contact Rating
FACP Circuit (Terminals 1 & 2):
Rated to .25 Amp at 30 Volts (AC or DC).
Door Attachment and Reattachment
If the door becomes detached, complete the following steps to
reattach the door to the backplate. The door cannot be connected
to the pull station if the unit is mounted to a backbox.
With the door and backplate
aligned and ‘keyed’ together,
slide the holes down onto the
posts.
UL
Product ID
Label
Closing the door slightly
locks the door and
backplate together.

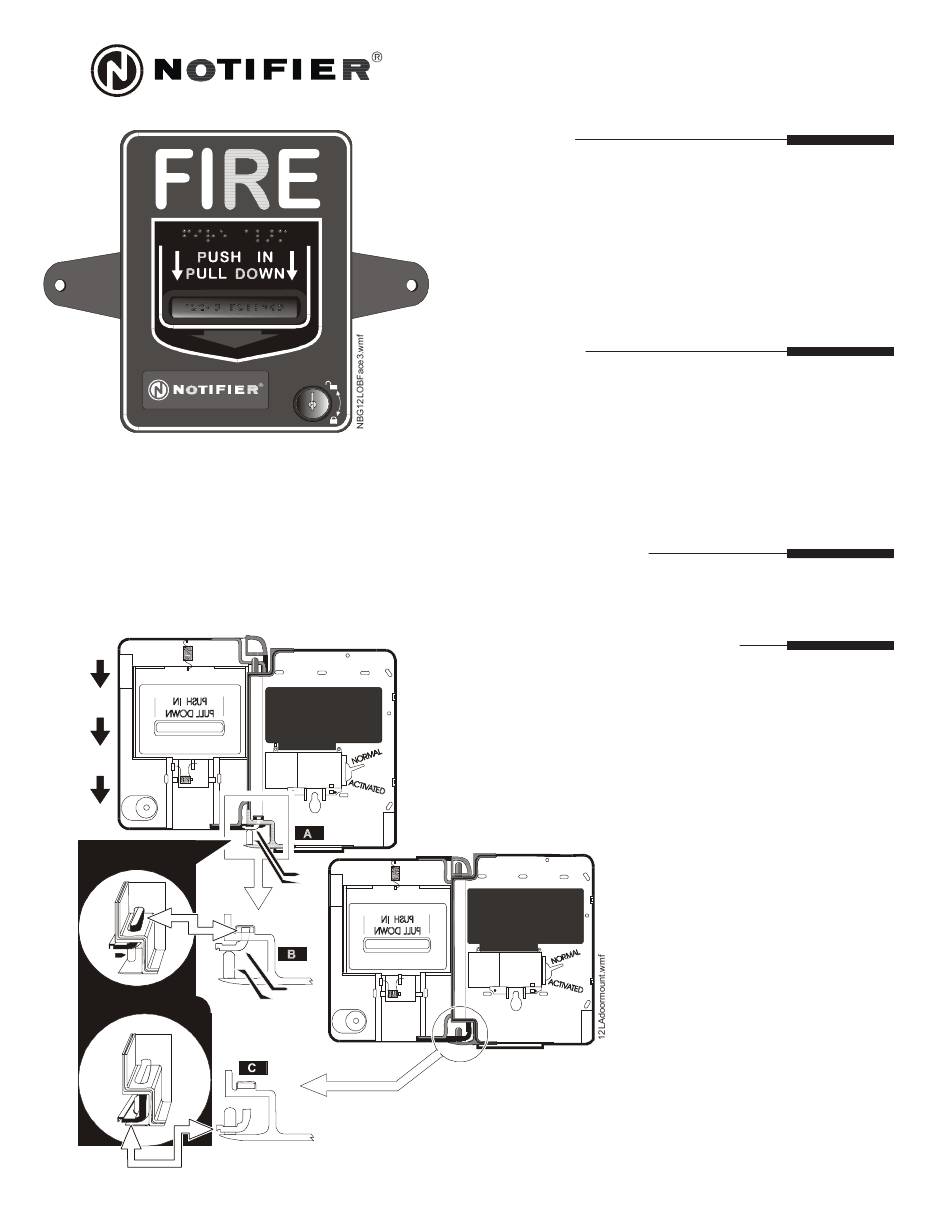

1. Position the door and backplate side
by side in the full open position. (i.e.
180-degrees with respect to each
other.)
2. With the backplate position fixed,
move the door behind the backplate,
as shown in the illustration, part A.
3. Align the hinge posts and holes by
bringing the door up to meet the
backplate, paying particular attention
to the ‘keying’ that occurs when the
door’s post hole is aligned to the
backplate’s hinge post. Refer to the
illustration, part B.
4. With the two pieces aligned and
‘keyed’ together, slide the holes
down onto the posts. Refer to the
illustration, part C.
5. Holding the backplate, close the door
slightly to lock the door and backplate
together.
