EPSON Stylus Photo R1800/R2400

4.2.6.9 Release Holder Assy

1. Remove the ASF Assy. See Section 4.2.4 on page 83.
2. Release the PE Sensor Connector Cable from the five Tabs on the
Release Holder Assy.
3. Remove the three C.B.S. M3 x 6 screws that secure the Release Holder
Assy.
4. Remove the three lower Tabs of the Release Holder Assy from the Main
Frame with a flat-blade screwdriver, and remove the Release Holder Assy
upwards.
Rear side
3
Release Holder Assy
Front side
Upper Tabs

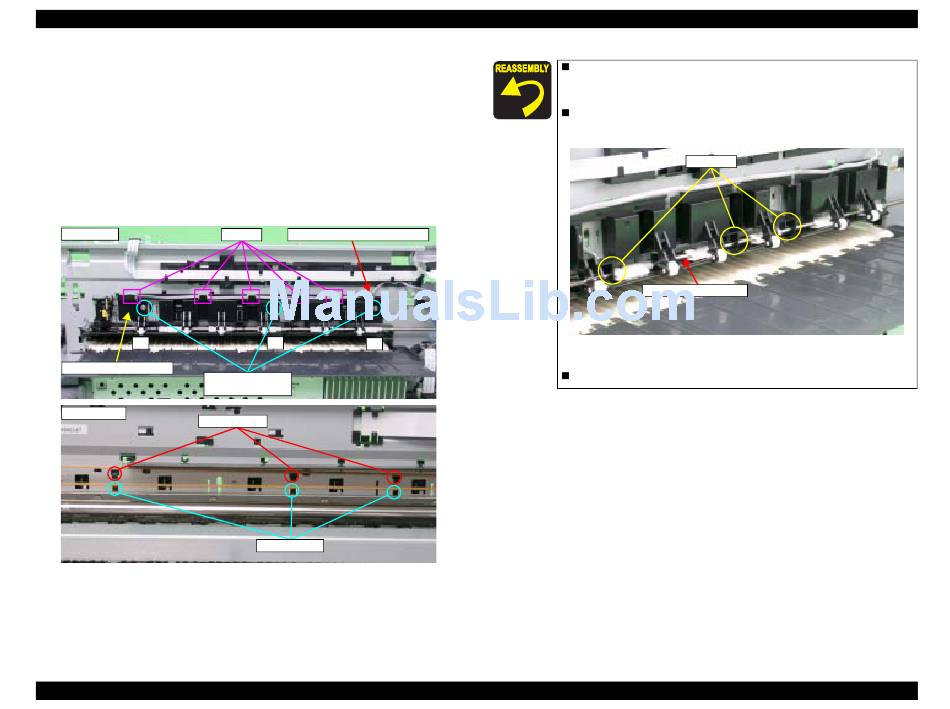

Figure 4-105. Removing the Release Holder Assy
Disassembly And Assembly
Tabs PE Sensor Connector Cable
2
1
2) C.B.S. 3x6
(8±1 kgf.cm)
Lower Tabs
Align the three Upper Tabs on the Release Holder Assy
with the positioning holes on the Main Frame.
4-105.
Fit the FLAG Release Shaft by the Bushings on the
Release Holder Assy.
Figure 4-106. Reinstalling the Release Holder Assy
Tighten the screws in the order shown in
Disassembly
Bushings
FLAG Release Shaft
Figure 4-105.
Revision B
See Figure
112
