EPSON Stylus Photo R1800/R2400
Occurrence
Phenomenon Detail
Timing
During printing After starting to print, ink is not
ejected and paper stops
midway.
Ink is not ejected from most
nozzles.
Troubleshooting
Table 3-12. Troubleshooting of Fatal Error
Faulty Part/
Part Name

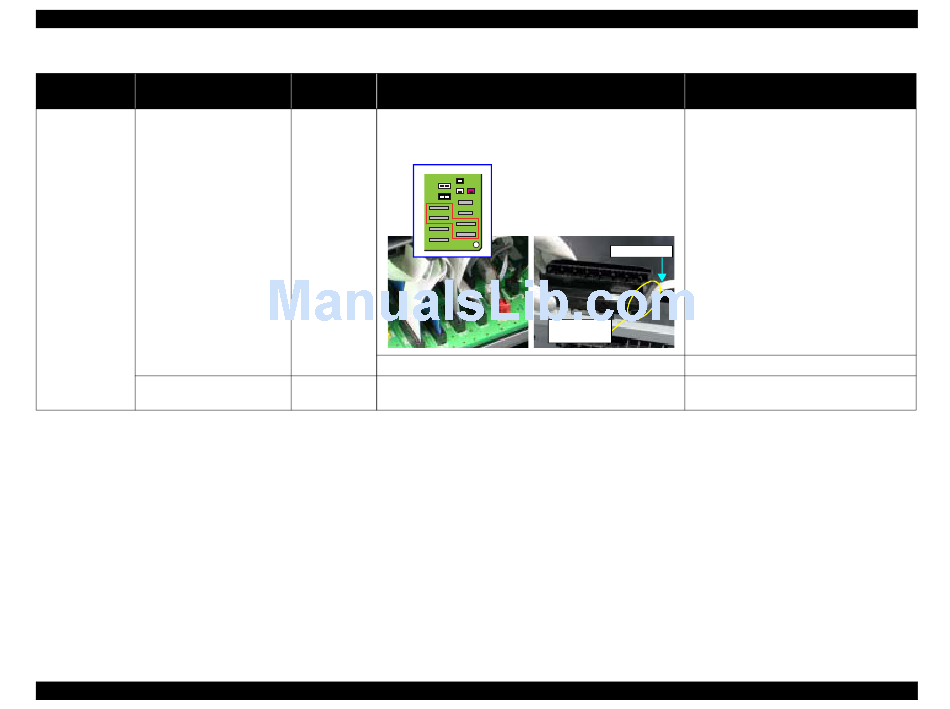

Head FFC 1. Check that the Head FFC is securely connected to the
Print Head Connector and Main Board Connectors CN10,
CN12, CN13, and CN14.
2. Check the Head FFC for damages.
Print Head 1. Check for occurrence of Head Hot.
Overview
Check Point
Head FFC
Print Head
Connector
Revision B
Remedy
1. Connect the Head FFC to the Print Head
Connector and Main Board Connectors
CN10, CN12, CN13, and CN14.
2. Replace the Head FFC with a new one.
1. Replace the Print Head with a new one.
58
