EPSON Stylus Photo R1800/R2400

7.1 Connector Summary

This section shows the connections between the main components of the
printer.

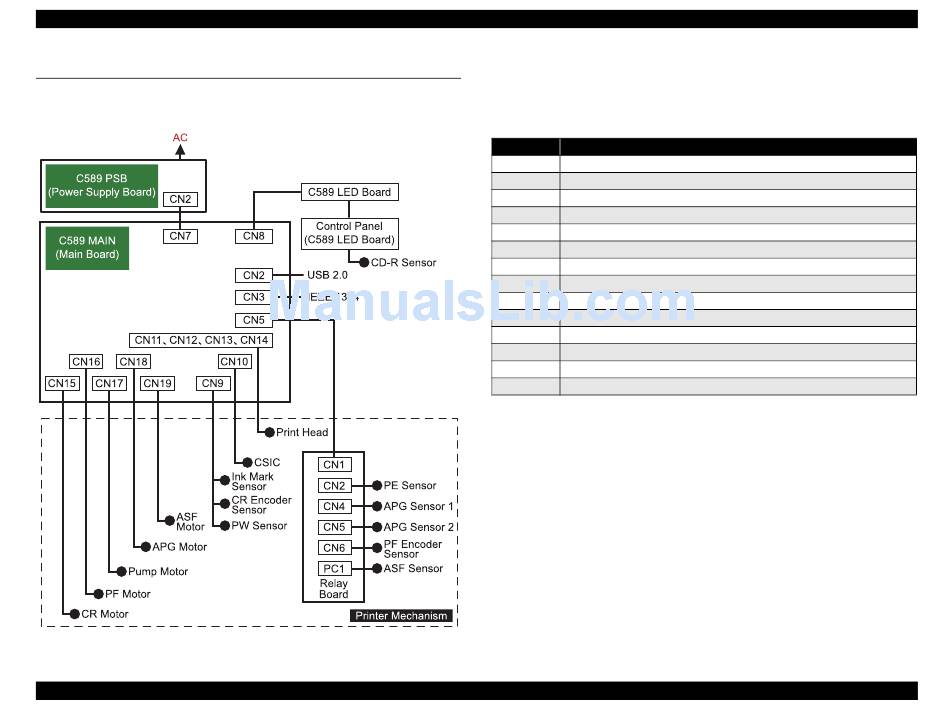

Table 7-1. Connection of the Major Components
Appendix

7.1.1 Connectors and Pin Layouts

See the following tables for the connector summary for the C589 MAIN Board
and each connector's pin alignment.
Table 7-1. Connector Summary for C589 MAIN
Connector
CN5 Sensor 1 (PE Sensor, APG Sensor, PF Encoder Sensor, ASF Sensor)
CN7 Power Supply
CN8 LED Board
CN9 Sensor 2 (Ink Mark Sensor, CR Encoder Sensor, PW Sensor)
CN10 CSIC
CN11 Print Head 1-2 (including head temperature)
CN12 Print Head 1-1
CN13 Print Head 2-2
CN14 Print Head 2-1 (including thermistor)
CN15 CR Motor
CN16 PF Motor
CN17 Pump Motor
CN18 APG Motor
CN19 ASF Motor
Connector Summary
Revision B
Function
182
