EPSON Stylus Photo R1800/R2400
Occurrence
Phenomenon Detail
Timing
At power-on After the power-on sequence
has started, the LED turns off
and the printer does not
operate.
At operation Operation at power-on is
normal, but the error appears
when the print job is sent to
the printer.
Stylus Photo R2400
Table 8-6. Troubleshooting of Communication Error
Faulty Part/
Part Name

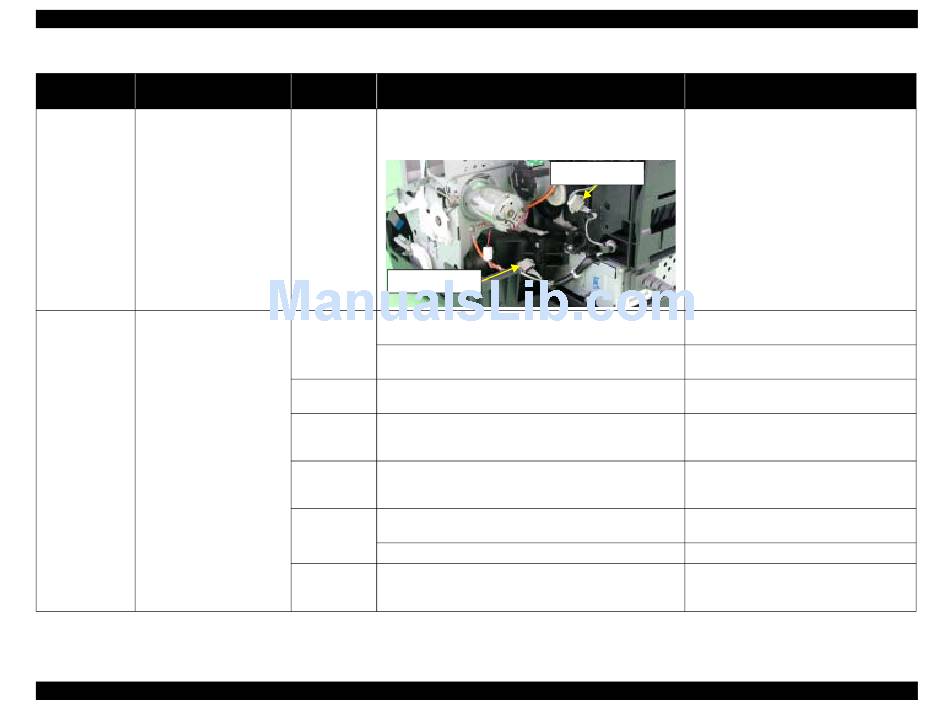

Main Board 1. Check that the Relay connector of the ASF Motor and the
Relay connector of the Pump Motor are not connected to
the wrong connector causing a short circuit.
Relay Connector of
the Pump Motor
Interface cable 1. Check that the Interface cable is connected between the
PC and printer.
2. Check the Interface cable for breaking.
EPSON 1. When using USB, check that the EPSON USB driver has
USB driver been installed on the PC.
USB 1. Check that the PC and printer are connected via the USB
hub.
IEEE1394 1. Check that the same code as the IEEE1394 QR label code
is saved in the EEPROM address (from BA-H to BE-H).
Printer Driver 1. Check that the printer driver for Stylus Photo R2400 has
already been installed.
2. Check that the connected printer is Stylus Photo R2400.
Main Board 1. Check that a wrong model name has not been input to the
EEPROM address (E0<H<) on the Main Board.
Overview
Check Point
Relay Connector of
the ASF Motor
Revision B
Remedy
1. Connect the Relay Connector of the ASF
Motor and the Relay Connector of the
Pump Motor correctly, and replace the
Main Board with a new one.
1. Connect the Interface cable to the PC and
printer.
2. Replace the Interface cable with a new
one.
1. Install the EPSON USB driver.
1. Enter the USB serial No. indicated on the
product nameplate.
Refer to Chapter 5 "Adjustment".
1. Input the code given as the IEEE1394 QR
label code.
Refer to Chapter 5 "Adjustment".
1. Install the printer driver for Stylus Photo
R2400.
2. Connect the Stylus Photo R2400 printer.
1. Using the Adjustment Program, enter the
correct model name (save 01 into E0<H>).
Refer to Chapter 5"Adjustment".
