EPSON Stylus Photo R1800/R2400

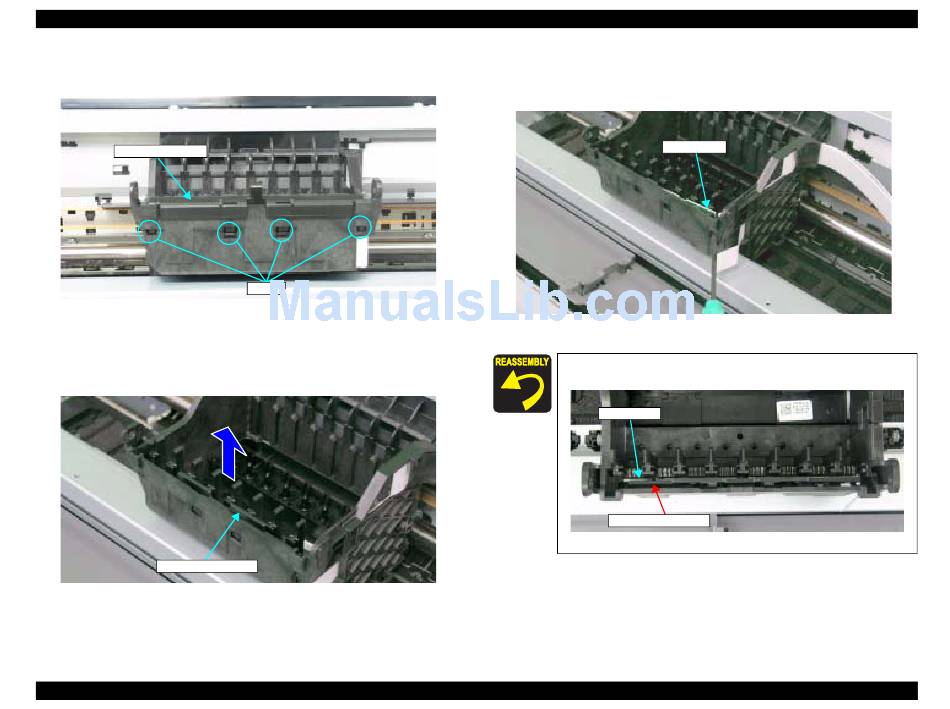

5. Release the CSIC Board Cover from the four Tabs with a flat-blade
screwdriver, and remove the CSIC Board Cover from the Carriage Unit.
CSIC Board Cover
Figure 4-79. Removing the CSIC Board Cover
6. Disconnect the Sensor FFC from the CSIC Board Connector.
in Section 4.2.6.4 on page 101.
7. Hold the CSIC Board Spacer with your fingers and remove upwards.
CSIC Board Spacer
Figure 4-80. Removing the CSIC Board Spacer
Disassembly And Assembly
Tabs
See Step 26
8. Push up the CSIC Board with a flat-blade screwdriver from the notch on
the right side of the Carriage Unit, and remove the CSIC Board from the
Carriage Unit.
Figure 4-81. Removing CSIC Board
The CSIC Board Spacer must be installed at the position
indicated in the figure below.
CSIC Board
CSIC Board Spacer
Figure 4-82. Reinstalling the CSIC Board Spacer
Disassembly
Revision B
CSIC Board
104
