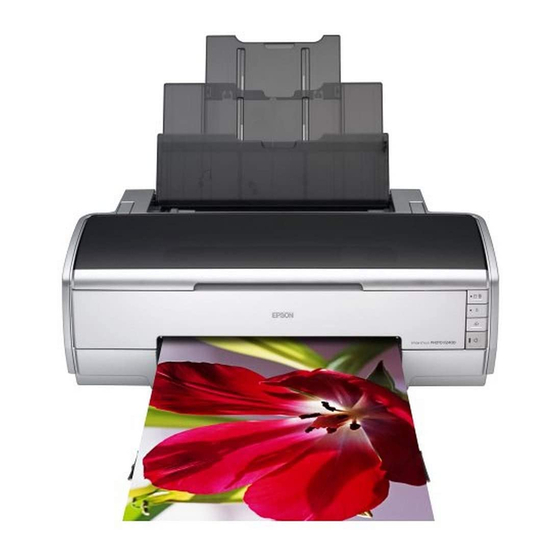

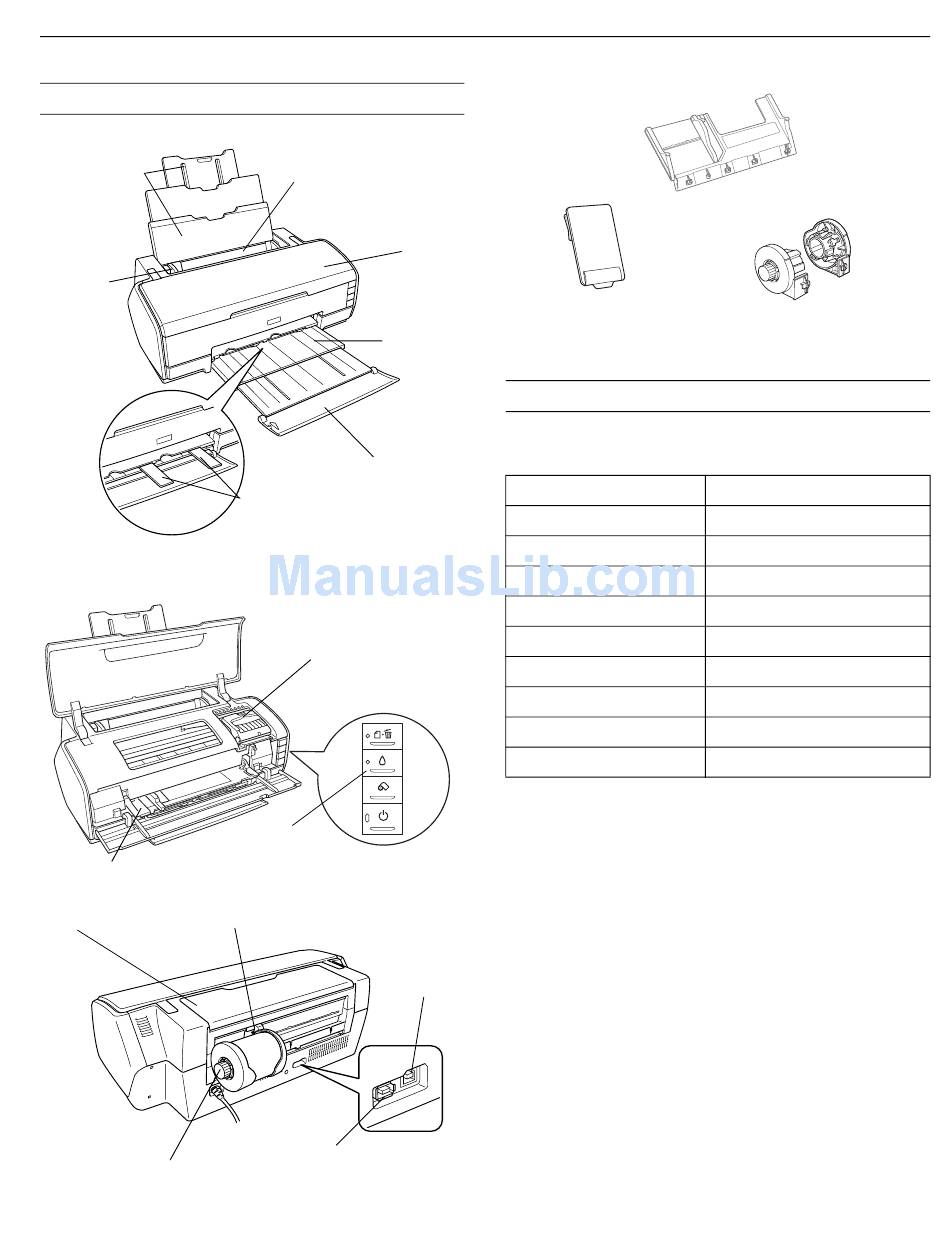

Printer Parts

Paper support
and extensions
Left edge
guide
Manual Feed
Paper support
Roll paper edge guide
(closed)
Roll paper holder
Sheet feeder
Printer
cover
Output tray
Output tray
extension
Roll paper
guides
Ink cartridge
holder (in home
position)
Control panel
USB
port
IEEE 1394
(FireWire) port
Matte sheet
support
Accessories
Ink Cartridges
Cartridge
Light Light Black
Light Magenta
Light Cyan
Light Black
Photo Black
Matte Black
Cyan
Magenta
Yellow
Caution: To ensure good results, use genuine Epson ink cartridges
and do not refill them. Other products may cause damage to your
printer not covered by Epson's warranty.
2/05
Epson Stylus Photo R2400
Single sheet guide
Roll paper holders
Part number
T059920
T059620
T059520
T059720
T059120
T059820
T059220
T059320
T059420
Epson Stylus Photo R2400
- 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stylus Photo R2400 and is the answer not in the manual?

Questions and answers

Related Manuals for Epson Stylus Photo R2400

Summary of Contents for Epson Stylus Photo R2400

  • Page 1: Printer Parts

    Matte Black position) Cyan Magenta Yellow Caution: To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson’s warranty. port 2/05 Epson Stylus Photo R2400...
  • Page 2 S041727, S041808 paper instructions to select the Type or Media Type setting. If you load paper not listed as a setting in your printer software, you may S041464 see smears, roller marks, misting, or other problems. ** This matte paper requires the matte sheet support when loading S041465 multiple sheets 11 inches wide or wider;...

  • Page 3: Printer Specifications

    Power consumption Approx. 18 W (ISO10561 Letter Pattern) Approx. 1 W in Sleep mode * Check the label on the back of the printer for its voltage. Environmental Temperature Humidity * Stored in a shipping container ** Without condensation Ink Cartridges...
  • Page 4 17 lb (64 g/m²) to 24 lb (90 g/m²) (plain bond paper) See page 2 for a list of special paper distributed by Epson. Caution: Poor quality paper may reduce print quality and cause paper jams or other problems. If you encounter problems, switch to a higher grade of paper.

  • Page 5: Control Panel

    3. Hold down the ) paper button, then press and release the P power button. Continue to hold down the ) paper button until the P power light flashes. 4. A test page prints the printer’s ROM version number and a nozzle check pattern. paper button to ❏...

  • Page 6: Ink Cartridge Precautions

    Epson Stylus Photo R2400 Caution: Don’t open Epson Status Monitor or respond to any ink messages when your printer is printing. This may cause your printer to pause and leave an uneven surface on your printout. If your ink is running low, wait until printing finishes before checking ink levels or attempting to replace a cartridge.

  • Page 7: Loading Paper In The Sheet Feeder

    2. Push in the bottom of the output tray. The tray opens and moves up. 3. Pull out the output tray extension. 4. Place your paper in the printer and slide it against the right side of the sheet feeder. power light...

  • Page 8: Loading Multiple Sheets Of Matte Paper

    Do not adjust the guide during this movement or during printing. Loading Special Paper in the Sheet Feeder You can load these Epson ink jet papers in the sheet feeder as follows: Paper type Epson Enhanced Matte Paper*...

  • Page 9: Loading Special Paper In The Single Sheet Guide

    Then insert the tabs on the top of the guide into the slot beneath the printer cover. 4. Turn on the printer (the printer must be on to load paper in the single sheet guide correctly). Epson Stylus Photo R2400 5.

  • Page 10: Loading Roll Paper

    Epson Stylus Photo R2400 8. Open the printer cover and look down into the printer to make sure the paper is straight; if not, press the z roll paper button for 3 seconds to back the paper out. Press the ) paper button to clear the paper out error, then load the paper again.

  • Page 11: Loading Thick Media In The Front Path

    You can load media 1.3 mm thick into the front path, in sizes from 8 × 10 inches to A3+. Note: Since the media feeds through the printer from the front to the rear, make sure there is enough space behind the printer for the media to move completely through the printer.

  • Page 12: Printing Borderless Cut Sheets

    **These papers must be loaded in the single sheet guide. See page 9. Caution: Don’t open Epson Status Monitor, pause printing, or respond to any ink messages when your printer is printing. This may cause your printer to pause and leave an uneven surface on your printout.

  • Page 13: Cleaning The Print Head

    Caution: When you don’t turn on your printer for a long time, print quality can decline, so turn it on at least once a month to maintain good print quality.

  • Page 14: Running The Head Cleaning Utility

    Automatically Checking and Cleaning the Print Head The Auto Nozzle Check and Cleaning utility prints a nozzle check pattern that the printer then reads to see if you have any clogged nozzles. If cleaning is needed, the printer automatically cleans the print head.

  • Page 15: Manually Aligning The Print Head

    Mac OS X: Open the EPSON Printer Utility select 4. Click the You see a screen like this as the printer prints an alignment check pattern: 5. On the check page, select the box in each pattern that has Print Head the least noticeable lines in it.

  • Page 16: Related Documentation

    Keep the paper support and printer cover closed as you clean the printer. 4. If you need to clean ink out of the inside of the printer, use a soft cloth to clean only the black plastic area shown below:...
