8W - 80 - 34

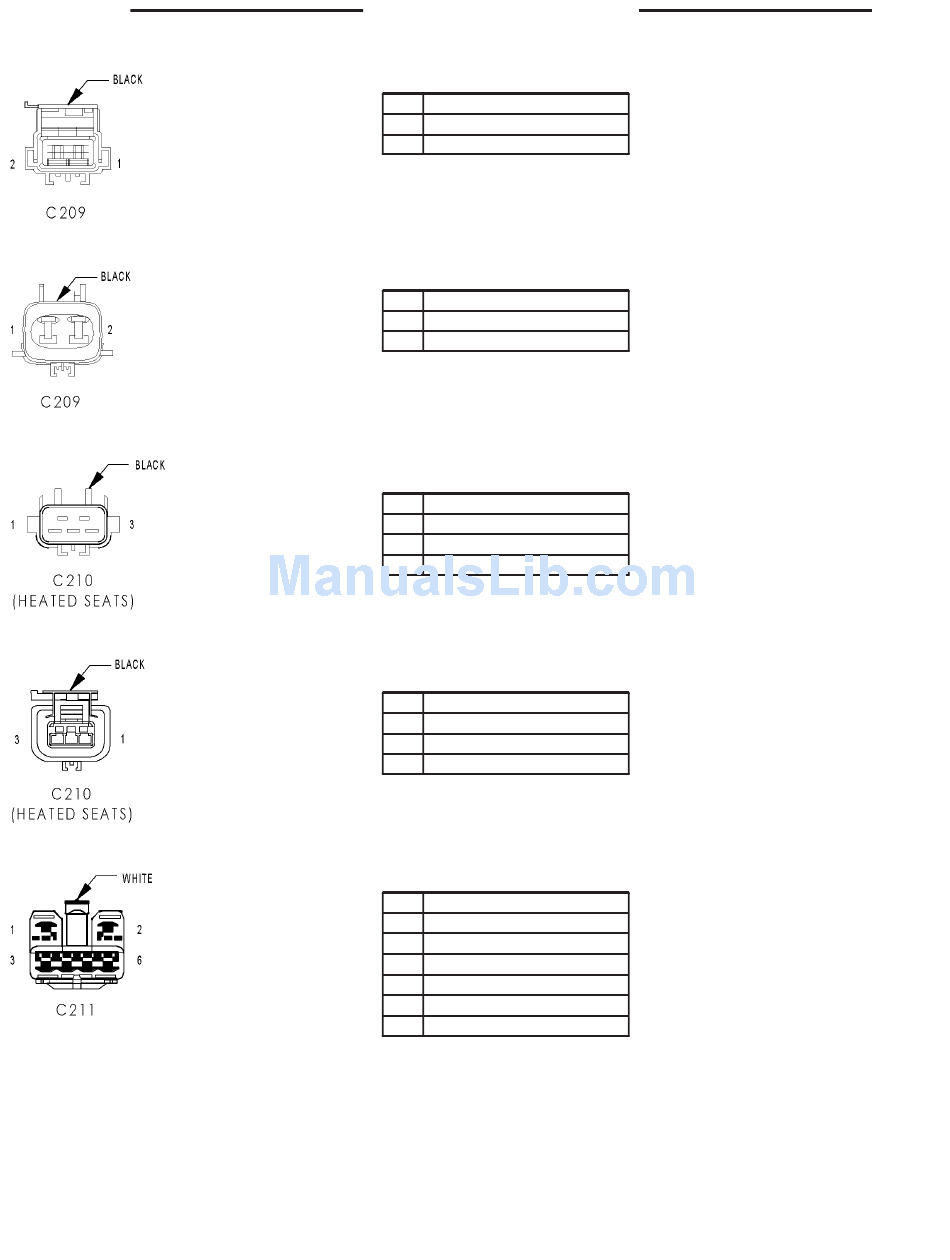

8W-80 CONNECTOR PIN-OUTS
C209 - BLACK (INSTRUMENT PANEL SIDE)
CAV
CIRCUIT
1
C1 14DG
2
C7 14BK/TN
C209 - BLACK (HEATER JUMPER SIDE)
CAV
CIRCUIT
1
C1 14DG
2
C7 14BK/TN
C210 (HEATED SEATS) - BLACK (HEATED SEAT
SIDE)
CAV
CIRCUIT
1
-
2
Z122 18BK
3
F98 18RD/WT
C210 (HEATED SEATS) - BLACK (INSTRUMENT
PANEL SIDE)
CAV
CIRCUIT
1
-
2
Z122 16BK
3
F98 18RD/WT
C211 - WHITE (DOME LAMP SIDE)
CAV
CIRCUIT
1
Q43 20VT
2
Q44 20BR
3
Q42 20LB
4
Q41 20WT
5
Z1 18BK
6
F10 18YL/RD
PT
