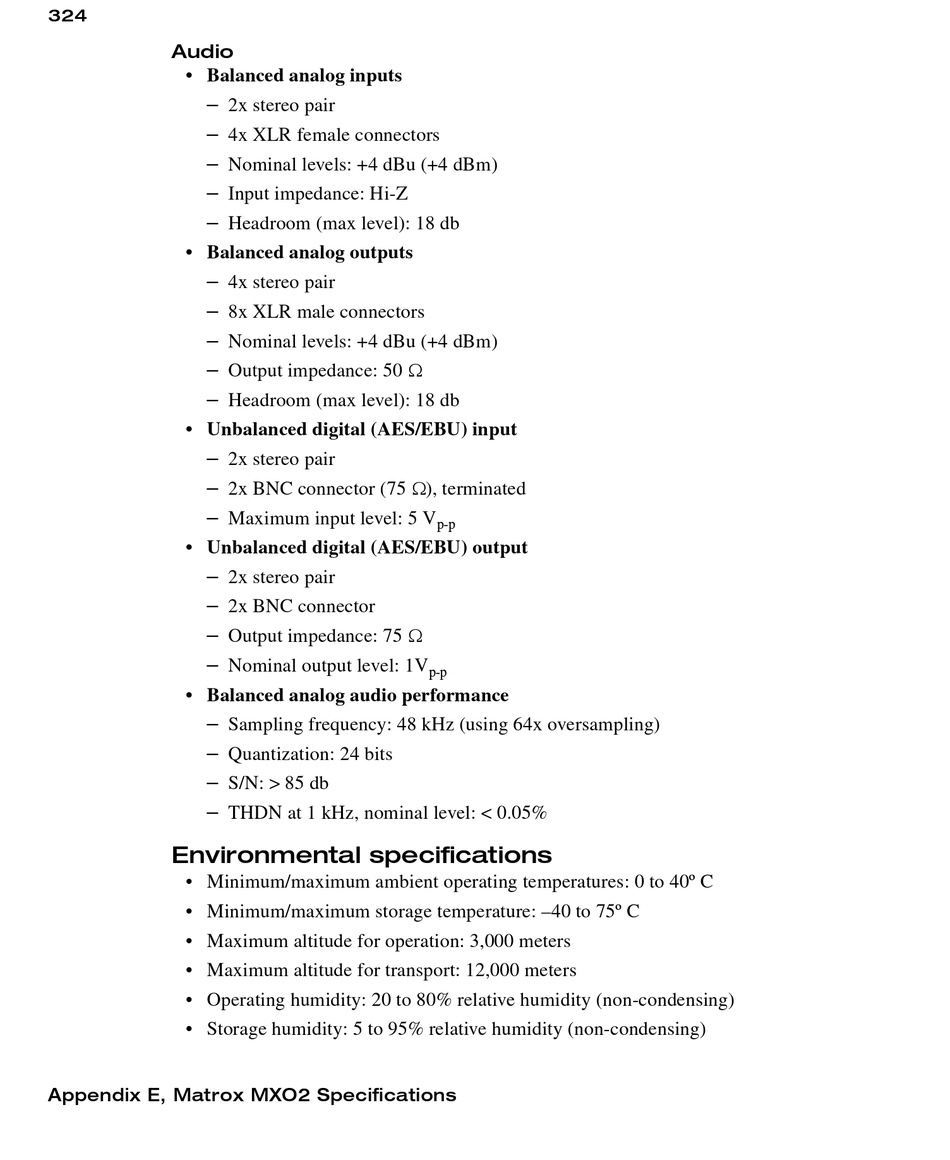

Audio
• Balanced analog inputs
$
$
$
$
$
• Balanced analog outputs
$
$
$
$
$
• Unbalanced digital (AES/EBU) input
$
$
$
• Unbalanced digital (AES/EBU) output
$
$
$
$
• Balanced analog audio performance
$
$
$
$

Environmental specifications

• Minimum/maximum ambient operating temperatures: 0 to 40º C
• Minimum/maximum storage temperature: –40 to 75º C
• Maximum altitude for operation: 3,000 meters
• Maximum altitude for transport: 12,000 meters
• Operating humidity: 20 to 80% relative humidity (non-condensing)
• Storage humidity: 5 to 95% relative humidity (non-condensing)
Appendix E, Matrox MXO2 Specifications
2x stereo pair
4x XLR female connectors
Nominal levels: +4 dBu (+4 dBm)
Input impedance: Hi-Z
Headroom (max level): 18 db
4x stereo pair
8x XLR male connectors
Nominal levels: +4 dBu (+4 dBm)
Output impedance: 50 
Headroom (max level): 18 db
2x stereo pair
2x BNC connector (75  ), terminated
Maximum input level: 5 V
2x stereo pair
2x BNC connector
Output impedance: 75 
Nominal output level: 1V
Sampling frequency: 48 kHz (using 64x oversampling)
Quantization: 24 bits
S/N: > 85 db
THDN at 1 kHz, nominal level: < 0.05%
p-p
p-p
