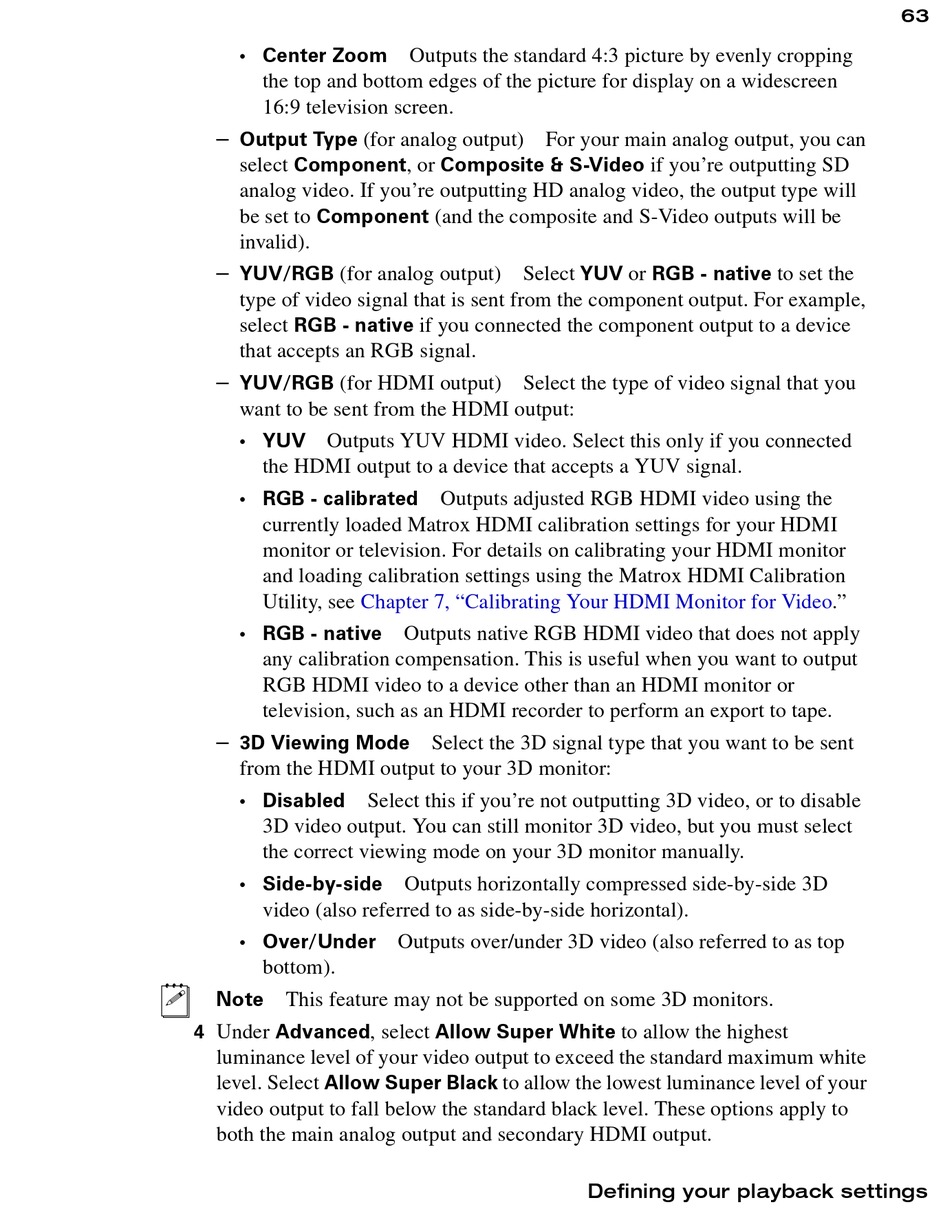

Matrox MXO2 Installation And User Manual page 83

Center Zoom
•
the top and bottom edges of the picture for display on a widescreen
16:9 television screen.
Output Type
$
select Component , or Composite & S-Video if you're outputting SD
analog video. If you're outputting HD analog video, the output type will
be set to Component (and the composite and S-Video outputs will be
invalid).
YUV/RGB
$
type of video signal that is sent from the component output. For example,
select RGB - native if you connected the component output to a device
that accepts an RGB signal.
YUV/RGB
$
want to be sent from the HDMI output:
YUV Outputs YUV HDMI video. Select this only if you connected
•
the HDMI output to a device that accepts a YUV signal.
RGB - calibrated
•
currently loaded Matrox HDMI calibration settings for your HDMI
monitor or television. For details on calibrating your HDMI monitor
and loading calibration settings using the Matrox HDMI Calibration
Utility, see
RGB - native
•
any calibration compensation. This is useful when you want to output
RGB HDMI video to a device other than an HDMI monitor or
television, such as an HDMI recorder to perform an export to tape.
3D Viewing Mode
$
from the HDMI output to your 3D monitor:
Disabled
•
3D video output. You can still monitor 3D video, but you must select
the correct viewing mode on your 3D monitor manually.
Side-by-side
•
video (also referred to as side-by-side horizontal).
Over/Under
•
bottom).
¦ Note
This feature may not be supported on some 3D monitors.
Under Advanced , select Allow Super White to allow the highest
4
luminance level of your video output to exceed the standard maximum white
level. Select Allow Super Black to allow the lowest luminance level of your
video output to fall below the standard black level. These options apply to
both the main analog output and secondary HDMI output.
Outputs the standard 4:3 picture by evenly cropping
(for analog output) For your main analog output, you can
(for analog output) Select YUV or RGB - native to set the
(for HDMI output) Select the type of video signal that you
Outputs adjusted RGB HDMI video using the
Chapter 7, "Calibrating Your HDMI Monitor for
Outputs native RGB HDMI video that does not apply
Select the 3D signal type that you want to be sent
Select this if you're not outputting 3D video, or to disable
Outputs horizontally compressed side-by-side 3D
Outputs over/under 3D video (also referred to as top
Defining your playback settings
63
Video."
